Toyota CAMRY 前转向灯 — Figure 8103

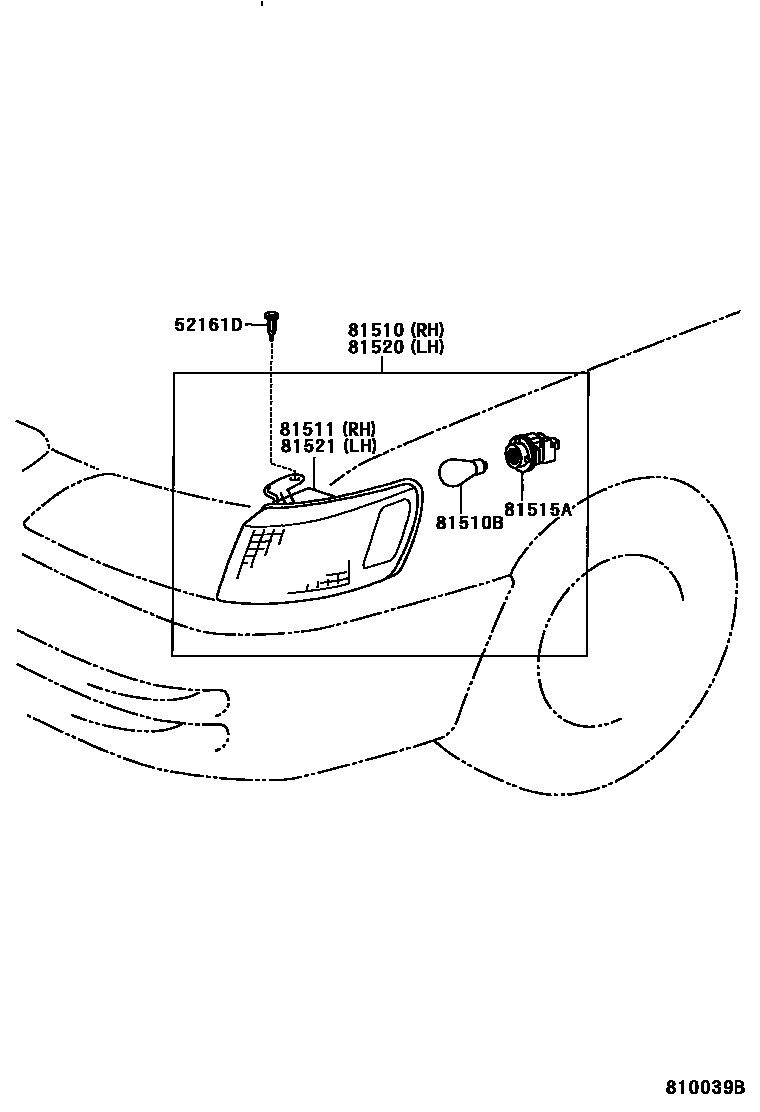

Toyota CAMRY EPC diagram 8103, 前转向灯, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161D | Front turn signal light insert | 52161-02020 · 52161-16010 |
| 81510 | Right front turn signal lamp assembly | 81510-AA010 · 81510-AA020 |
| 81510B | Bulb (for front turn signal lamp) | 90084-98027 · 90084-98034 · 90084-98062 |
| 81511 | Right front turn signal lamp cover | 81511-AA010 · 81511-AA020 |
| 81515A | Front turn signal light plug assembly | 81515-AA010 · 90069-81003 |
| 81520 | Left front turn signal lamp assembly | 81520-AA010 · 81520-AA020 |
| 81521 | Left front turn signal lamp cover | 81521-AA010 · 81521-AA020 |
