Toyota CAMRY Headlamp — Figure 8101

Toyota CAMRY EPC diagram 8101, Headlamp, with 2 images and 9 PNC and OE references.

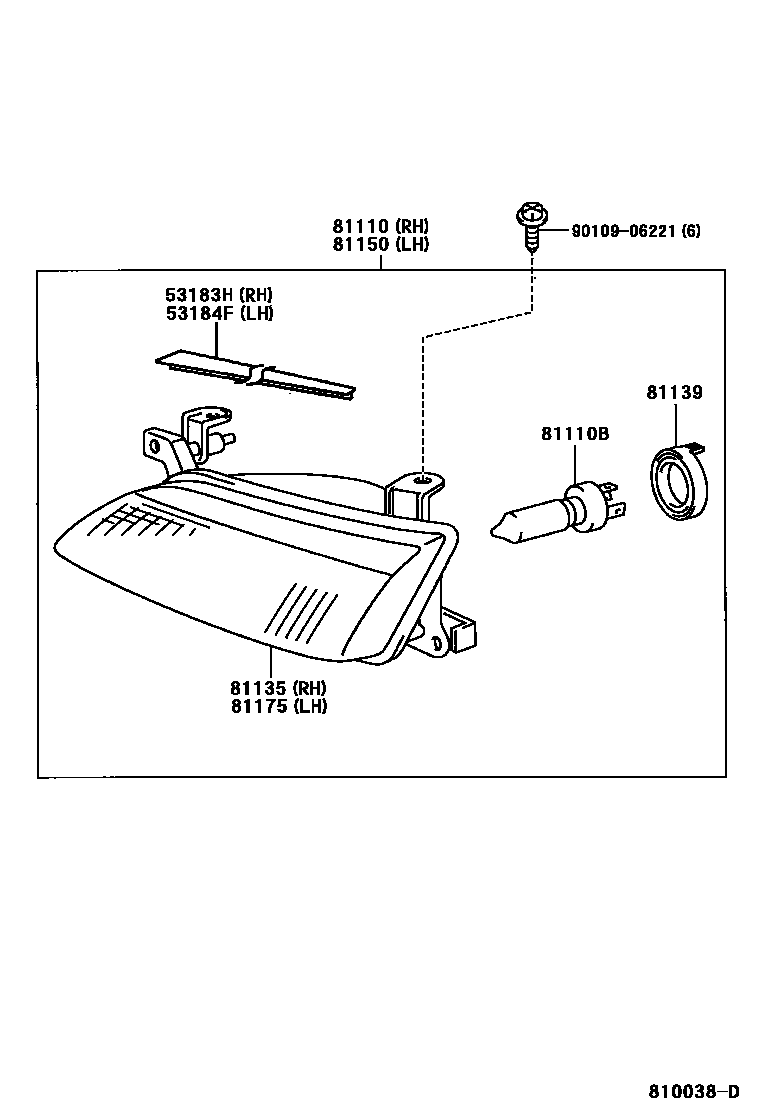

Toyota CAMRY Headlamp EPC diagram — 810038D
Headlamp — 810038D (199607 – 199908)

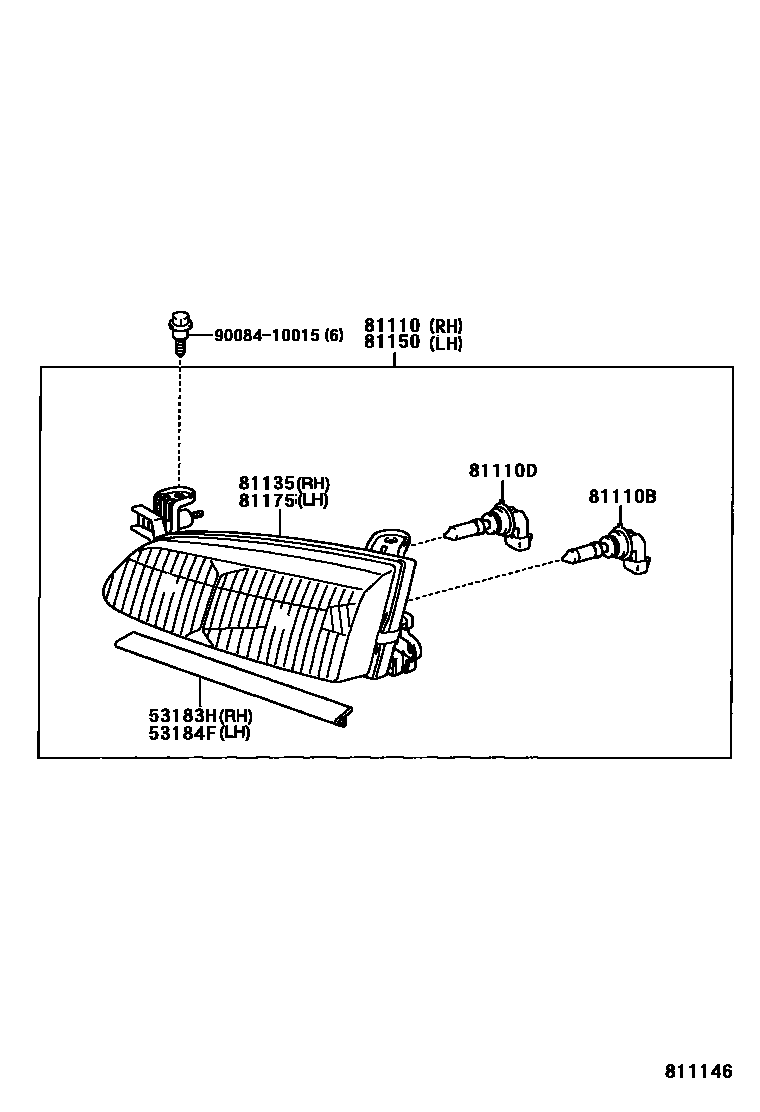

Toyota CAMRY Headlamp EPC diagram — 811146
Headlamp — 811146 (199908 – 999999)

PNC and OE references

PNCPart nameOE numbers
53183HRight headlight cover seal53183-33060
53184FLeft headlight cover seal53184-33060
81110Right headlight assembly81110-33290 · 81110-33360 · 81110-AA010 · 81110-AA020
81110BBulb (for headlight No. 1)90080-81040 · 90084-98033 · 90981-22004
81110DBulb (for headlight No. 2)90080-81041
81135Right headlight assembly81130-33290 · 81130-33360 · 81130-AA010 · 81130-AA020
81139Headlight lamp holder cover81139-AA010 · 90075-65012
81150Left headlight assembly81150-33280 · 81150-33350 · 81150-AA010 · 81150-AA020
81175Left headlight assembly81170-33280 · 81170-33350 · 81170-AA010 · 81170-AA020
