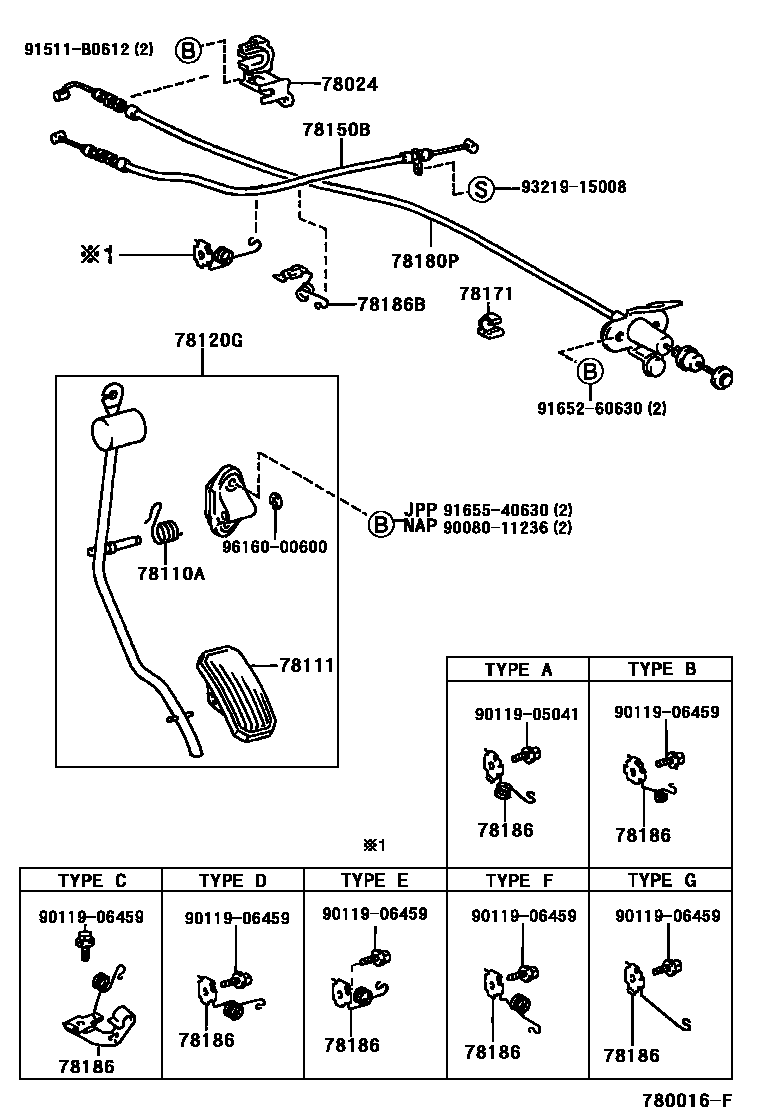

Toyota CAMRY accelerator pedal connecting rod — Figure 7801
Toyota CAMRY EPC diagram 7801, accelerator pedal connecting rod, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-06030 · 78024-33030 |
| 78110A | Spring (for accelerator pedal lever) | 90080-50168 · 90080-50169 |
| 78111 | accelerator pedal | 78111-06010 |
| 78120G | Accelerator pedal lever assembly | 78120-06010 · 78120-06020 |
| 78150B | Accelerator pedal automatic transmission cable assembly | 78150-06010 · 78150-06020 · 78150-06030 · 78150-33070 · 78150-33080 · 78150-33110 |
| 78171 | No. 2 accelerator pedal control lever right bracket | 78171-33010 |
| 78180P | Accelerator pedal control cable assembly | 78180-06100 · 78180-06110 · 78180-06120 · 78180-06130 · 78180-06150 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-33030 · 78186-33040 · 78186-33050 · 78186-33060 · 78186-33090 · 78186-33110 · 78186-33120 |
| 78186B | No. 2 accelerator pedal control cable bracket | 78186-33080 |
