Toyota CAMRY 燃油箱和燃油管 — Figure 7701

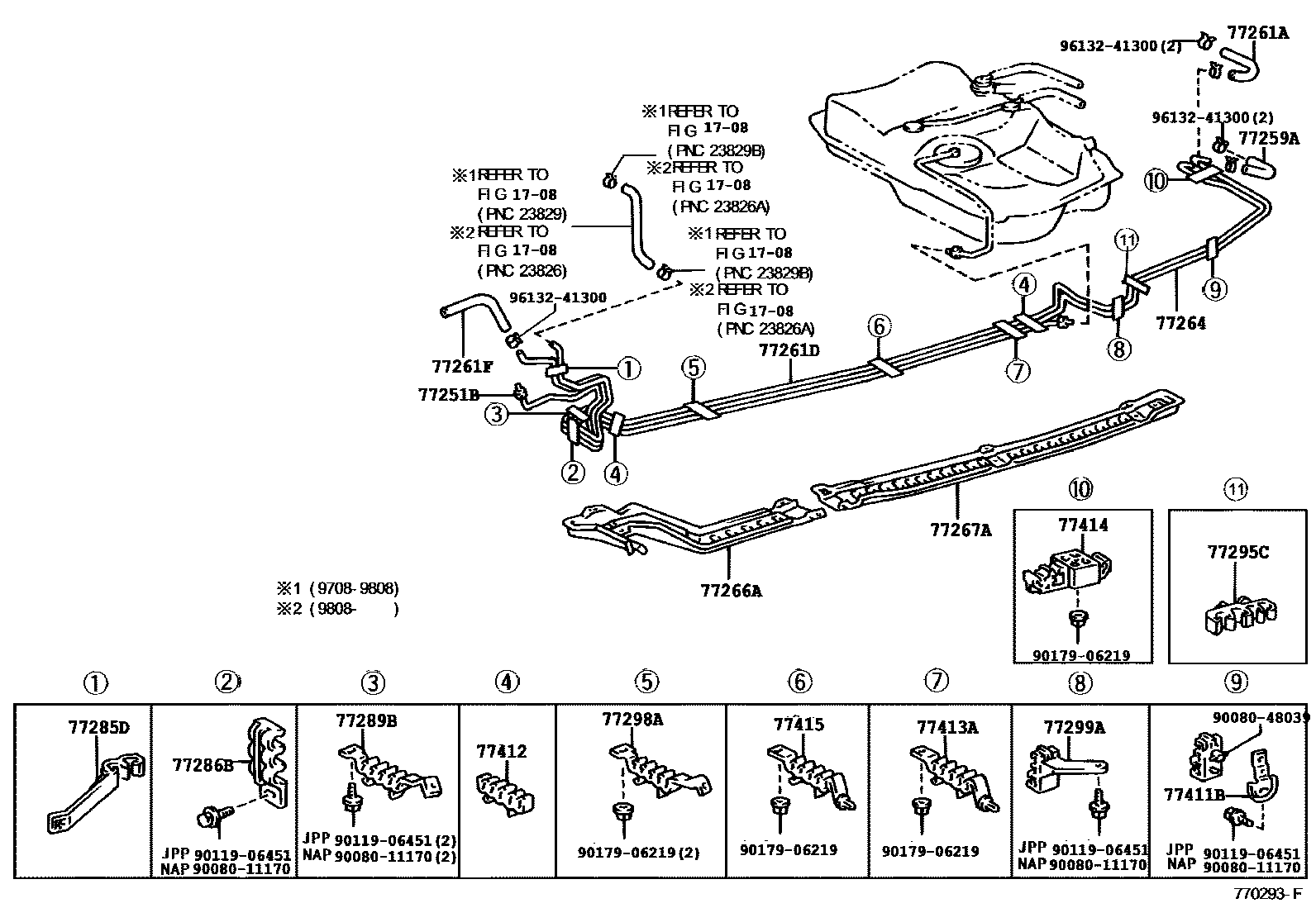

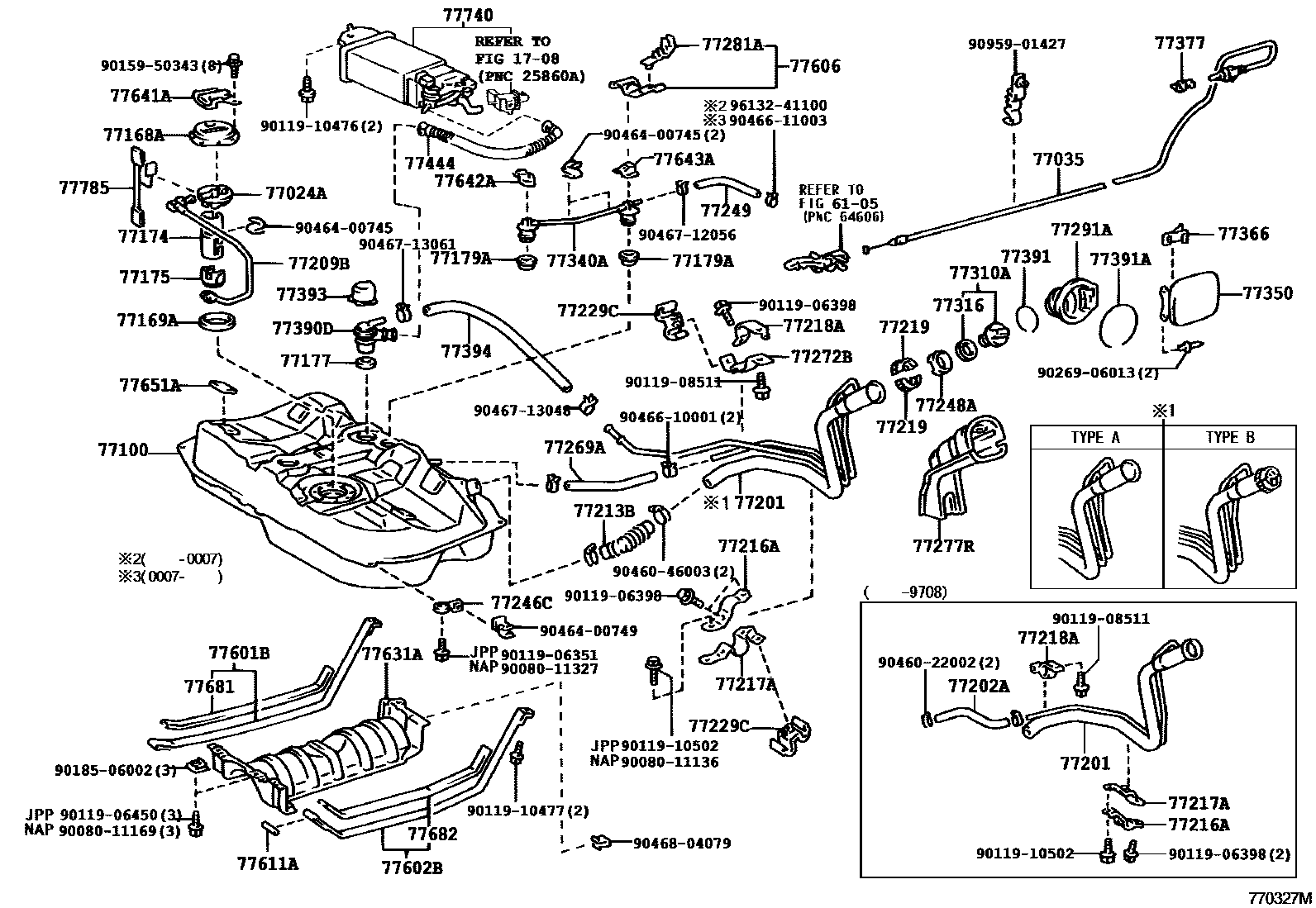

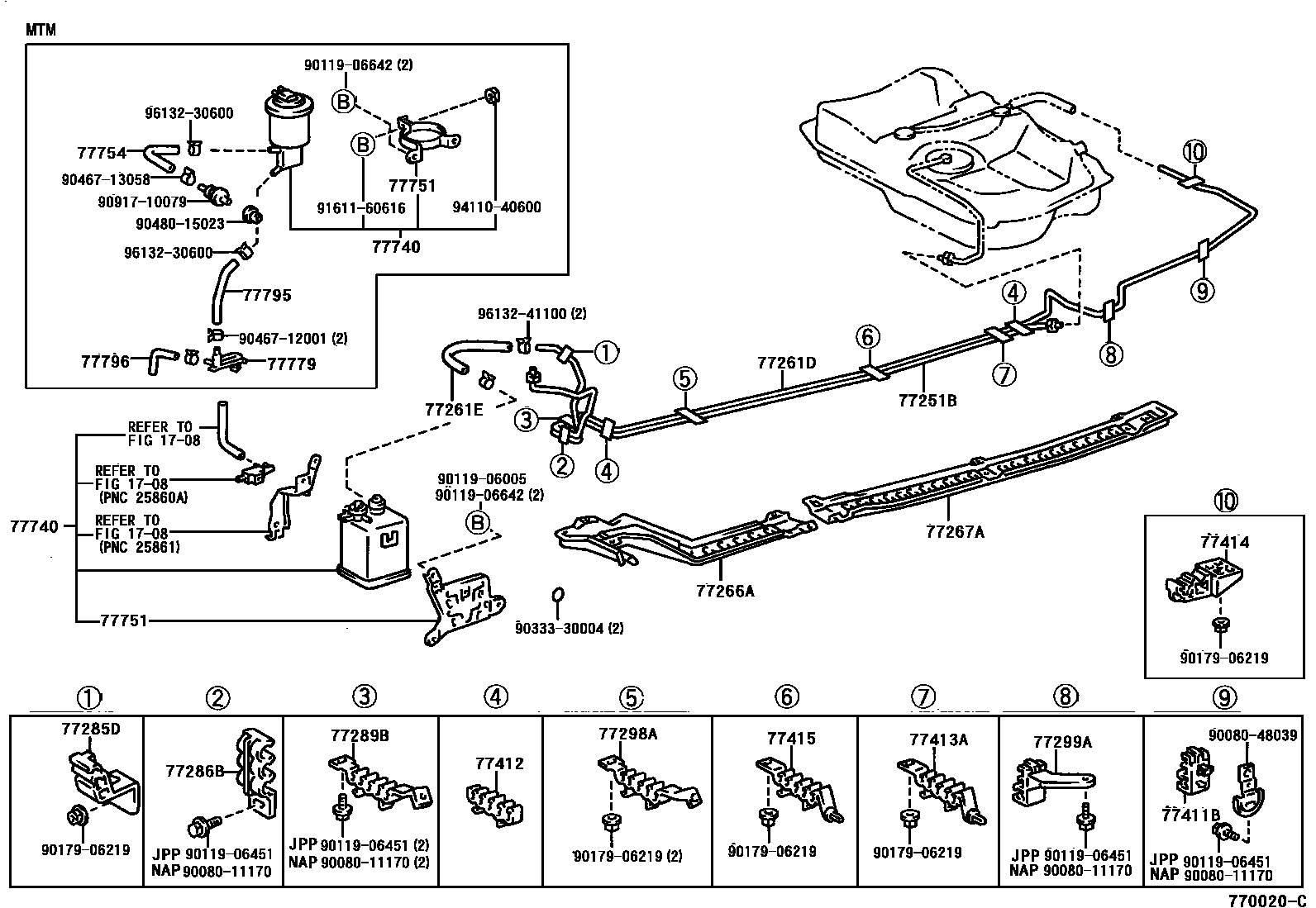

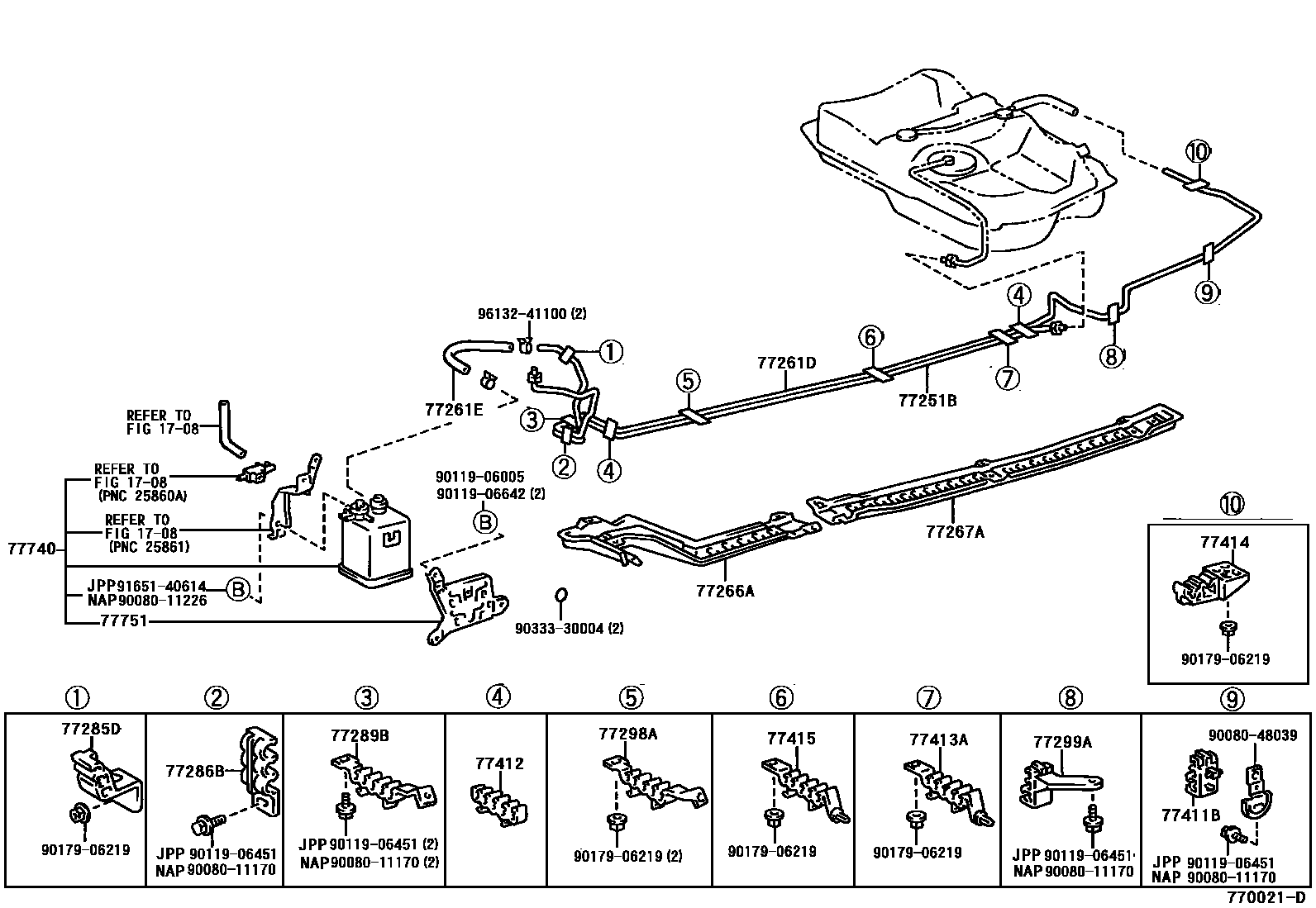

Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 4 images and 76 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77024A | Fuel absorber sub-assembly | 77024-06010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-AA020 |
| 77100 | fuel tank assembly | 77001-06031 · 77001-06040 · 77001-06050 · 77001-06902 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-33030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33010 |
| 77174 | No. 1 oil suction pipe bracket | 77174-06010 |
| 77175 | No. 2 oil suction pipe bracket | 77175-06010 |
| 77177 | Check valve gasket | 77177-33010 |
| 77179A | fuel tank breather gasket | 77179-33010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-06020 · 77201-06021 · 77201-06900 · 77201-33020 · 77201-33080 |
| 77202A | No. 1 fuel hose (for breather pipe) | 90080-44079 · 95312-13024 |
| 77209B | Fuel pump pipe sub-assembly | 77209-06010 |
| 77213B | Fuel tank to filler pipe hose | 77213-06010 · 77213-33050 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-06010 · 77216-33010 · 77216-41020 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-06010 · 77217-06020 · 77217-33010 · 77217-41010 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-06020 · 77218-33020 |
| 77219 | Fuel tank filler pipe cap | 77219-06010 · 77219-06020 |
| 77229C | Snorkel clamp | 77229-06020 · 77229-33040 |
| 77246C | Main fuel pipe bracket | 77246-33010 |
| 77248A | Fuel tank filler pipe cap holder | 77248-06010 · 77248-06020 |
| 77249 | fuel drain hose | 90080-44080 · 90080-44094 · 95327-06030 · 95337-06018 |
| 77251B | main fuel pipe | 77251-06030 |
| 77259A | Fuel hose (for breather pipe) | 77419-06010 · 77419-33020 |
| 77261A | No. 1 fuel hose (for fuel evaporative drain pipe) | 95337-08018 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-06050 · 77261-06060 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 77259-06010 · 77259-33060 |
| 77261F | No. 2 fuel hose (for fuel tank to canister pipe) | 77279-06010 · 77279-33030 · 95328-07022 |
| 77264 | Carbon canister to front side member pipe | 77264-06010 · 77264-06030 · 77264-06040 |
| 77266A | No. 1 fuel line protection device | 77266-06020 |
| 77267A | No. 2 fuel pipe protection device | 77267-06020 |
| 77269A | fuel tank breather hose | 77269-33010 · 90080-44093 |
| 77272B | No. 1 snorkel holder | 77272-06010 · 77272-33010 |
| 77277R | Fuel tank filler pipe protection device | 77277-33040 · 77277-33041 · 77277-AA010 · 77277-AA020 |
| 77281A | Fuel filler pipe clamp | 77281-33010 |
| 77285D | No. 1 fuel pipe clamp | 77285-06020 · 77285-06030 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77286-06010 · 77286-06020 |
| 77289B | No. 3 fuel pipe clamp | 77289-06020 · 77289-06030 |
| 77291A | Fuel tank filler pipe cover | 77291-AA020 |
| 77295C | Fuel pipe retaining ring | 77295-06020 |
| 77298A | No. 4 fuel pipe clamp | 77298-06020 · 77298-06030 |
| 77299A | No. 5 fuel pipe clamp | 77299-06020 · 77299-06030 |
| 77310A | Fuel tank cap assembly | 77310-01012 · 77310-06020 |
| 77316 | fuel tank cap gasket | 77316-06010 · 77316-16010 |
| 77340A | Fuel shut-off valve assembly with fuel pipe | 77340-33020 |
| 77350 | Fuel filler cap assembly | 77350-AA050 |
| 77366 | Fuel filler cap hinge spring | 77360-22020 · 77360-33020 |
| 77377 | Fuel filler cap lock retainer | 77377-AA010 |
| 77390D | Fuel tank overfill check valve assembly | 77390-33010 · 77390-33011 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-20030 |
| 77393 | One-way valve protection device | 77393-33010 |
| 77394 | Valve to fuel filler hose | 90080-44095 · 95337-08034 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-06010 · 77411-06020 |
| 77412 | No. 2 fuel pipe retaining ring bracket | 77412-06020 · 77412-06030 |
| 77413A | No. 3 fuel pipe retaining ring bracket | 77413-06020 · 77413-06030 |
| 77414 | No. 4 fuel pipe retaining ring bracket | 77414-06020 · 77414-06030 |
| 77415 | No. 5 fuel pipe retaining ring bracket | 77415-06020 · 77415-06030 |
| 77444 | fuel tank vent hose | 77404-06010 · 77404-33010 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-33010 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-33010 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-33010 |
| 77611A | Pin (for fuel tank strap) | 90250-08019 |
| 77631A | Fuel tank center lower protective shell | 77631-06010 |
| 77641A | No. 1 fuel tank protective shell | 77641-33010 |
| 77642A | No. 2 fuel tank protective shell | 77642-33010 |
| 77643A | No. 3 fuel tank protective shell | 77643-33010 |
| 77651A | No. 1 fuel tank liner | 77652-03010 |
| 77681 | Fuel tank right side strap seat | 77681-32060 |
| 77682 | Fuel tank left side strap seat | 77681-32060 |
| 77740 | Carbon canister assembly | 77740-06042 · 77740-06061 · 77740-06062 · 77740-06091 · 77740-06100 · 77740-06101 · 77740-33040 · 77740-33061 · 77740-33080 · 77740-33110 · 77740-33111 |
| 77751 | Carbon canister base bracket | 77751-06030 · 77751-07010 · 77751-33010 · 77751-33030 · 77751-41010 |
| 77754 | No. 1 carbon canister outlet hose | 77754-33010 |
| 77779 | Carbon canister outlet pipe | 77779-33010 |
| 77785 | fuel pump wiring harness | 77785-06010 |
| 77795 | No. 2 carbon canister outlet hose | 77795-33010 |
| 77796 | No. 3 carbon canister outlet hose | 77796-33010 |
