Toyota CAMRY 挡泥板和扰流板 — Figure 7601

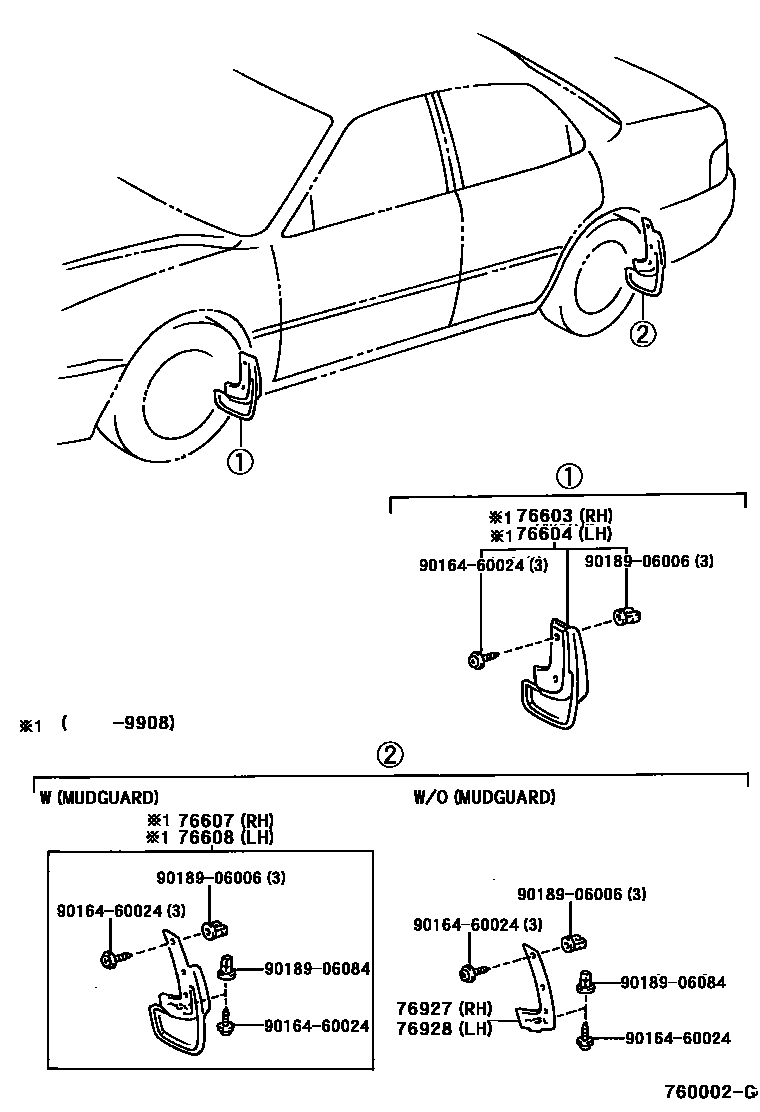

Toyota CAMRY EPC diagram 7601, 挡泥板和扰流板, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76603 | Right front fender fender sub-assembly | 76621-A9010 |
| 76604 | Left front fender fender sub-assembly | 76622-A9010 |
| 76607 | Right rear side fender sub-assembly | 76625-A9010 |
| 76608 | Left rear side fender sub-assembly | 76626-A9010 |
| 76927 | Right rear fender protection strip | 76927-AA010 |
| 76928 | Left rear fender protection strip | 76928-AA010 |
