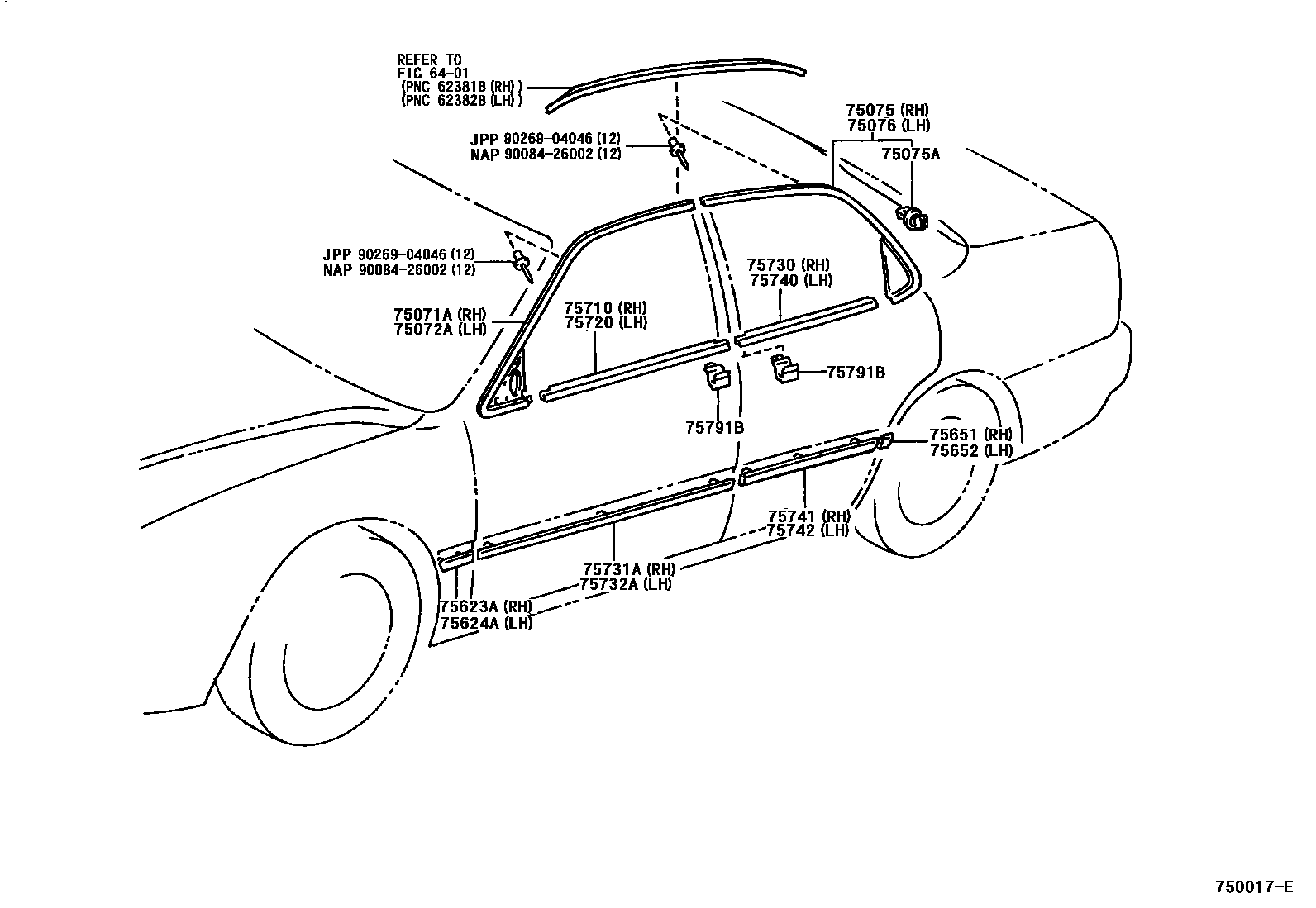

Toyota CAMRY 侧防护条 — Figure 7503
Toyota CAMRY EPC diagram 7503, 侧防护条, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75071A | Right front door outer protective strip sub-assembly | 75071-AA030 |
| 75072A | Left front door outer protective strip sub-assembly | 75072-AA030 |
| 75075 | Right rear door outer protective strip sub-assembly | 75075-AA010 |
| 75075A | Clip (for rear door outer protective strip) | 90084-46018 |
| 75076 | Left rear door outer protective strip sub-assembly | 75076-AA010 |
| 75623A | Right front fender outer rear protective strip | 75623-AA901 |
| 75624A | Left front fender outer rear protective strip | 75624-AA901 |
| 75651 | Right side outer protective strip | 75651-AA901 |
| 75652 | Left side outer protective strip | 75652-AA901 |
| 75710 | Right front door waistline protection strip assembly | 75710-AA030 |
| 75720 | Left front door waistline protection strip assembly | 75720-AA030 |
| 75730 | Right rear door waistline protection strip assembly | 75730-AA010 |
| 75731A | Right front door outer protective strip | 75731-AA906 |
| 75732A | Left front door outer protective strip | 75732-AA906 |
| 75740 | Left rear door waistline protection strip assembly | 75740-AA010 |
| 75742 | Left rear door outer protective strip | 75742-AA903 |
| 75791B | Waistline side protective strip clip | 75791-AA010 |
