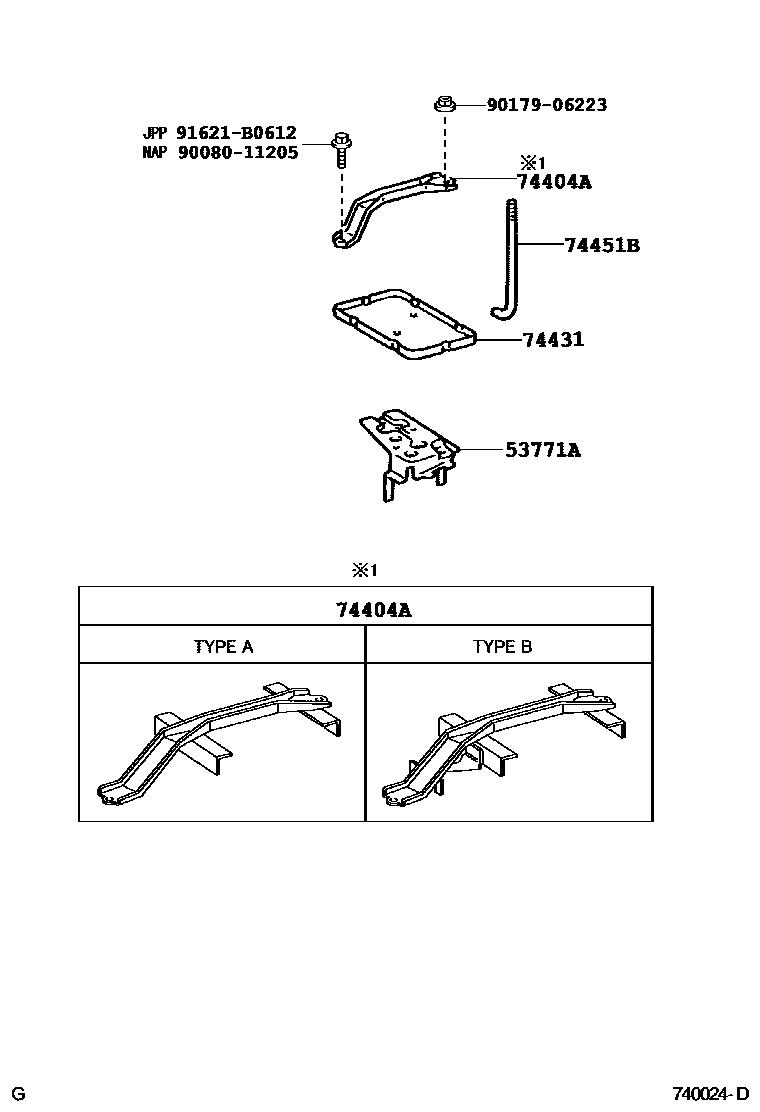

Toyota CAMRY battery holder — Figure 7402
Toyota CAMRY EPC diagram 7402, battery holder, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53771A | battery holder bracket | 53704-33010 · 53704-33011 |
| 74404A | Battery clip sub-assembly | 74404-06020 · 74404-06030 · 74404-33050 · 74404-33060 |
| 74431 | battery tray | 74431-06010 · 74431-08010 |
| 74451B | Battery clamp bolt | 74451-06010 |
