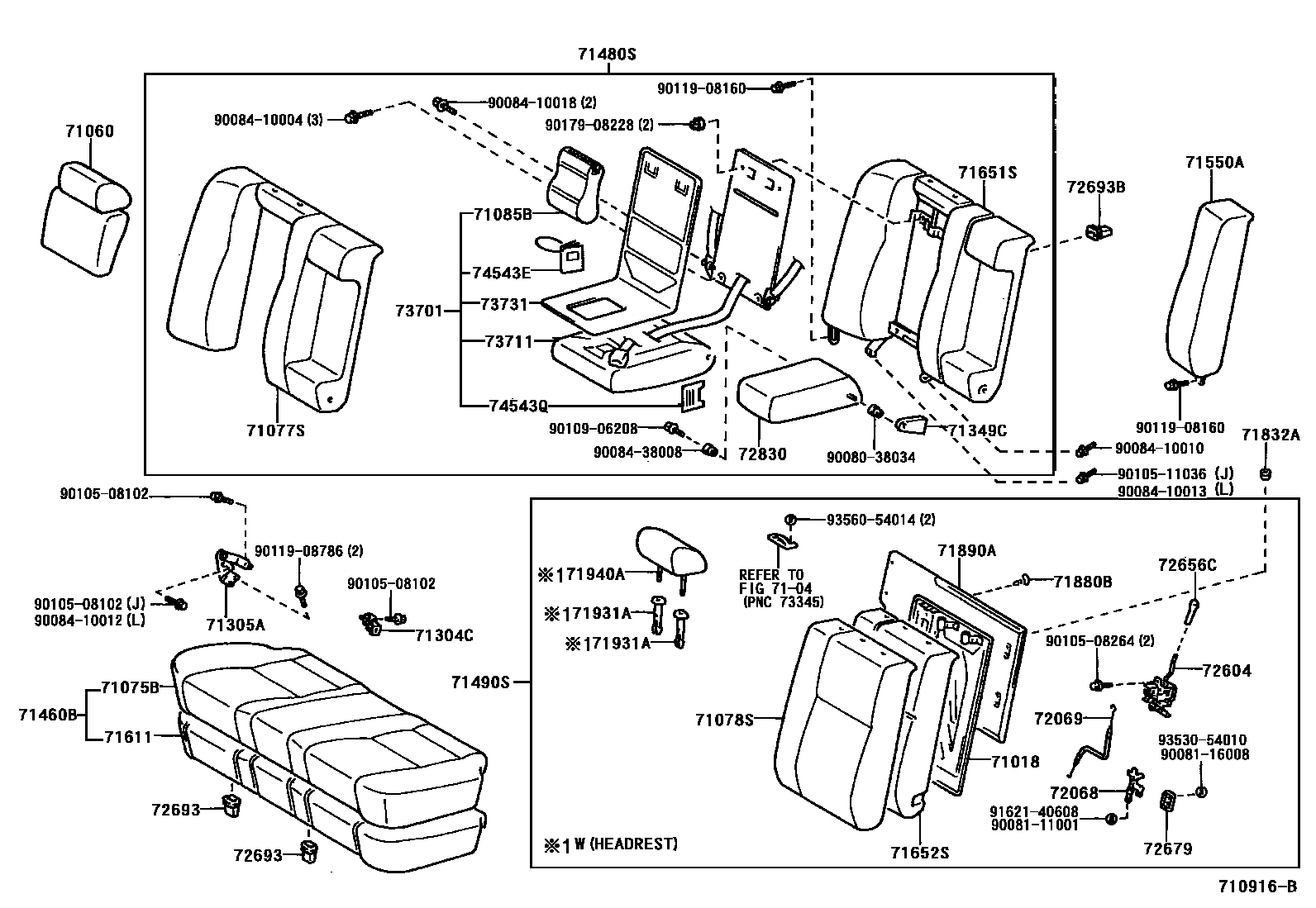

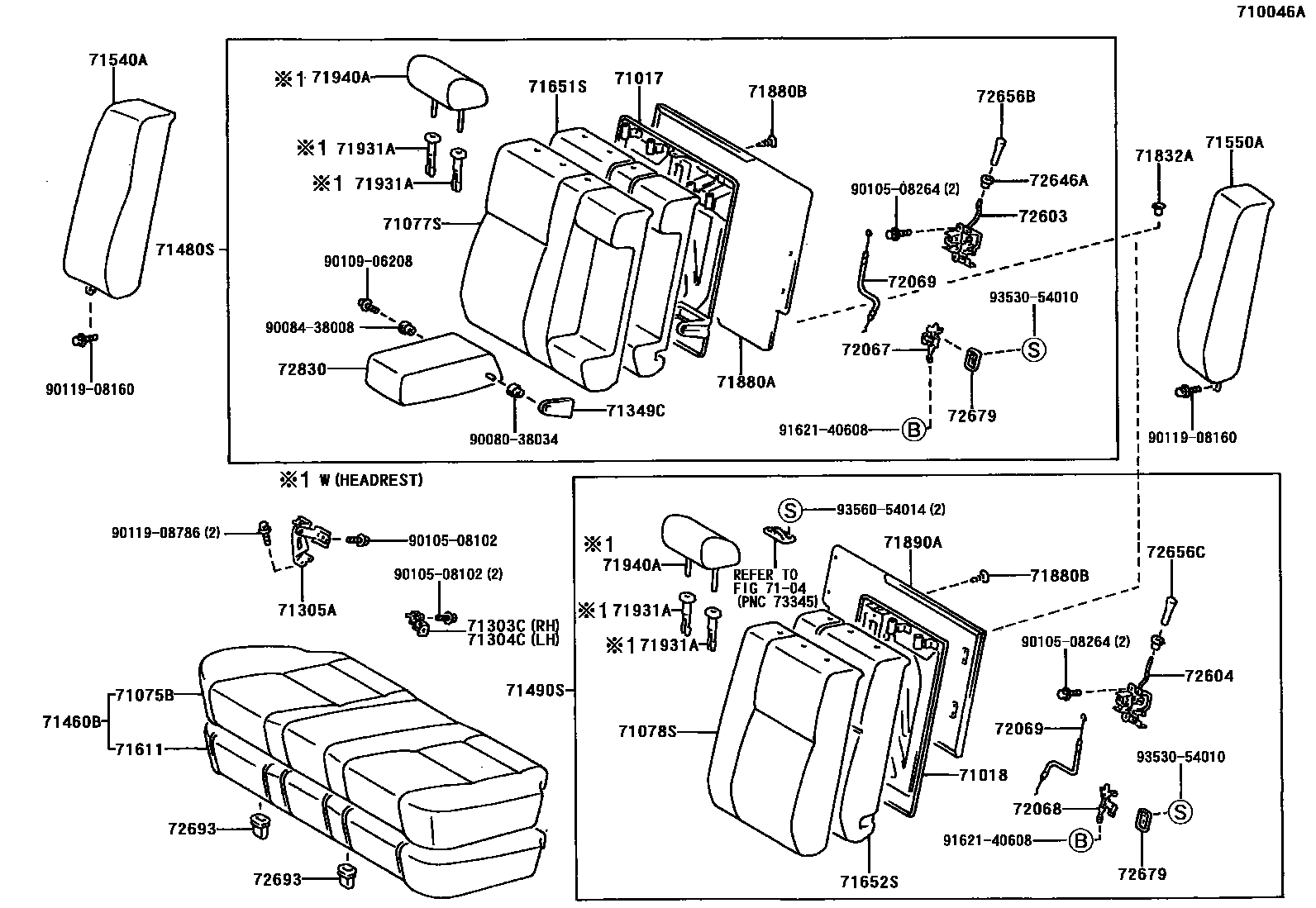

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-AA010 · 71017-AA020 |
| 71018 | Rear left seat back frame sub-assembly | 71018-AA010 · 71018-AA020 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-AA020 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-AA020 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-AA020 · 71305-AA030 |
| 71349C | Rear seat back hinge cover | 71349-AA010 |
| 71611 | Rear seat cushion cushion | 71503-AA010 |
| 71651S | Rear right seat back cushion (for split seats) | 71507-AA010 · 71651-AA020 · 71651-AA030 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-AA020 · 71652-AA030 |
| 71880B | Clip (for rear seat back felt cushion) | 90084-46029 |
| 72067 | Rear right seat back lock control lever sub-assembly | 72067-AA010 |
| 72068 | Rear left seat back lock control lever sub-assembly | 72067-AA010 |
| 72069 | Rear seat back lock control cable sub-assembly | 72069-AA010 |
| 72603 | Rear right seat back lock sub-assembly | 72603-AA010 |
| 72604 | Rear left seat back lock sub-assembly | 72604-AA010 |
| 72693 | Rear seat cushion hook | 72693-20060 |
| 72693B | Rear seat back lock hook | 72693-12060 |
| 73711 | Child restraint seat body | 73711-AA010 · 73711-AA020 |
| 73731 | Child restraint seat cover | 73731-AA010 |
| 74543E | Child Restraint Seat Information Label | 74543-AA020 · 74543-AA021 |
| 74543Q | Child Restraint Seat No. 2 Information Label | 74543-AA040 |
