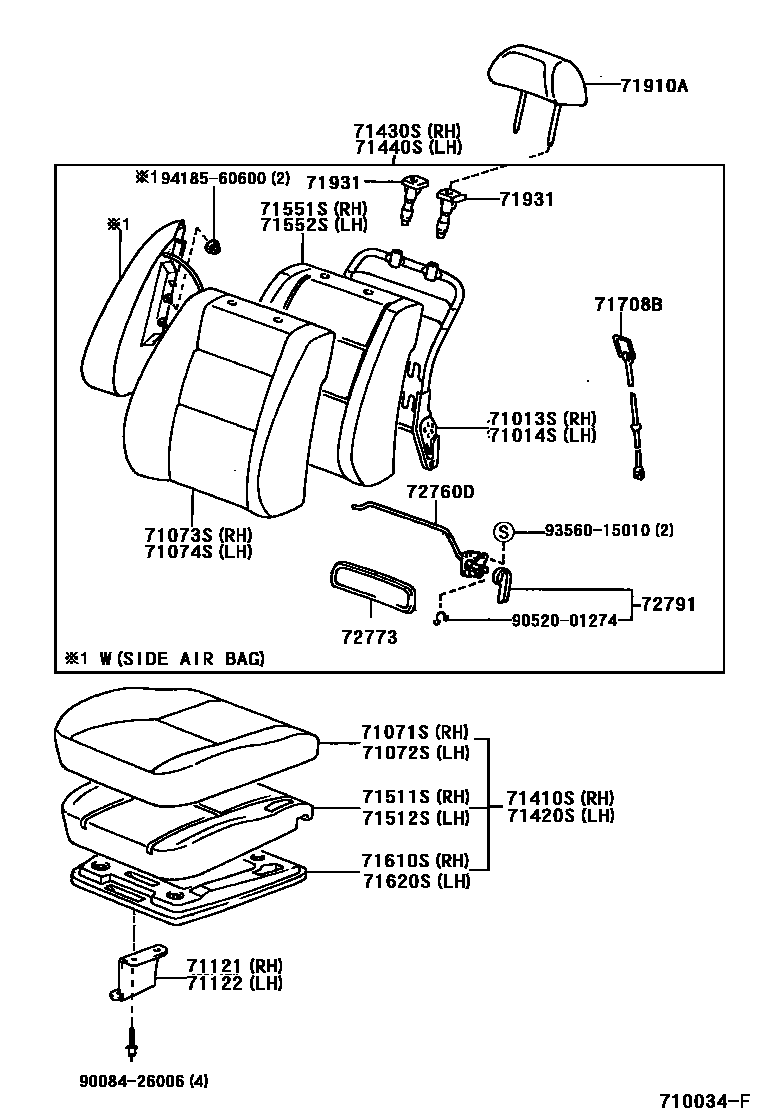

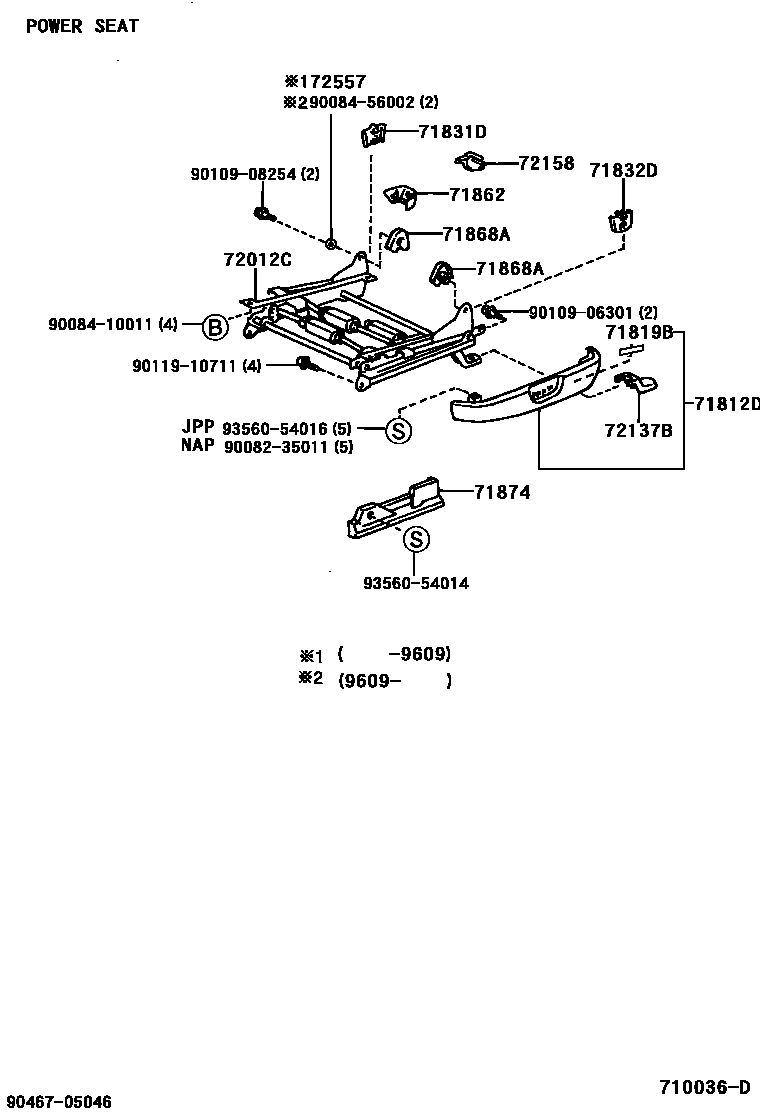

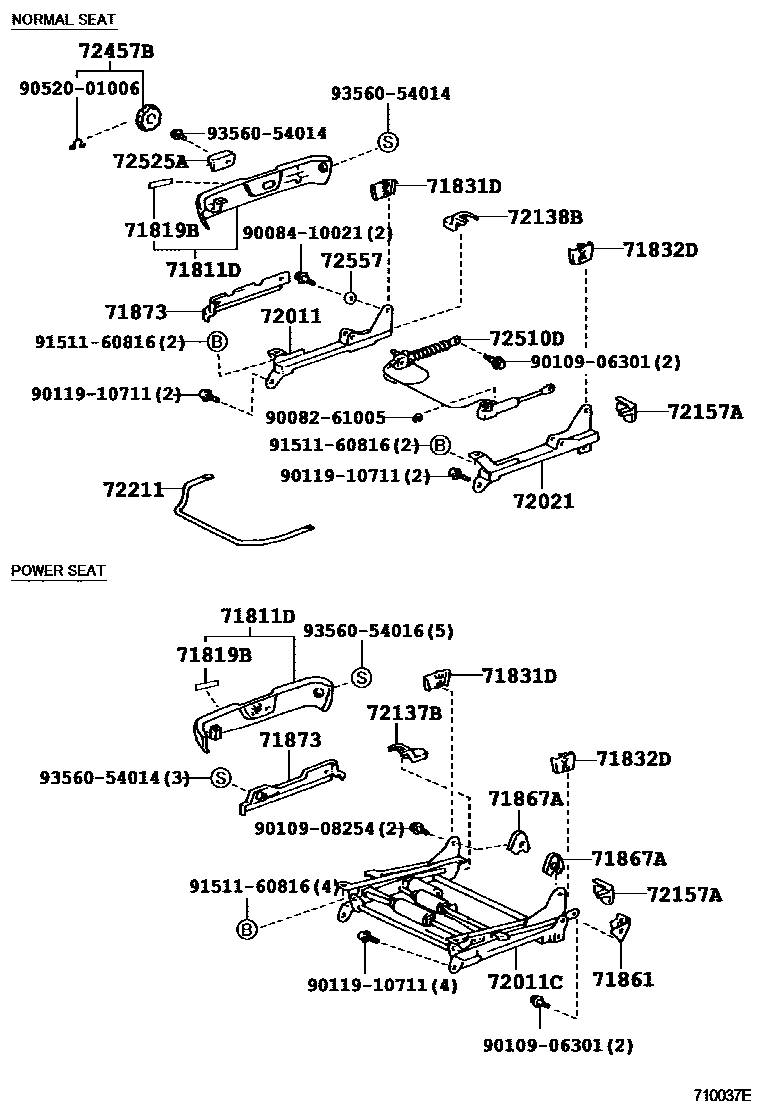

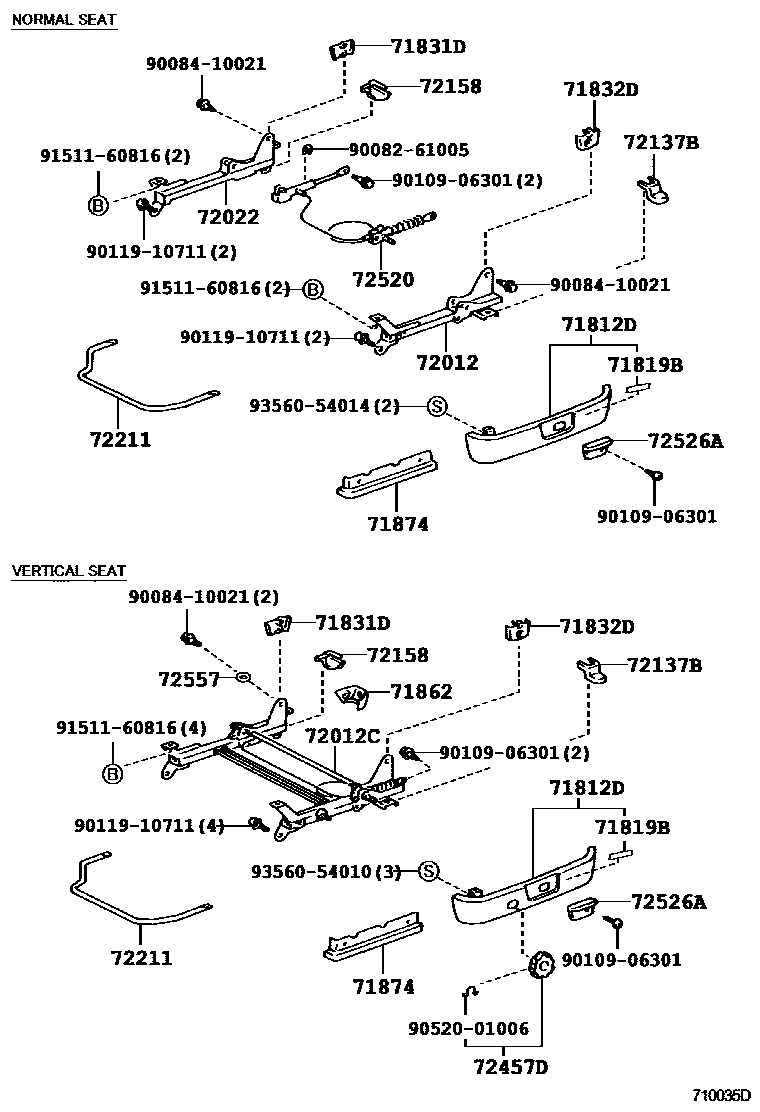

Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101
Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-AA030 · 71013-AA031 |
| 71014S | Front left seat back frame sub-assembly | 71013-AA030 · 71013-AA031 · 71014-AA020 · 71014-AA021 |
| 71121 | Front right seat cushion bracket | 71121-AA010 |
| 71122 | Front left seat cushion bracket | 71122-AA010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-AA010 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-AA010 |
| 71551S | Front right seat back cushion (for split seats) | 71551-AA010 · 71551-AA020 |
| 71552S | Front left seat back cushion (for split seats) | 71551-AA010 · 71551-AA020 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-AA020 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71610-AA020 |
| 71708B | Seat cover fixed belt sub-assembly | 71708-AA010 |
| 71831D | Front right seat hinge cover | 71831-AA010 |
| 71832D | Front left seat hinge cover | 71832-AA010 |
| 71867A | Front right seat No. 1 seat cushion inner protection panel | 71867-AA010 |
| 71868A | Front left seat No. 1 seat cushion inner protection panel | 71867-AA010 |
| 72011 | Front right seat outer adjuster sub-assembly | 72011-AA010 |
| 72011C | Front right seat adjuster sub-assembly | 72010-AA010 · 72010-AA011 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-AA010 |
| 72012C | Front left seat adjuster sub-assembly | 72020-AA010 · 72020-AA011 · 72020-AA020 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-AA010 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-AA010 |
| 72211 | Seat slide adjustment handle | 72211-08010 · 72211-AA010 |
| 72510D | Right seat back inclination outer adjuster assembly | 72510-AA010 |
| 72520 | Left seat back tilt adjuster assembly | 72520-AA010 |
| 72557 | Seat back recliner spacer | 72557-33010 |
| 72760D | Left lumbar support adjuster assembly | 72760-AA010 |
| 72773 | lumbar support panel | 72773-AA010 |
