Toyota CAMRY 锁芯组件 — Figure 6712

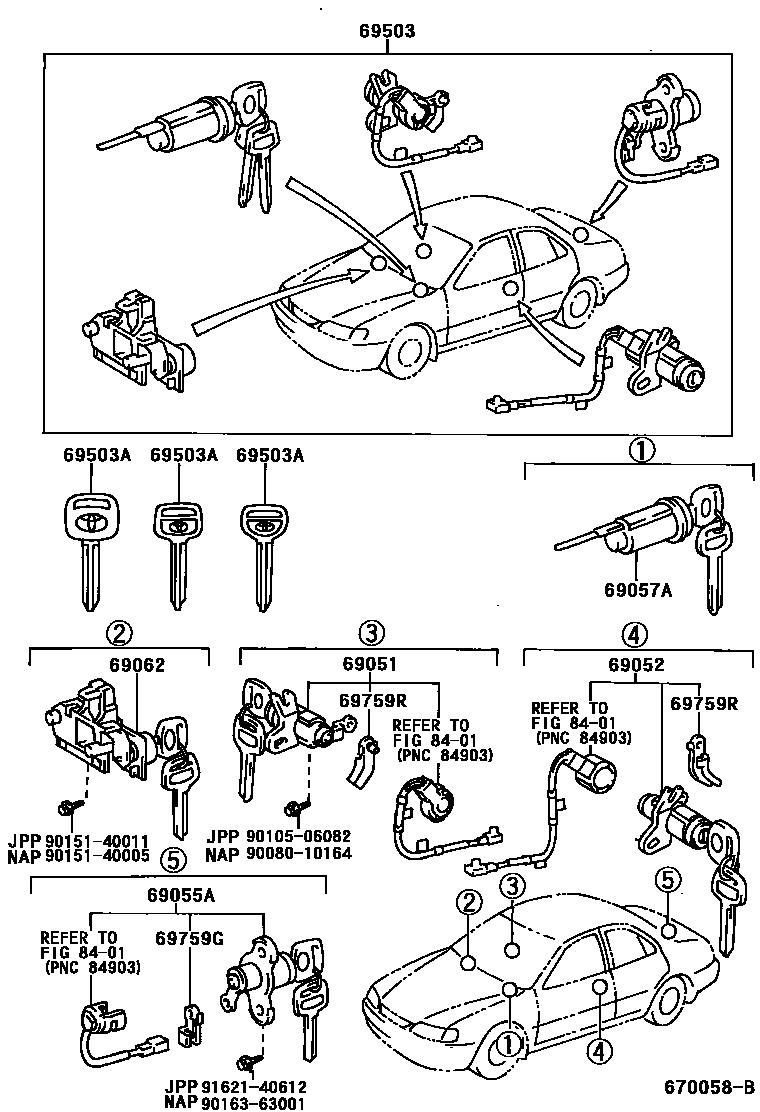

Toyota CAMRY EPC diagram 6712, 锁芯组件, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-33140 · 69051-33150 |
| 69052 | Left door lock cylinder and key assembly | 69052-33150 · 69052-33160 |
| 69055A | Luggage lock cylinder and key assembly | 69055-33190 · 69055-33200 · 69055-33201 · 69055-33310 · 69055-33320 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-41010 |
| 69062 | Glove box lock cylinder and key assembly | 69056-33010 |
| 69503 | Door lock cylinder components | 69005-33470 · 69005-33480 · 69005-33730 |
| 69503A | external tooth key | 90999-00185 · 90999-00186 · 90999-00188 |
| 69759G | Trunk door lock core buckle | 69759-20080 · 69759-24080 |
| 69759R | Front door lock cylinder buckle | 69759-12080 · 69759-12090 |
