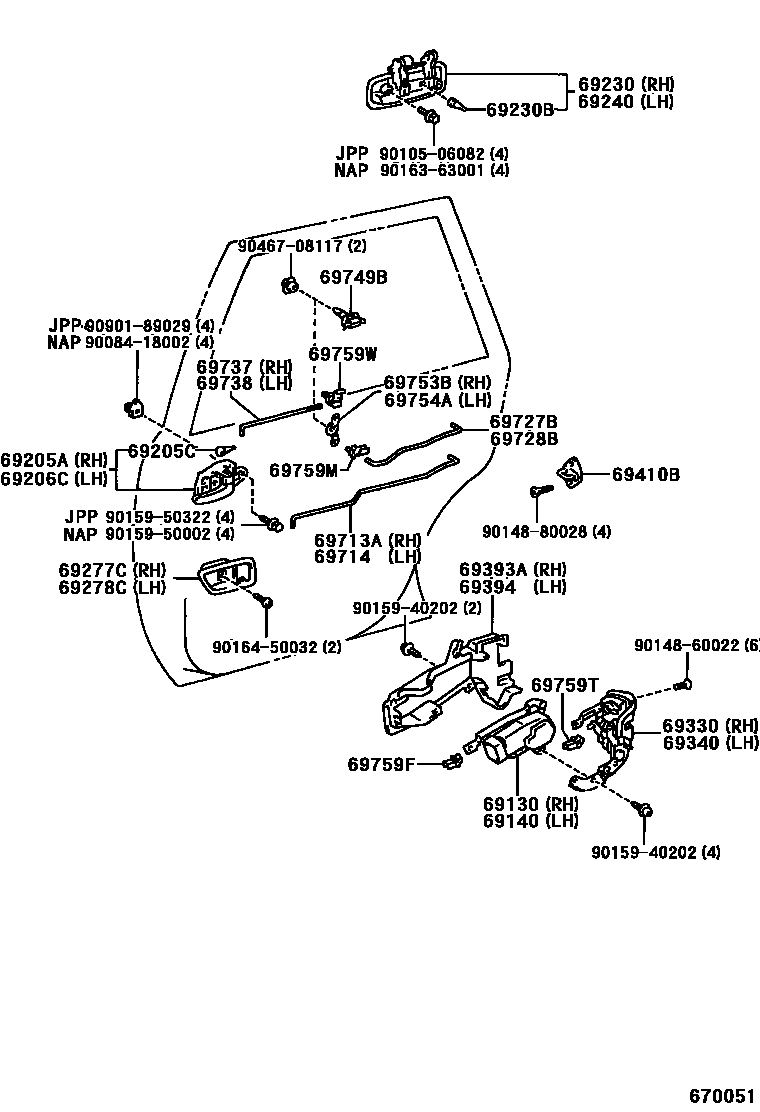

Toyota CAMRY 后门锁和后门把手 — Figure 6706
Toyota CAMRY EPC diagram 6706, 后门锁和后门把手, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69130 | Right rear door lock actuator assembly | 69130-AA010 |
| 69140 | Left rear door lock actuator assembly | 69140-AA010 |
| 69205C | Cushion pad (for rear door inner handle) | 90080-54005 |
| 69230B | Cushion pad (for rear door outer handle) | 90080-54005 |
| 69330 | Right rear door door lock assembly | 69305-AA010 · 69305-AA020 |
| 69340 | Left rear door lock assembly | 69306-AA010 · 69306-AA020 |
| 69393A | Right rear door lock outer cover | 69393-AA010 · 69393-AA020 |
| 69394 | Left rear door lock outer cover | 69394-AA010 · 69394-AA020 |
| 69410B | Rear door lock plate assembly | 69410-AA020 |
| 69713A | Right rear door lock remote control lever | 69713-AA010 |
| 69714 | Left rear door lock remote control lever | 69714-AA010 |
| 69727B | Right rear door No. 2 inner locking link | 69727-AA010 |
| 69728B | Left rear door No. 2 inner locking link | 69727-AA010 |
| 69737 | Right rear door inner locking link | 69737-AA010 |
| 69738 | Left rear door inner locking link | 69738-AA010 |
| 69749B | Rear door lock link clamp | 69749-32030 |
| 69753B | Right rear door lock control right angle lever | 69753-AA030 |
| 69754A | Left rear door lock control right angle lever | 69753-AA030 |
| 69759F | Rear door lock control link buckle | 69759-20040 · 69759-20050 |
| 69759M | Door lock control link buckle | 69759-30040 |
| 69759T | Rear door inner handle buckle | 69759-20040 · 69759-20050 · 69759-24050 · 69759-24060 |
| 69759W | Rear door lock control link buckle | 69759-AC010 |
