Toyota CAMRY 后门板和后门玻璃 — Figure 6705

Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 2 images and 29 PNC and OE references.

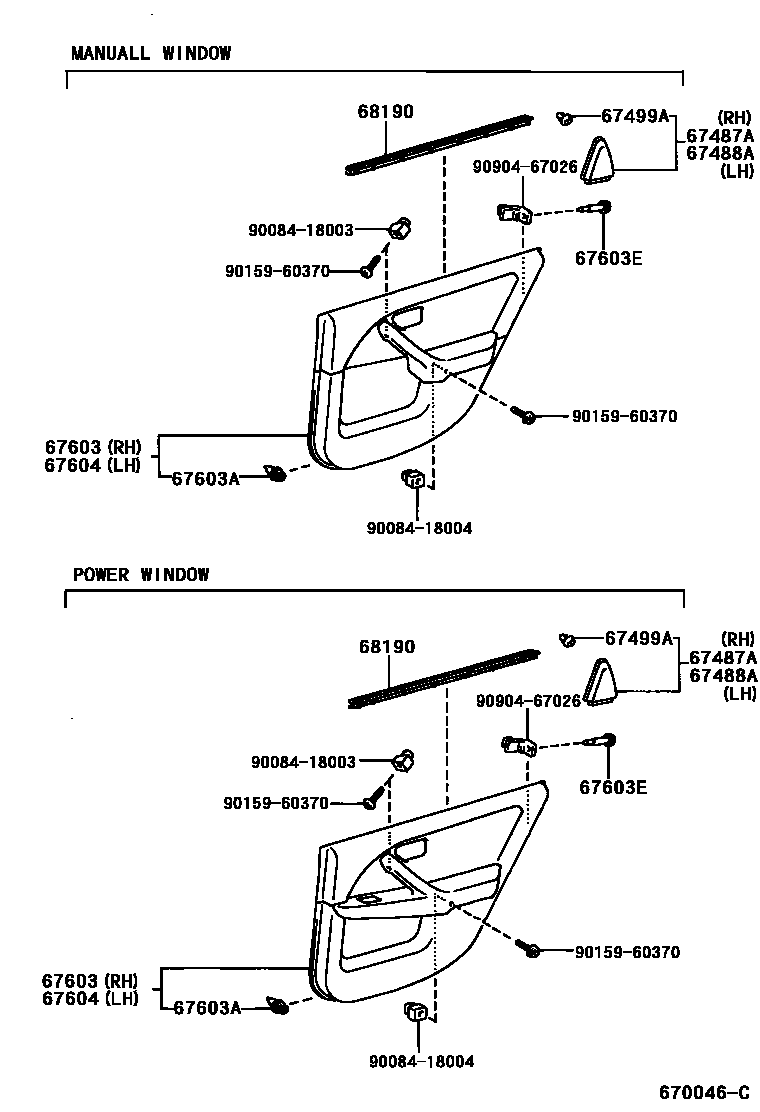

Toyota CAMRY 后门板和后门玻璃 EPC diagram — 670046C
后门板和后门玻璃 — 670046C (199607 – 999999)

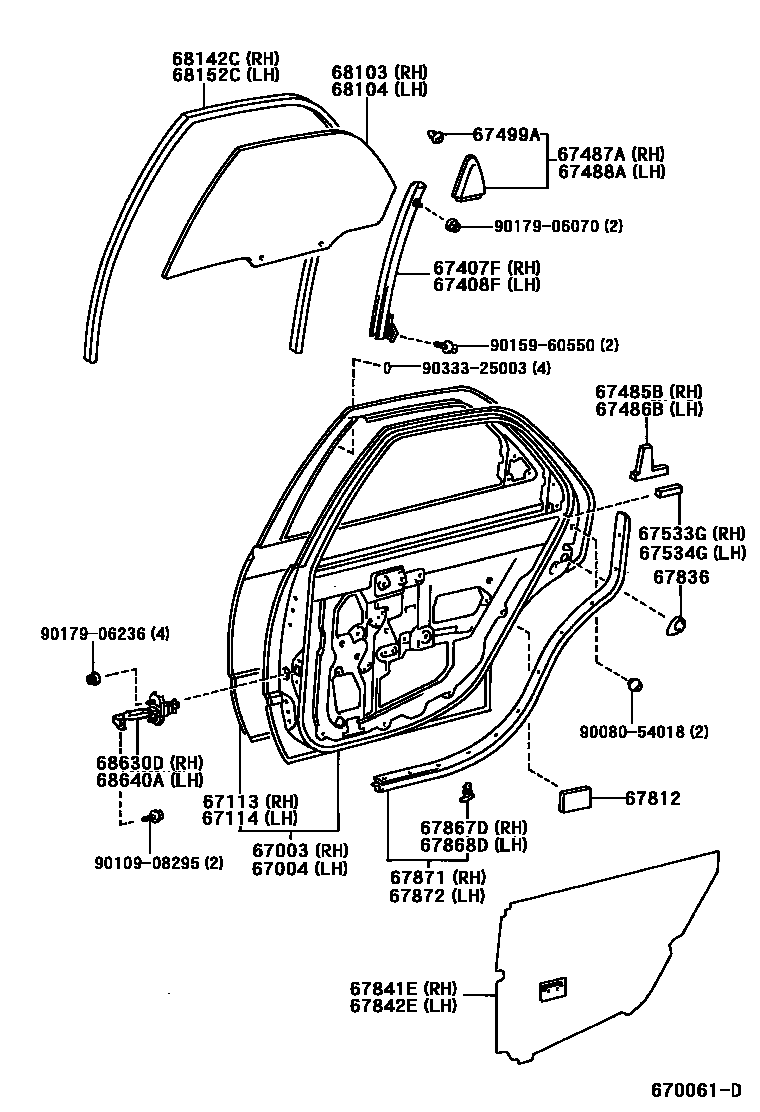

Toyota CAMRY 后门板和后门玻璃 EPC diagram — 670061D
后门板和后门玻璃 — 670061D (199607 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-AA010 · 67003-AA020
67004Left rear door panel sub-assembly67004-AA010 · 67004-AA020
67113Right rear door outer panel67113-AA010
67114Left rear door outer panel67114-AA010
67407FRight rear door window rear lower frame sub-assembly67407-AA010
67408FLeft rear door window rear lower frame sub-assembly67408-AA010
67485BRight rear door divider inner seal67485-AA010
67486BLeft rear door divider inner seal67485-AA010
67487ARight rear door rear rail bracket decorative strip67487-AA010
67488ALeft rear door rear guide rail bracket decorative strip67488-AA010
67499ARear door lower door frame bracket trim strip fixing67499-06010
67533GRight rear door lower door frame decorative pad67533-AA010
67534GLeft rear door lower door frame decorative pad67533-AA010
67603AFixings (for rear door trim)67771-06070 · 67771-12050
67812Rear door silencer pad67812-AA010
67836Right rear door lock child restraint cover67836-AA010
67841ERight rear door access hole cover67841-AA020
67842ELeft rear door access hole cover67842-AA020
67867DRight rear door seal strip fixing67867-12150
67868DLeft rear door seal strip fixing67867-12150
67871Right rear door sealing strip67871-AA010
67872Left rear door sealing strip67872-AA010
68103Right rear door glass sub-assembly68113-AA010
68104Left rear door glass sub-assembly68114-AA010
68142CRight rear door glass lift slot68142-AA010
68152CLeft rear door glass lift slot68152-AA010
68190Rear door glass inner sealing strip assembly68190-AA020
68630DRight rear door opening limiter assembly68630-AA010 · 68630-AA011
68640ALeft rear door opening limiter assembly68640-AA010 · 68640-AA011
