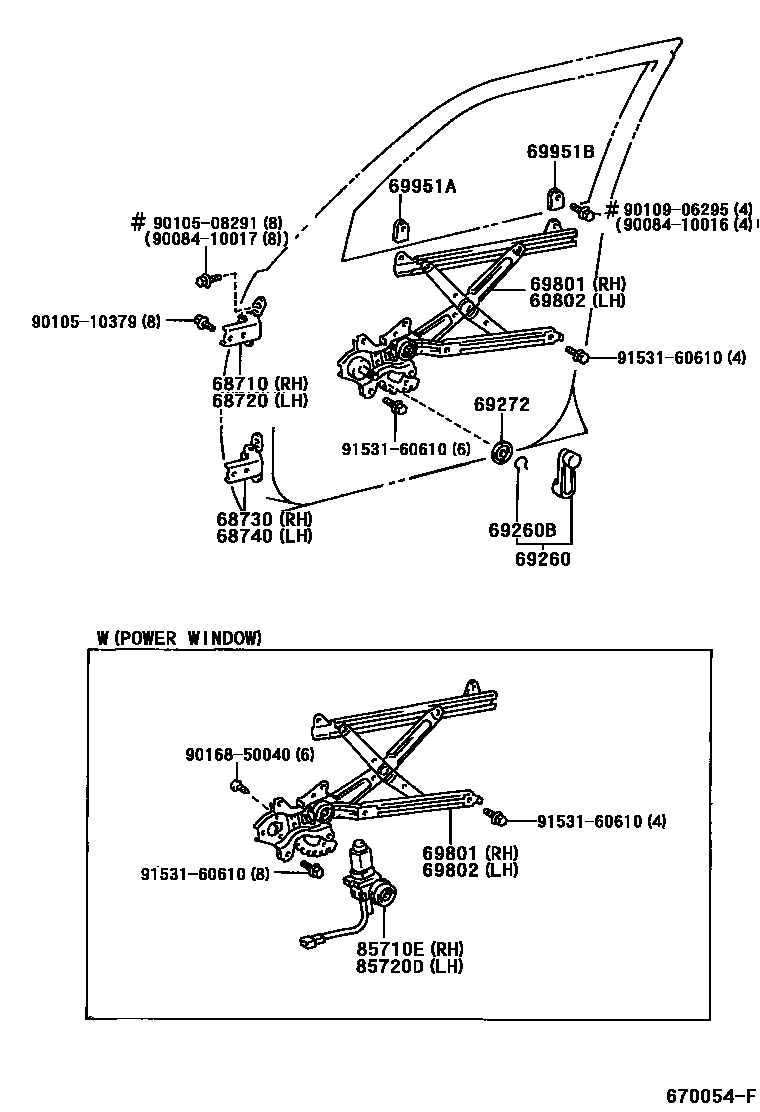

Toyota CAMRY 前门车窗升降器和合页 — Figure 6704
Toyota CAMRY EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-07010 |
| 68720 | Left front door upper hinge assembly | 68720-07010 |
| 68730 | Right front door lower hinge assembly | 68720-07010 |
| 68740 | Left front door lower hinge assembly | 68710-07010 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90080-52001 |
| 69272 | Front door window lift inner handle plate | 69268-01020 · 69268-20020 |
| 69801 | Right front door window lifter sub-assembly | 69801-AA020 · 69810-AA030 |
| 69802 | Left front door window lifter sub-assembly | 69802-AA020 · 69820-AA030 |
| 69951A | Front door glass channel | 69951-AA010 · 69951-AA030 · 69961-33020 |
| 69951B | Front door glass channel | 69951-AA020 · 69951-AA040 · 69963-33020 |
| 85710E | Right power window lift motor assembly | 85710-AA020 |
| 85720D | Left electric window lift motor assembly | 85720-AA020 |
