Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403

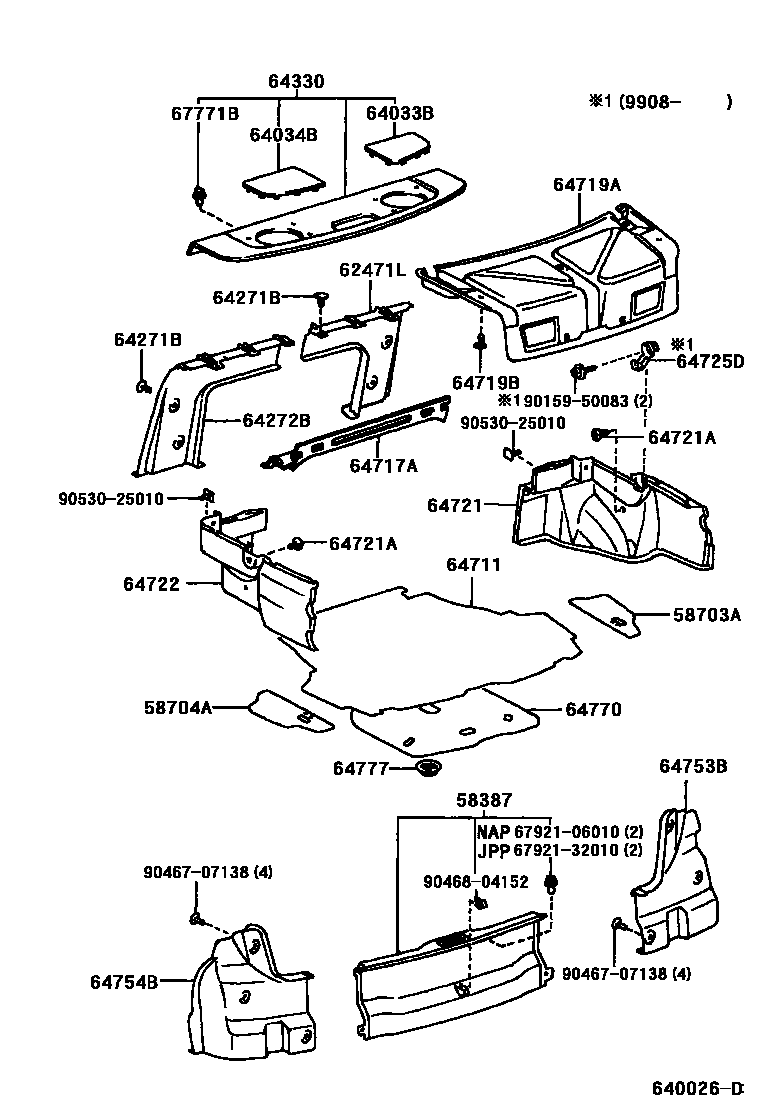

Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387 | Rear floor decorative panel | 58387-AA010 |
| 58703A | Trunk door right side decorative cover sub-assembly | 58703-06020 |
| 58704A | Luggage door left decorative cover sub-assembly | 58704-06020 |
| 62471L | Right compartment partition | 64271-AA010 · 64271-AA020 |
| 64271B | Clip (for compartment partition) | 90080-46294 · 90467-07146 |
| 64272B | Left compartment partition | 64272-AA010 |
| 64719B | Catch (for trunk door) | 90467-07138 · 90467-07146 |
| 64725D | Luggage decorative hook No. 1 | 64725-AA020 |
| 64753B | Rear floor right decorative panel | 64753-AA010 · 64753-AA020 |
| 64754B | Rear floor left decorative panel | 64754-AA010 · 64754-AA020 |
| 64770 | Spare tire cover assembly | 64770-06030 |
| 64777 | Spare tire cover clip | 64777-32030 |
| 67771B | Glove box decorative panel fixings | 67771-16080 |
