Toyota CAMRY 内饰板和车门防水胶条 — Figure 6401

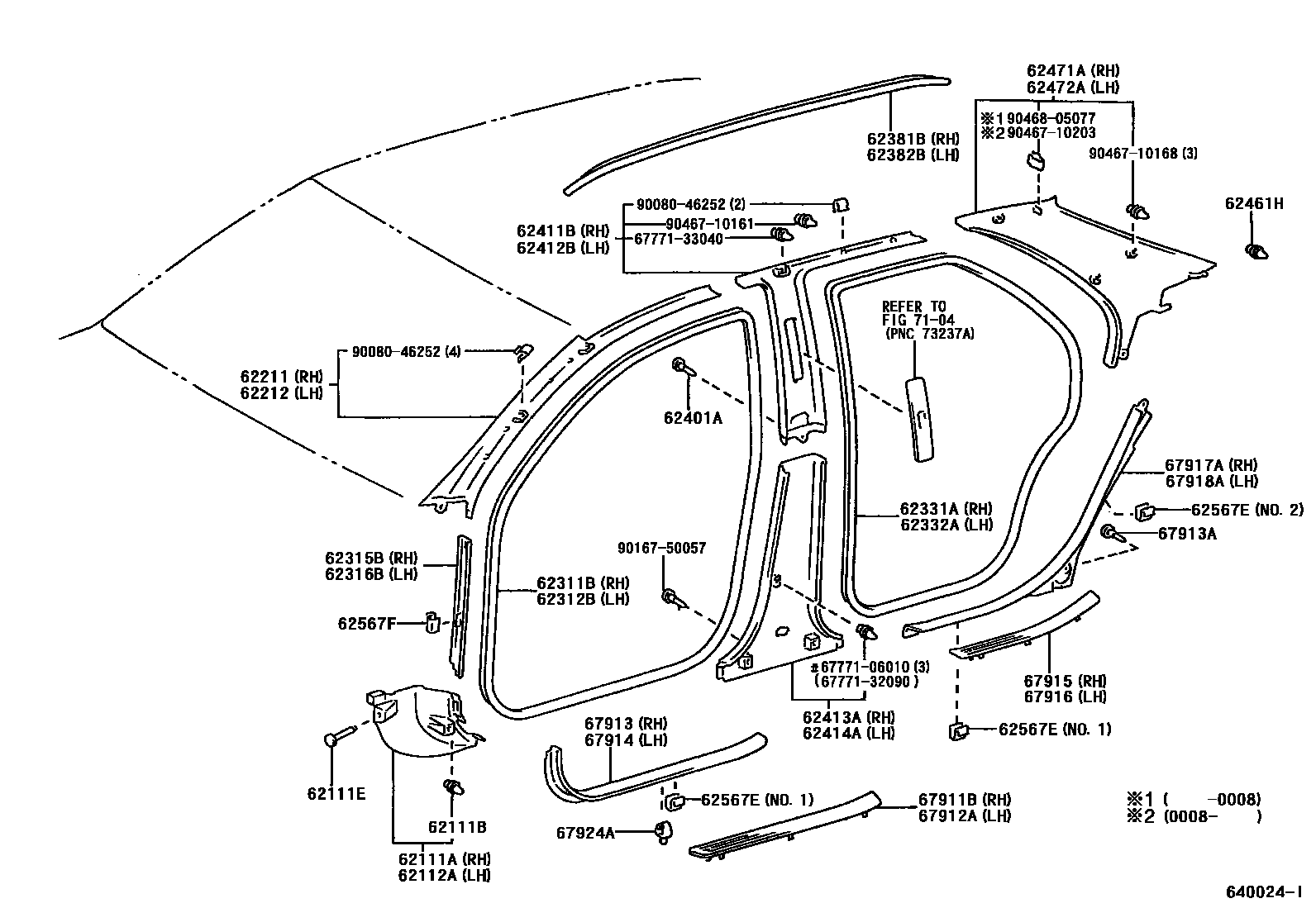

Toyota CAMRY EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 67771-33040 · 90467-10168 |
| 62311B | Right front door opening waterproof tape | 62311-AA020 |
| 62312B | Left front door opening waterproof tape | 62312-AA020 |
| 62331A | Right rear door opening waterproof tape | 62331-AA010 |
| 62332A | Left rear door opening waterproof tape | 62332-AA010 |
| 62381B | Roof right side rail seal strip | 62381-AA020 |
| 62382B | Roof left side rail seal strip | 62382-AA020 |
| 62567E | No. 2 door inner sill guard strip clip | 62567-12010 · 62567-33010 · 62567-AA010 · 62567-AA030 |
| 62567F | No. 2 door inner sill guard strip clip | 62567-12010 · 62567-33010 · 62567-AA010 |
| 67911B | Right front door outer wear plate | 67911-AA020 |
| 67912A | Left front door outer wear plate | 67912-AA020 |
| 67915 | Right rear door outer wear plate | 67915-AA010 |
| 67916 | Left rear door outer wear plate | 67916-AA010 |
| 67924A | Door No. 2 wear plate clip | 67924-AA010 · 82711-06050 |
