Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105

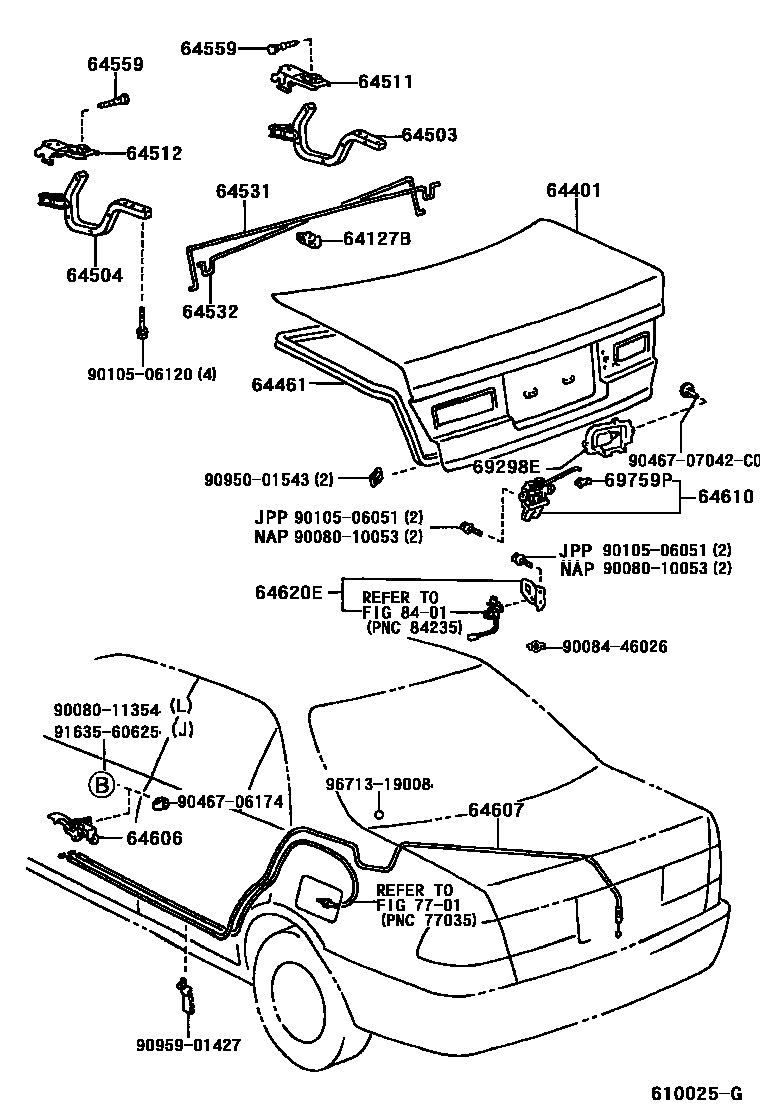

Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33040 · 64127-33041 |
| 64401 | Trunk door panel sub-assembly | 64401-AA010 · 64401-AA030 |
| 64461 | Trunk door seal | 64461-AA010 · 64461-AA011 · 64461-AA020 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-AA010 · 64503-AA030 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-AA010 · 64503-AA030 |
| 64511 | Trunk door right hinge bracket | 64511-AA010 |
| 64512 | Trunk door left hinge bracket | 64512-AA010 |
| 64531 | Trunk door right hinge torsion bar | 64531-AA010 · 64531-AA050 |
| 64532 | Trunk door left hinge torsion bar | 64532-AA010 · 64532-AA040 |
| 64559 | Trunk door hinge pin | 64559-32020 · 64559-AC020 |
| 64606 | Trunk door lock opening lever sub-assembly | 64606-AA010 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-AA020 |
| 64610 | Trunk door lock assembly | 64610-AA010 · 64610-AA030 · 64610-AA040 |
| 64620E | Trunk door lock assembly | 64620-06010 |
| 69298E | Trunk door inner handle cover | 69298-AA010 |
| 69759P | Door lock control link buckle | 69759-24050 |
