Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104

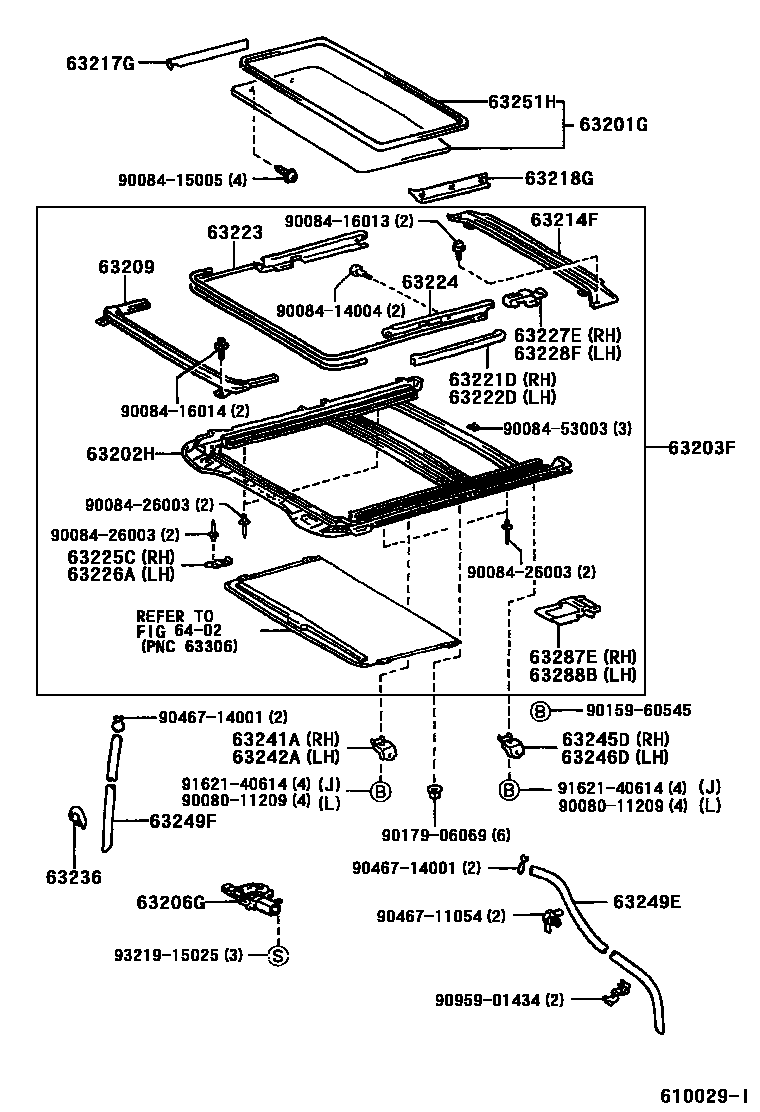

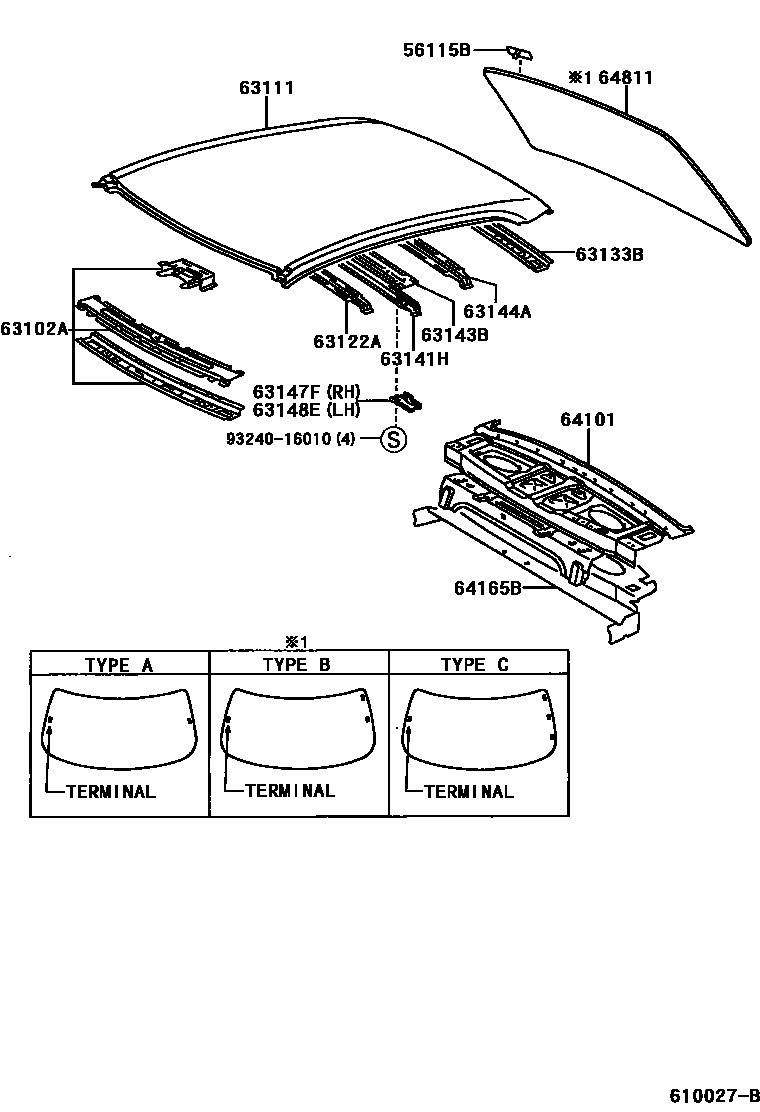

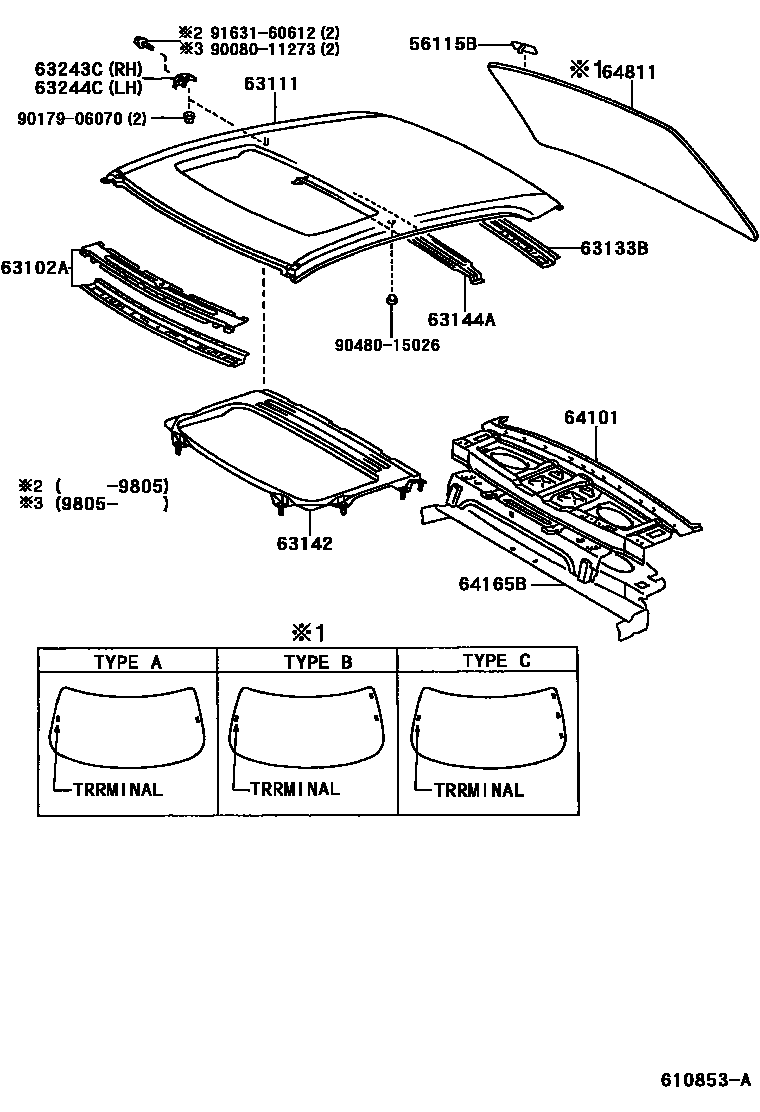

Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56116-35040 |
| 63102A | Windshield roof sub-assembly | 63102-AA900 · 63102-AA901 · 63102-AA902 · 63102-AA903 |
| 63111 | roof panel | 63111-AA040 · 63111-AA050 |
| 63122A | Front roof panel reinforcement | 63122-AA010 |
| 63133B | back window frame | 63133-AA020 · 63133-AA030 |
| 63141H | Center roof panel reinforcement | 63141-AA010 · 63141-AA021 |
| 63142 | No. 2 roof panel reinforcement | 63142-33020 · 63142-AA010 |
| 63143B | No. 3 roof panel reinforcement | 63143-AA020 |
| 63144A | No. 4 roof panel reinforcement | 63144-AA020 · 63144-AA030 |
| 63147F | Right roof panel reinforcement bracket | 63147-AA010 |
| 63148E | Left roof panel reinforcement bracket | 63147-AA010 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-AA010 |
| 63202H | Sliding sunroof longitudinal beam sub-assembly | 63202-AA010 |
| 63206G | Sliding sunroof driving gear sub-assembly | 63260-AA010 |
| 63209 | Roof deflector sub-assembly | 63209-AA010 |
| 63214F | Roof rear drain channel | 63214-AA010 |
| 63217G | Right sliding sunroof trim | 63217-AA010 |
| 63218G | Sliding sunroof trim, left | 63218-AA010 |
| 63221D | Drainage channel duct on the right side of the roof | 63221-AA010 |
| 63222D | Drainage channel duct on the left side of the roof | 63222-AA010 |
| 63223 | Right sliding sunroof transmission cable | 63223-AA010 |
| 63224 | Left sliding sunroof transmission cable | 63224-AA010 |
| 63225C | roof deflector spring | 63225-AA010 |
| 63226A | Roof left deflector spring | 63226-AA010 |
| 63227E | Right sliding sunroof lift arm | 63227-AA010 |
| 63228F | Left sliding sunroof lift arm | 63228-AA010 |
| 63236 | Sliding skylight or removable skylight drain hose clamp | 63236-33010 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-AA010 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63241-AA010 |
| 63243C | Sliding sunroof frame right center mounting bracket | 63243-AA010 |
| 63244C | Sliding sunroof frame left center mounting bracket | 63243-AA010 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-AA010 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63245-AA010 |
| 63249E | Sliding skylight drain hose | 63249-AA020 |
| 63251H | Sliding skylight seal | 63251-AA010 |
| 63287E | Right sliding sunroof frame discharge end cap | 63287-AA010 |
| 63288B | Left side sliding sunroof frame discharge end cap | 63288-AA010 |
| 64101 | Upper back panel sub-assembly | 64101-AA050 · 64101-AA060 |
| 64165B | No. 1 upper back panel hole cover | 64165-AA010 |
| 64811 | back window glass | 64811-AA070 · 64811-AA071 · 64811-AA080 · 64811-AA081 · 64811-AA090 · 64811-AA091 |
