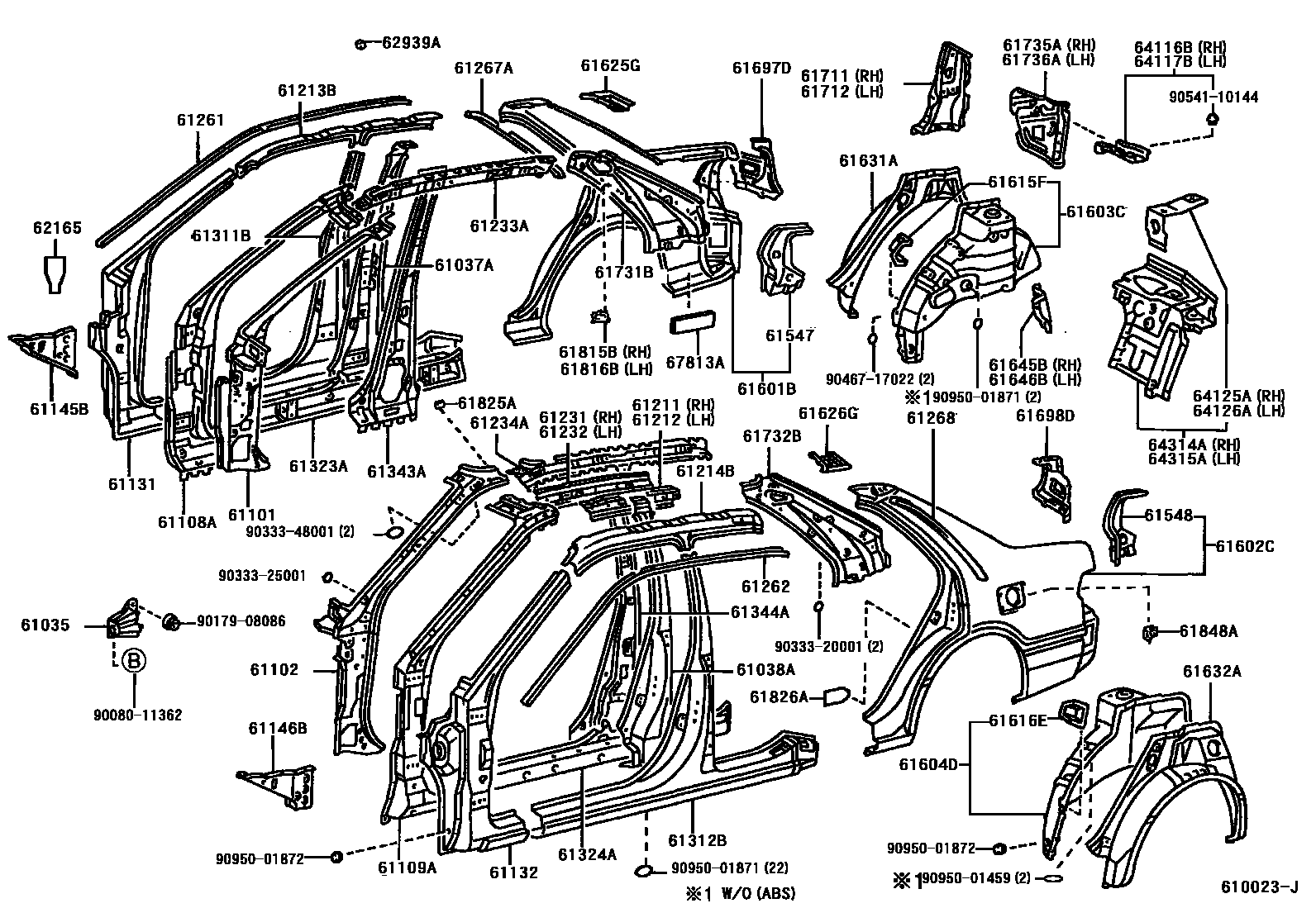

Toyota CAMRY 侧梁 — Figure 6101
Toyota CAMRY EPC diagram 6101, 侧梁, with 1 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61035 | Instrument panel to right front wall side bracket sub-assembly | 61165-AA010 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-AA900 · 61037-AA902 · 61037-AA903 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-AA900 · 61038-AA902 · 61038-AA903 |
| 61101 | Right front wall side panel sub-assembly | 61101-AA010 |
| 61102 | Left front wall side panel sub-assembly | 61102-AA010 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-AA900 · 61108-AA901 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-AA900 · 61109-AA901 |
| 61131 | Right body outer front upper pillar | 61131-AA020 |
| 61132 | Left body outer front upper pillar | 61132-AA020 |
| 61145B | Right body front pillar lower corner panel | 61145-AA010 |
| 61146B | Left body front pillar lower corner panel | 61146-AA010 |
| 61211 | Roof right outer longitudinal beam | 61211-AA020 |
| 61212 | Roof left outer longitudinal beam | 61212-AA020 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-AA020 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-AA010 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-AA020 · 61231-AA021 |
| 61232 | Roof left inner longitudinal beam | 61232-AA020 · 61232-AA021 |
| 61233A | No. 2 longitudinal beam inside the right side of the roof | 61233-AA021 · 61233-AA040 |
| 61234A | No. 2 longitudinal beam on the inner left side of the roof | 61234-33060 · 61234-AA020 · 61234-AA040 |
| 61261 | Drainage channel on the right side of the roof | 61261-AA020 |
| 61262 | Drainage channel on the left side of the roof | 61262-AA020 |
| 61267A | Roof right rear gutter | 61267-AA020 |
| 61268 | Roof left rear gutter | 61268-AA020 |
| 61311B | Right body outer center pillar | 61311-AA010 |
| 61312B | Left body outer center pillar | 61312-AA010 |
| 61323A | Right body center pillar lower reinforcement | 61401-AA900 · 61401-AA901 |
| 61324A | Left body center pillar lower reinforcement | 61402-AA900 · 61402-AA901 |
| 61343A | Right body inner center pillar | 61343-AA901 · 61343-AA902 · 61343-AA903 |
| 61344A | Left body inner center pillar | 61344-AA901 · 61344-AA902 · 61344-AA903 |
| 61547 | Inner right corner window pillar reinforcement | 61547-AA010 |
| 61548 | Inner left corner window pillar reinforcement | 61548-AA010 |
| 61601B | Right side enclosure sub-assembly | 61601-AA900 · 61601-AA901 · 61601-AA903 |
| 61602C | Left side enclosure sub-assembly | 61602-AA900 · 61602-AA901 |
| 61603C | Right wheel cover sub-assembly | 61607-AA900 |
| 61604D | Left side wheel cover sub-assembly | 61608-AA900 |
| 61615F | Right side enclosure outer panel reinforcement | 61615-33030 |
| 61616E | Left side enclosure outer panel reinforcement | 61616-33030 |
| 61625G | Right rear side panel extension | 61625-AA020 · 61625-AA030 |
| 61626G | Left rear side panel extension | 61626-AA020 · 61626-AA030 |
| 61631A | Right wheel cover outer panel | 61631-AA900 |
| 61632A | Left side wheel cover outer panel | 61632-AA900 |
| 61645B | Right rear side wheel housing corner panel | 61645-AA010 |
| 61646B | Left rear side wheel housing corner panel | 61646-AA010 |
| 61697D | Right side enclosure end cover | 61697-AA900 · 61697-AA901 |
| 61698D | Left side enclosure end cover | 61698-AA900 · 61698-AA901 |
| 61711 | Roof right side outer panel | 61711-AA020 |
| 61712 | Roof left outer panel | 61712-AA020 |
| 61731B | Roof right inner panel | 61731-AA010 · 61731-AA020 · 61731-AA021 |
| 61732B | Roof left inner panel | 61732-AA010 · 61732-AA020 · 61732-AA021 |
| 61735A | Right rear roof inner panel | 61071-AA010 · 61071-AA011 · 61735-AA010 · 61735-AA011 |
| 61736A | Left rear roof inner panel | 61072-AA010 · 61072-AA011 · 61736-AA010 · 61736-AA011 |
| 61815B | Right inner upper cover of the roof | 61815-AA020 |
| 61816B | Roof left inner upper cover | 61815-AA020 |
| 61825A | Noise Control Panel No. 2 | 61825-12010 |
| 61826A | Noise Control Panel No. 3 | 61826-AA010 |
| 61848A | Left side panel fixing | 61848-AA010 |
| 62165 | Right body outer front pillar lower panel | 62165-AA010 |
| 62939A | Side ventilation silencers | 62939-06010 |
| 64116B | Right rear upper reinforcement | 64116-AA010 |
| 64117B | Left rear upper reinforcement | 64117-AA010 |
| 64125A | Upper right back panel bracket | 64125-AA010 |
| 64126A | Upper left back panel bracket | 64126-AA010 |
| 64314A | Glove box bracket right reinforcement | 64304-AA900 |
| 64315A | Glove box bracket left reinforcement | 64305-AA900 |
| 67813A | Right side enclosure silencer panel | 67813-AA010 |
