Toyota CAMRY 中央扶手箱和支架 — Figure 5806

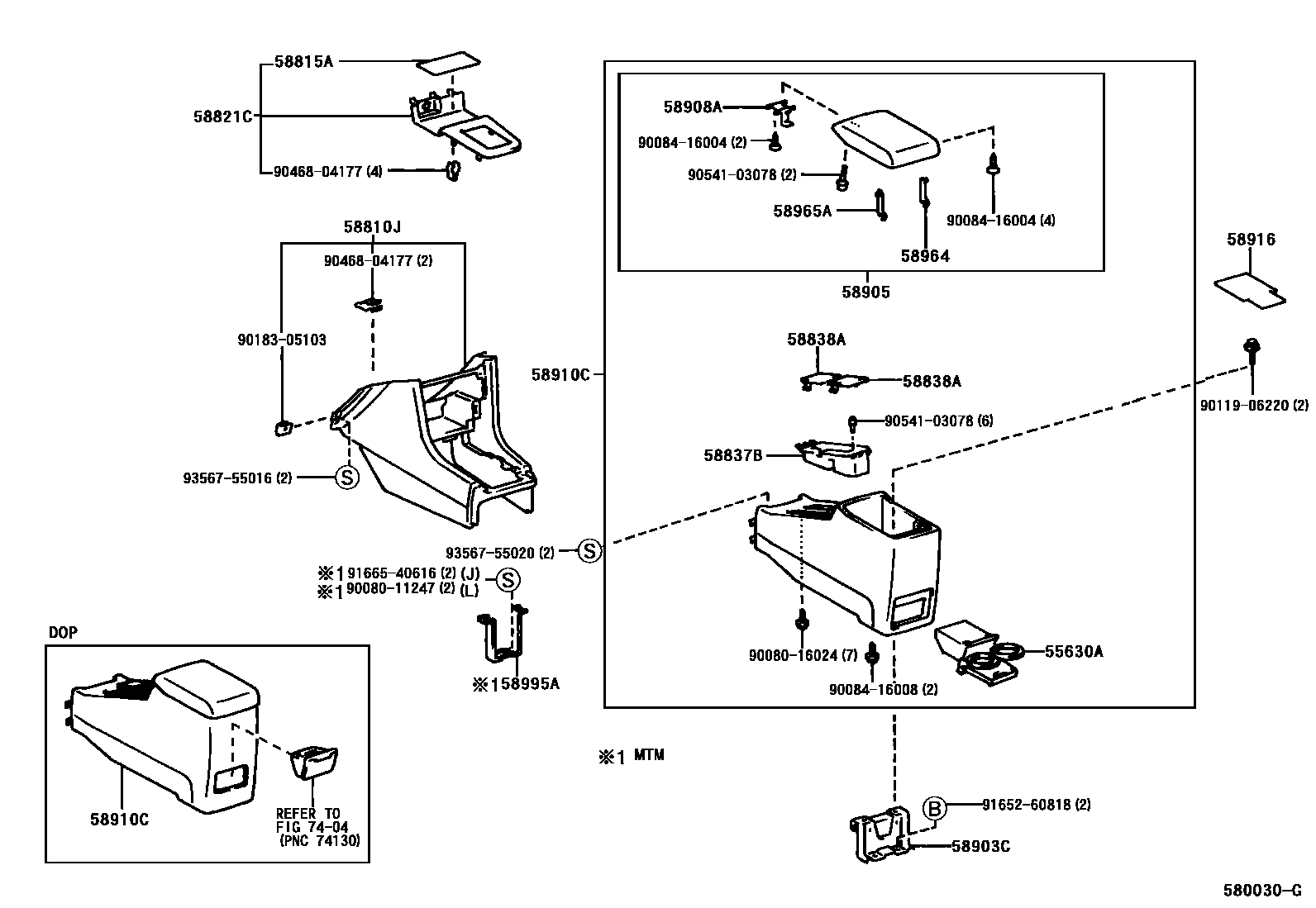

Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58821C | Armrest box upper panel | 58804-AA030 · 58804-AA040 |
| 58903C | Armrest box No. 2 mounting bracket | 58903-AA010 |
| 58908A | Armrest box lid lock assembly | 58908-AA010 |
| 58916 | Armrest box bottom pad | 58916-AA010 |
| 58964 | Armrest box cover No. 1 stop | 58964-AA010 |
| 58965A | Armrest box cover No. 2 stopper | 58965-AA010 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-AA010 |
