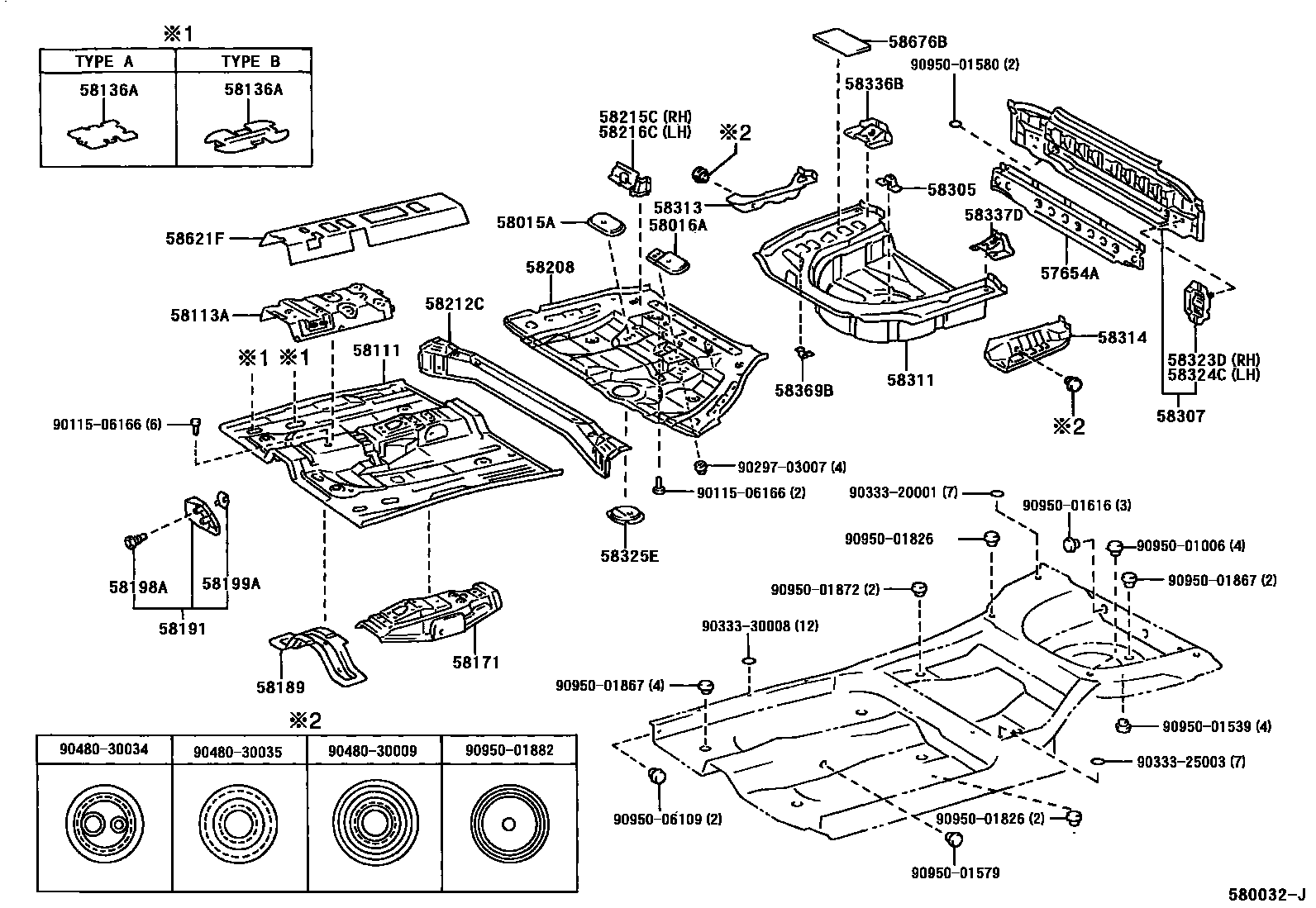

Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801
Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57654A | Rear floor beam No. 3 | 57654-06010 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-06010 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-06010 |
| 58111 | front floor pan | 58111-06020 · 58111-06021 |
| 58113A | front floor center panel | 58013-06010 |
| 58136A | Front floor access hole cover | 58136-12020 · 58136-33010 |
| 58171 | Parking brake base reinforcement | 58107-06010 |
| 58189 | Exhaust pipe clamp bracket reinforcement | 58189-06010 |
| 58191 | Front floor footrest | 58192-06020 |
| 58198A | No. 1 footrest clip | 58198-06010 |
| 58199A | Footrest clip No. 2 | 58199-06010 |
| 58208 | central floor base | 58211-06060 · 58211-06070 · 58211-06071 |
| 58212C | Center floor front floor | 58212-06010 |
| 58215C | Center floor No. 2 right reinforcement | 58215-06010 |
| 58216C | Center floor No. 2 left reinforcement | 58216-06010 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-33010 |
| 58307 | Body lower back panel sub-assembly | 58307-AA010 |
| 58311 | rear floor pan | 58311-06040 |
| 58313 | Rear floor right panel | 58305-06030 |
| 58314 | rear floor left panel | 58314-06030 |
| 58323D | Rear bumper arm bracket reinforcement | 58323-AA010 |
| 58324C | Rear bumper arm left bracket reinforcement | 58324-AA010 |
| 58325E | Rear floor access hole cover | 58325-06020 |
| 58336B | Rear floor pan reinforcement | 58336-33010 |
| 58337D | Rear floor bottom left reinforcement | 58337-33020 |
| 58369B | No. 3 fuel pipe bracket | 58369-06010 |
| 58621F | Center console silencer No. 1 | 58621-06010 · 58621-33030 |
| 58676B | Rear floor No. 1 right muffler pad | 58676-33010 |
