Toyota CAMRY 前围板和挡风玻璃 — Figure 5503

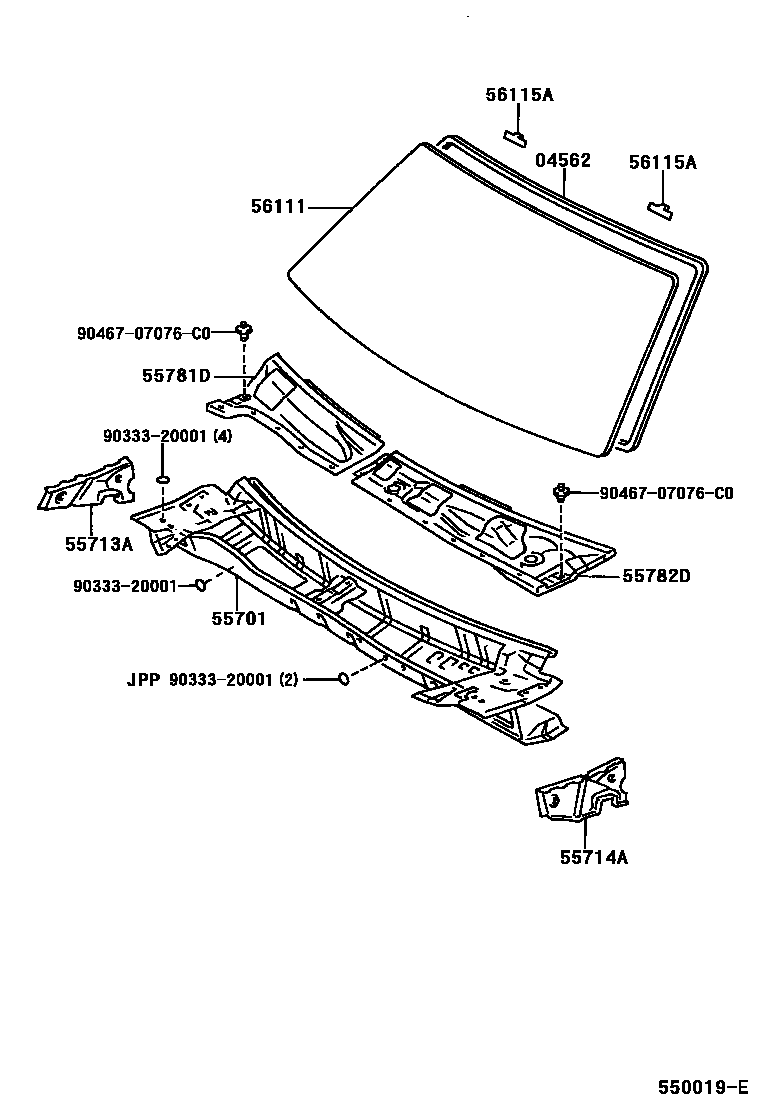

Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04562 | Windshield sealing strip assembly | 04562-12010 |
| 55701 | Front apron sub-assembly | 55700-06110 · 55700-06111 |
| 55713A | Right front wall upper side panel | 55713-06020 |
| 55714A | Left front wall upper side panel | 55714-06020 |
| 55781D | Ventilation grille on right front apron | 55781-AA010 · 55781-AA020 |
| 55782D | Ventilation grille on left front apron | 55782-AA010 · 55782-AA020 |
| 56111 | windshield | 56101-AA020 |
| 56115A | Windshield block No. 1 | 56115-33020 |
