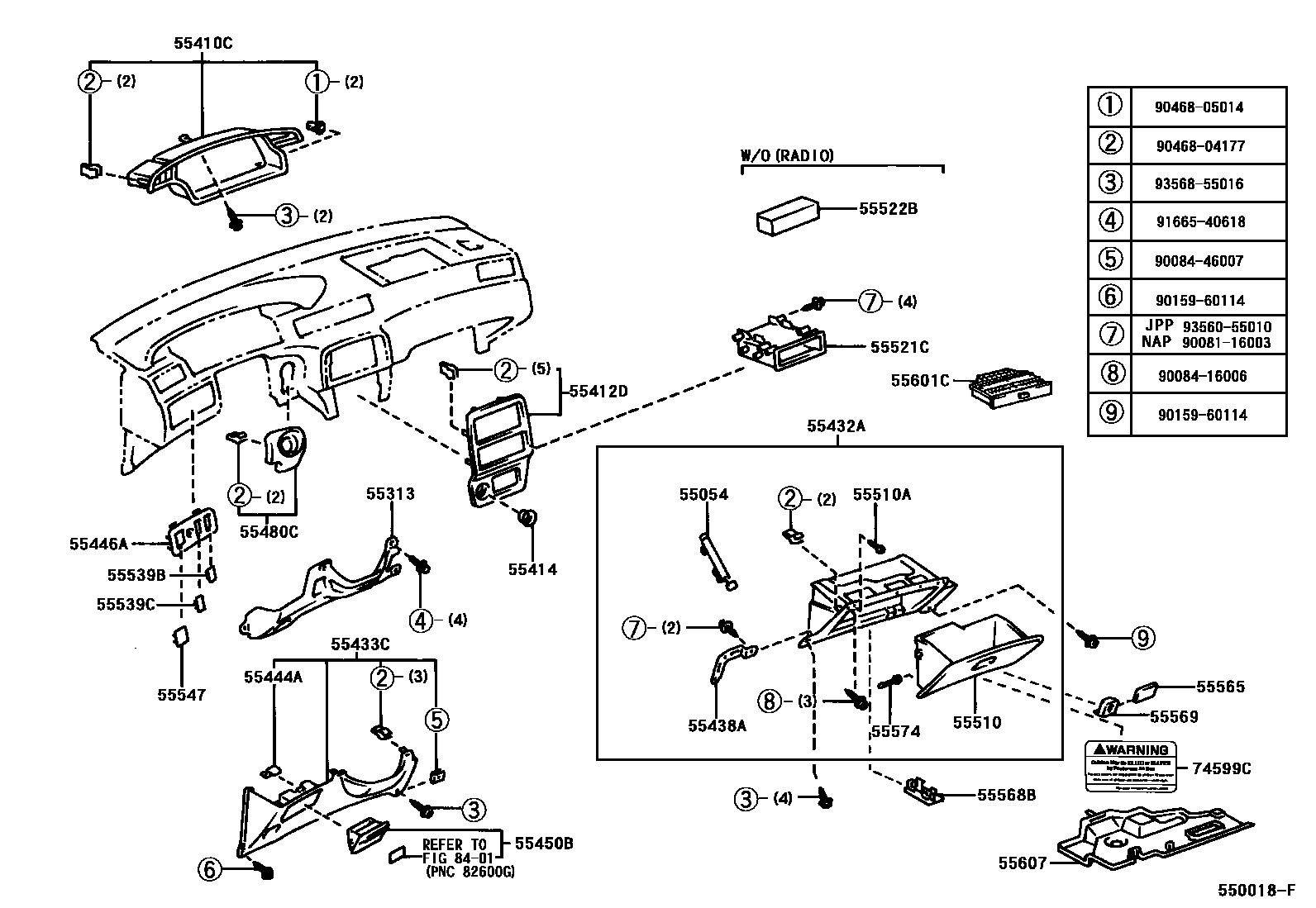

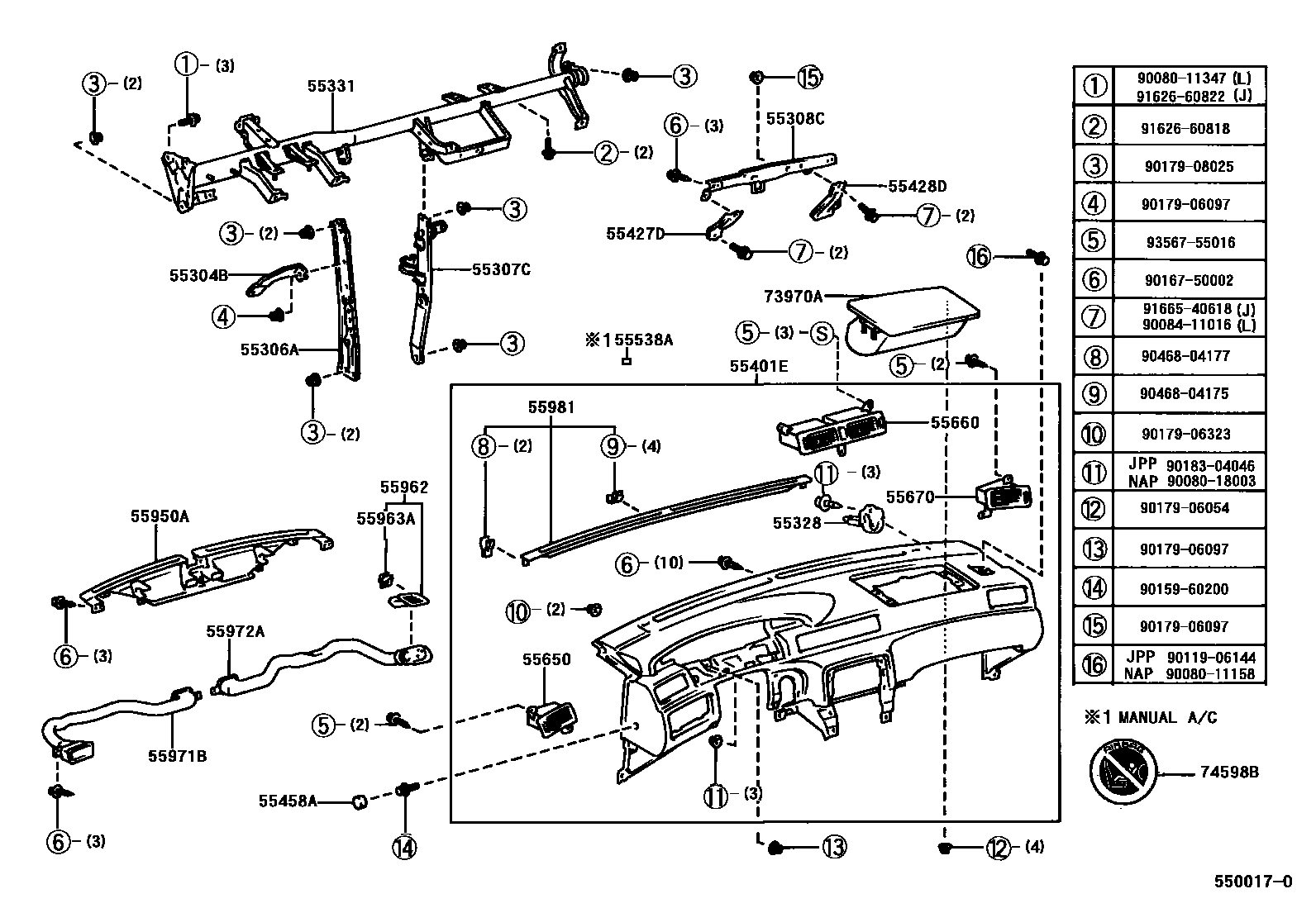

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-AA010 |
| 55304B | Instrument panel bracket mounting bracket sub-assembly | 55304-AA010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-AA010 · 55306-AA011 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-AA010 · 55307-AA011 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-33050 · 55308-AA010 |
| 55313 | lower left instrument panel | 55406-AA010 |
| 55328 | Instrument panel pin 1 | 55328-24010 |
| 55331 | Dashboard reinforcement | 55330-AA010 |
| 55410C | Instrument cluster decorative panel assembly | 55410-33040 · 55410-AA010 · 55410-AA020 |
| 55412D | Center instrument cluster decorative panel | 55405-AA010 · 55405-AA020 |
| 55414 | Cigarette lighter hole frame | 55477-06010 |
| 55427D | Instrument panel No. 1 decorative panel lower fixing part | 55427-AA010 |
| 55428D | Instrument panel No. 2 decorative panel lower fixing piece | 55428-AA010 |
| 55438A | Instrument panel No. 2 decorative panel fixings | 55438-AA010 |
| 55444A | Dashboard storage box spring | 55444-AA010 · 55444-AA020 |
| 55446A | No. 1 switch hole seat | 55446-AA010 · 55446-AA020 |
| 55510A | Cushion (for glovebox lid) | 90541-05020 |
| 55521C | stereo system hole cover | 55520-AA010 |
| 55522B | Radio tuner opening cover | 55522-33010 |
| 55538A | Cooler switch hole cover | 55538-06010 |
| 55539B | No. 2 spare switch hole cover | 55539-AA010 |
| 55539C | Spare switch hole cover | 55539-33060 · 55539-AA010 |
| 55547 | Remote control rearview mirror hole cover | 55547-AA010 |
| 55568B | Glove box cover decorative panel | 55568-AC010 |
| 55574 | Glove box cover hinge shaft | 55574-01010 |
| 55601C | Instrument panel bottom support sub-assembly | 55601-06010 · 55601-33010 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-AA010 |
| 55950A | Defroster nozzle assembly | 55950-AA010 |
| 55963A | Side defroster fixings | 55963-33020 · 90084-46031 |
| 55971B | Side defroster No. 1 nozzle air duct | 55971-AA010 |
| 55972A | Side defroster No. 2 nozzle air duct | 55970-AA010 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-AA010 · 55981-AA020 · 55981-AA030 · 55981-AA040 |
| 74598B | Passenger air bag warning label | 74598-20010 |
| 74599C | Driver and passenger air bag information labels | 74599-06010 · 74599-50010 |
