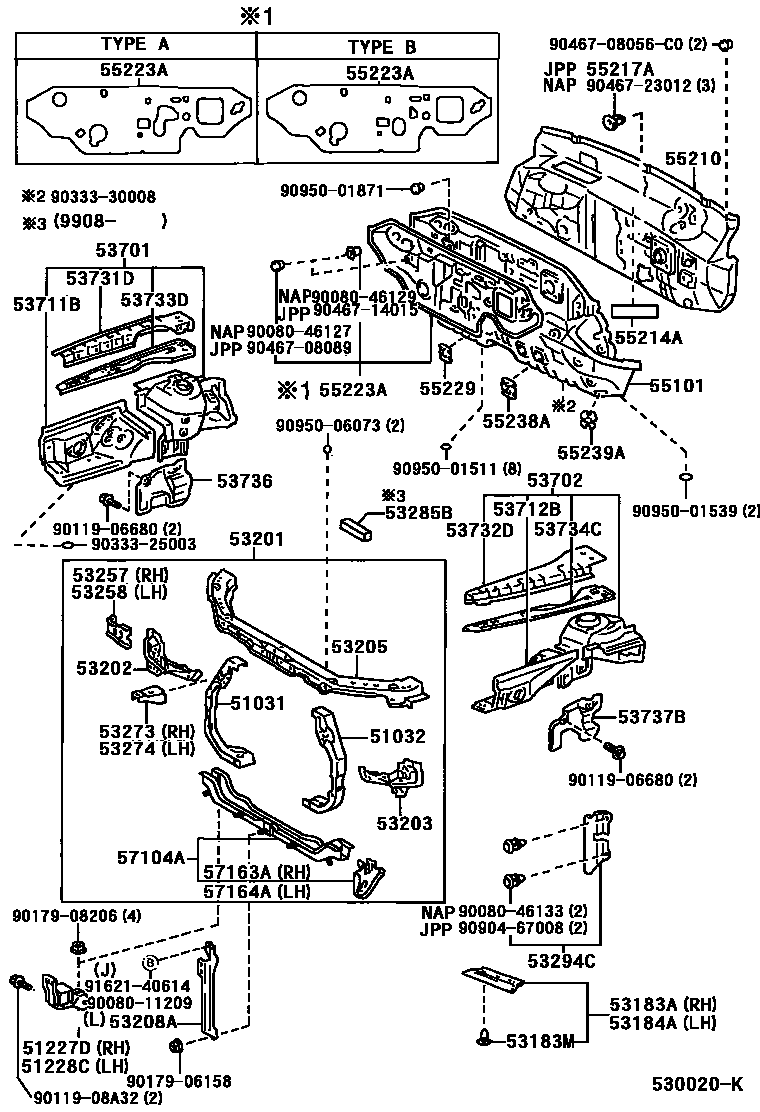

Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304
Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51031 | Front cross member right corner plate sub-assembly | 51031-06010 · 51031-06900 |
| 51032 | Front cross member left side corner plate sub-assembly | 51032-06010 · 51032-06900 |
| 51227D | Right front suspension cross member shock absorber counterweight | 51227-33020 |
| 51228C | front suspension cross member plate | 51228-33010 |
| 53183A | Right headlight cover seal | 53183-AA010 |
| 53183M | Clip (for headlight cover seal) | 90080-46010 |
| 53184A | Left headlight cover seal | 53184-AA010 |
| 53201 | Radiator bracket sub-assembly | 53201-06040 · 53201-06041 · 53201-06042 · 53201-06060 |
| 53202 | Radiator right side bracket sub-assembly | 53211-06010 · 53211-06030 |
| 53203 | Radiator left bracket sub-assembly | 53203-06030 · 53203-06031 · 53203-06050 |
| 53205 | Radiator upper bracket sub-assembly | 53205-06010 · 53205-06011 · 53205-06030 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-AA010 · 53215-06010 · 53215-33020 |
| 53257 | Mounting bracket on the right side of the front end plate | 53257-06010 |
| 53258 | Front panel left mounting bracket | 53257-06010 |
| 53273 | Front bumper arm right mounting bracket | 53273-33030 |
| 53274 | Front bumper arm left mounting bracket | 53273-33030 |
| 53285B | Radiator side 1 air seal | 53285-33040 |
| 53294C | Radiator left baffle | 53294-06020 · 53294-33020 |
| 53701 | Right front fender fender sub-assembly | 53701-06040 · 53701-06041 · 53701-06042 · 53701-06043 |
| 53702 | Left front fender fender sub-assembly | 53702-06040 · 53702-06041 · 53702-06042 |
| 53711B | Right front fender front fender | 53711-06040 · 53711-06041 |
| 53712B | Left front fender front fender | 53712-06010 |
| 53731D | Right front fender to cowl side upper beam | 53731-06011 · 53731-06050 |
| 53732D | Left front fender to cowl side upper beam | 53732-06011 · 53732-06040 |
| 53733D | Right front fender to cowl side front lower beam | 53733-06900 |
| 53734C | Left front fender to cowl side front lower beam | 53734-06900 |
| 53736 | Right front fender fender seal | 53736-06020 · 53736-08010 |
| 53737B | Left front fender fender seal | 53737-06010 · 53737-08010 |
| 55101 | Front apron sub-assembly | 55101-06160 |
| 55210 | Front wall insulation pad assembly | 55210-06030 |
| 55214A | No. 2 insulation pad for front wall panel | 55214-06010 |
| 55217A | Front apron muffler fixings | 55217-32010 |
| 55223A | Front wall outer heat insulation pad | 55223-06030 · 55223-33070 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-33010 |
| 55238A | Front wall heat shield No. 2 | 55238-33010 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-33010 |
| 57104A | Front cross member sub-assembly | 57104-07010 · 57104-33020 |
| 57163A | No. 1 front cross member right reinforcement | 57163-33020 |
| 57164A | No. 1 front cross member left reinforcement | 57164-33020 |
