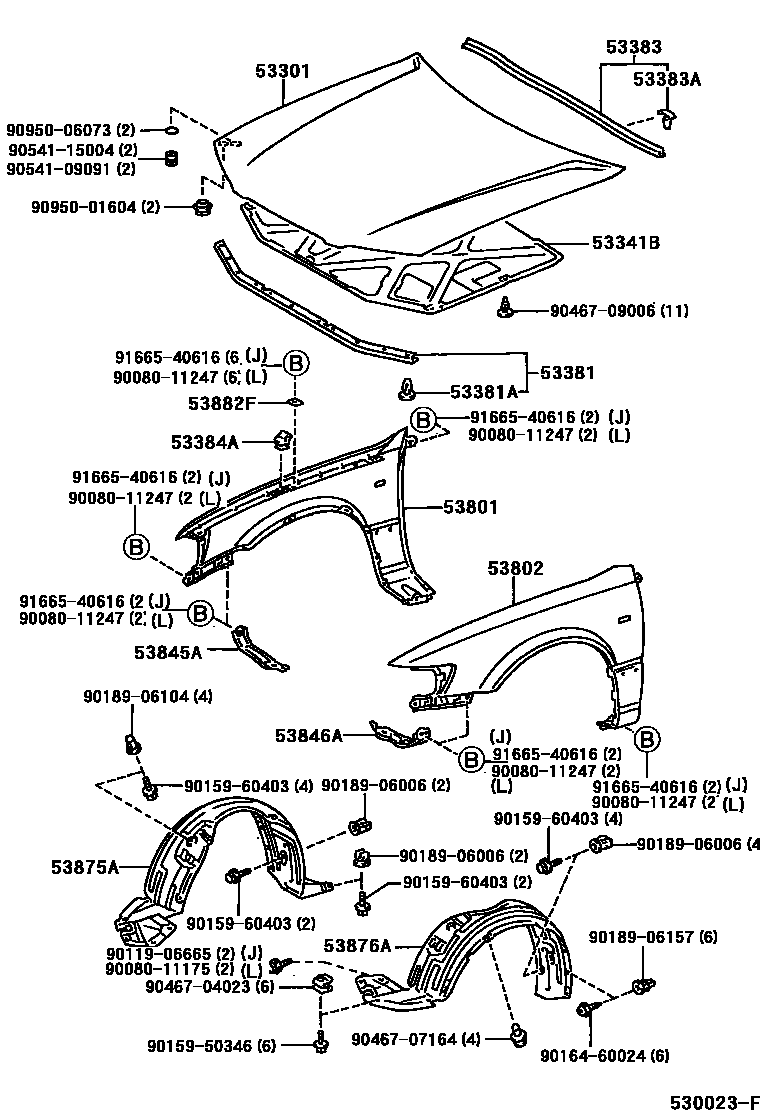

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-AA010 · 53301-AA020 · 53301-AA040 |
| 53341B | engine cover gasket | 53341-06030 · 53341-06031 · 53341-33050 |
| 53381 | Engine cover to radiator bracket seal | 53381-AA010 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90080-46010 |
| 53383 | Engine cover to cowl upper cover seal | 53383-AA010 · 53383-AA020 |
| 53383A | Clamp (for engine cover to cowl upper cover seal) | 90467-08101 |
| 53384A | fender to engine cover buffer block | 53384-AA010 |
| 53801 | Right front fender sub-assembly | 53811-AA010 · 53811-AA020 |
| 53802 | Left front fender sub-assembly | 53812-AA010 · 53812-AA020 |
| 53845A | Right front fender fender stay | 53845-AA010 |
| 53846A | Left front fender fender stay | 53846-AA010 |
| 53875A | Right front fender lining | 53875-06020 · 53875-06021 |
| 53876A | Left front fender lining | 53876-06020 · 53876-06021 |
| 53882F | front fender seal | 53882-16030 |
