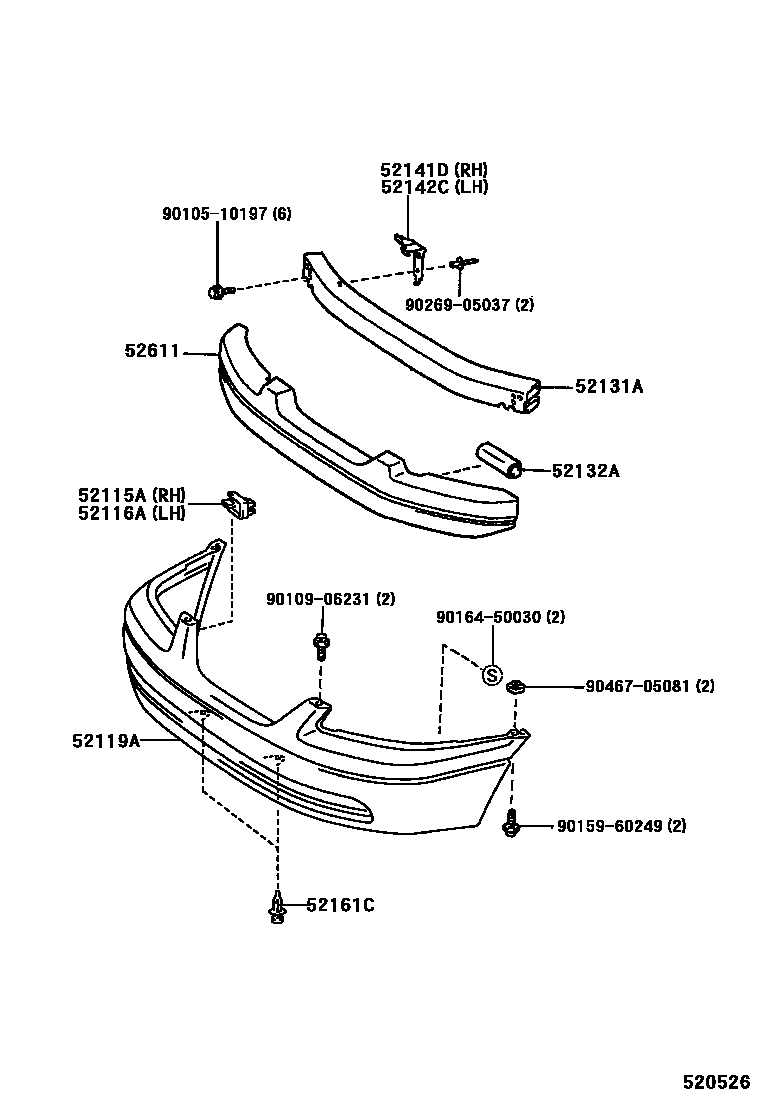

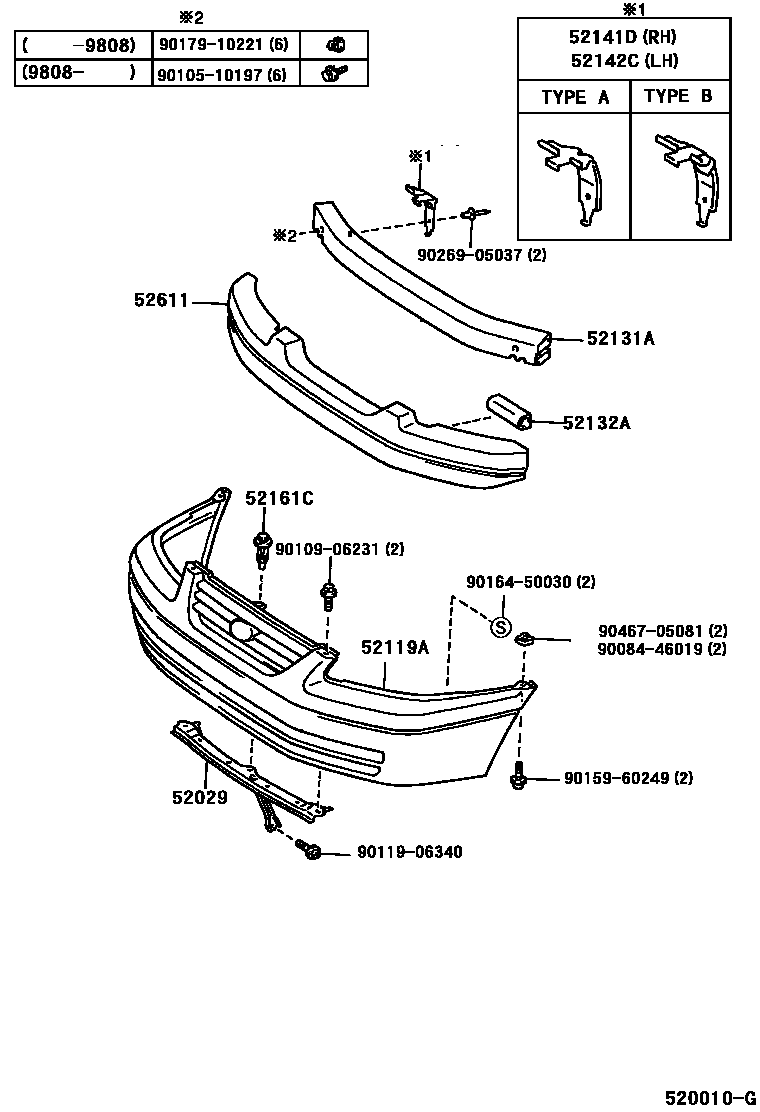

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-33050 |
| 52115A | Front bumper right side bracket | 52115-AA010 |
| 52116A | Front bumper left bracket | 52116-AA010 |
| 52119A | front bumper cover | 52119-AA901 · 52119-AA902 · 52119-AA903 |
| 52131A | Front bumper reinforcement | 52131-AA020 · 52131-AA040 |
| 52132A | No. 2 front bumper reinforcement | 52132-33020 · 52132-AA020 · 52132-AA021 |
| 52141D | Front bumper right side stay | 52081-33010 · 52141-AA010 · 52141-AA020 |
| 52142C | Front bumper left stay | 52082-33010 · 52142-AA010 · 52142-AA020 |
| 52161C | front bumper insert | 52161-02020 · 90467-09127 |
| 52611 | front bumper energy absorber | 52611-AA020 · 52611-AA030 |
