Toyota CAMRY 制动配管和卡箍 — Figure 4708
Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 6 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

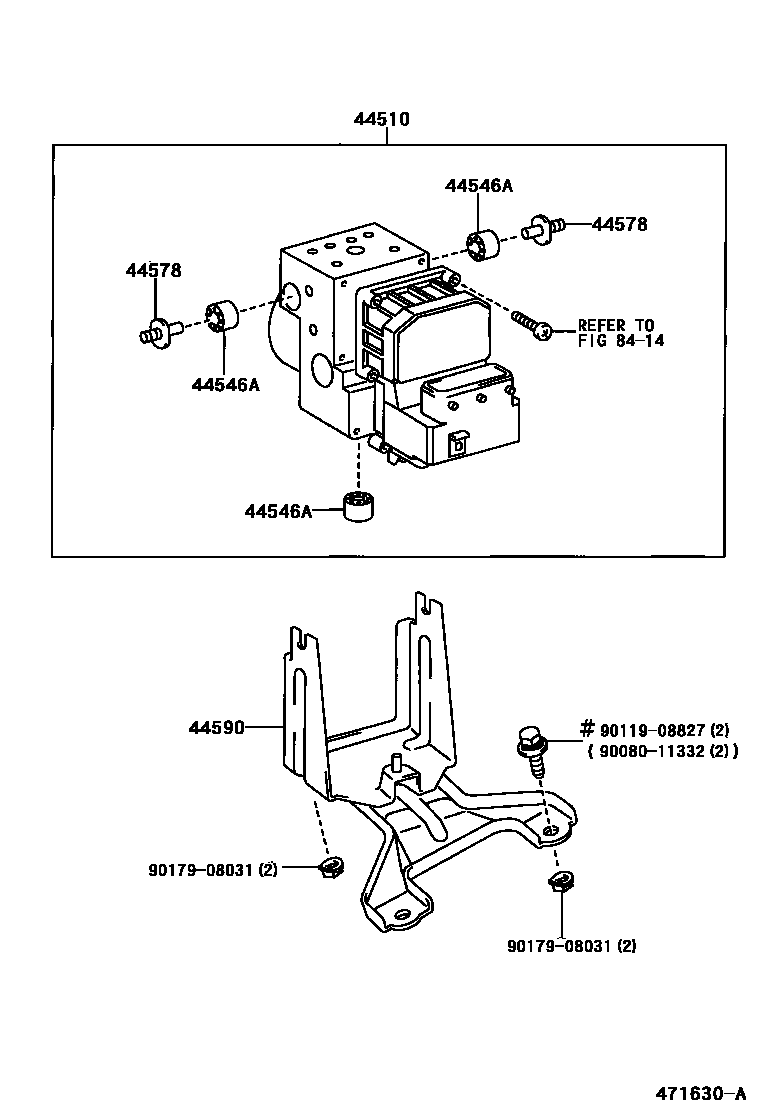

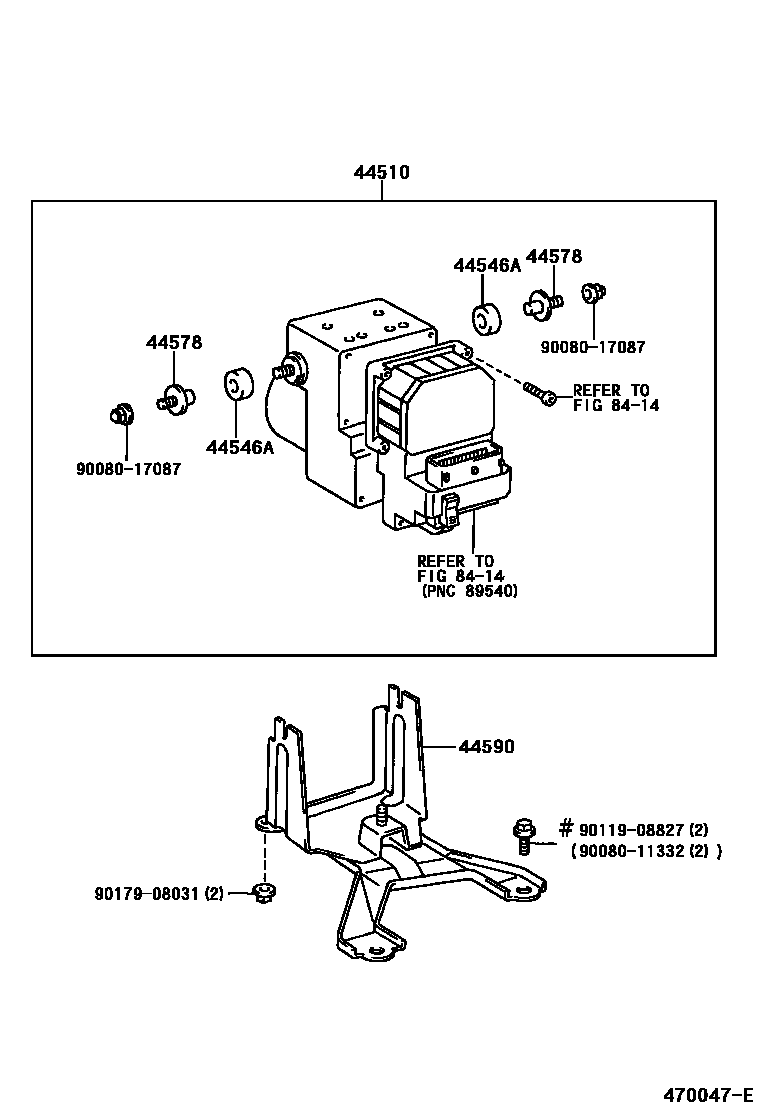

| 44510 | brake actuator assembly | 44050-06010 · 44050-06040 · 44050-06041 · 44510-06020 |

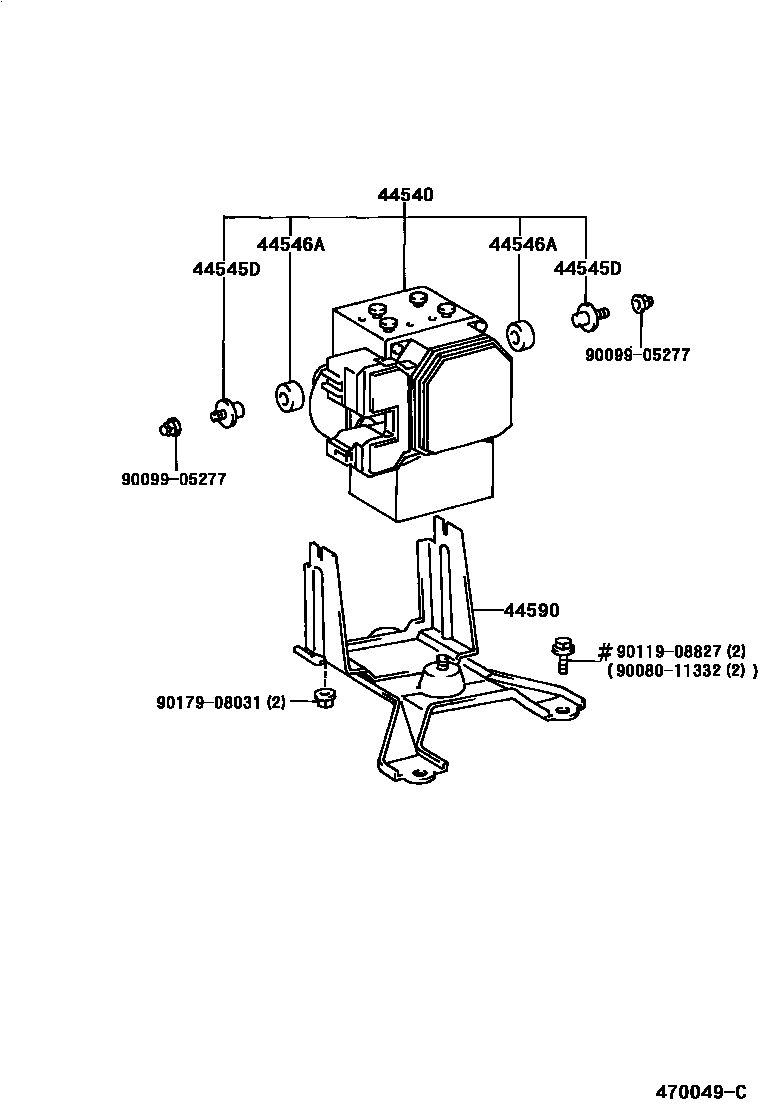

| 44540 | ABS and traction actuator assembly | 44050-33030 · 44540-33010 |
| 44545D | Brake actuator bolt mount | 44545-42020 |
| 44546A | Brake actuator bolt cushion | 44546-06020 · 44546-42020 |
| 44578 | Brake actuator cushion bolt | 44578-06020 |
| 44590 | Brake actuator bracket assembly | 44590-06030 · 44590-33030 · 44590-33050 |
| 47150 | Proportional valve assembly | 47150-12250 · 47150-16050 · 47150-20240 · 47150-20270 · 47150-33020 · 47150-33030 · 47150-44020 |

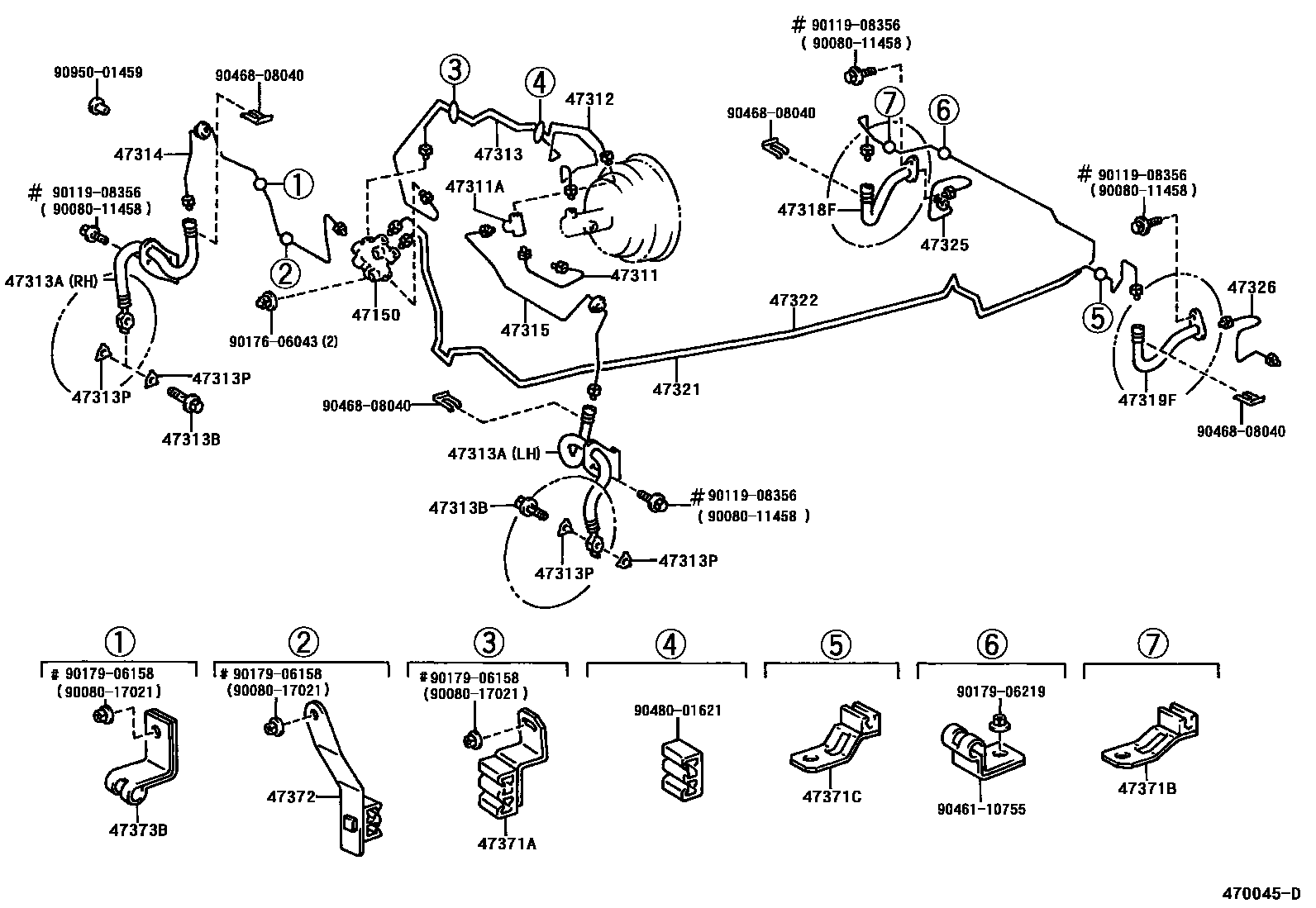

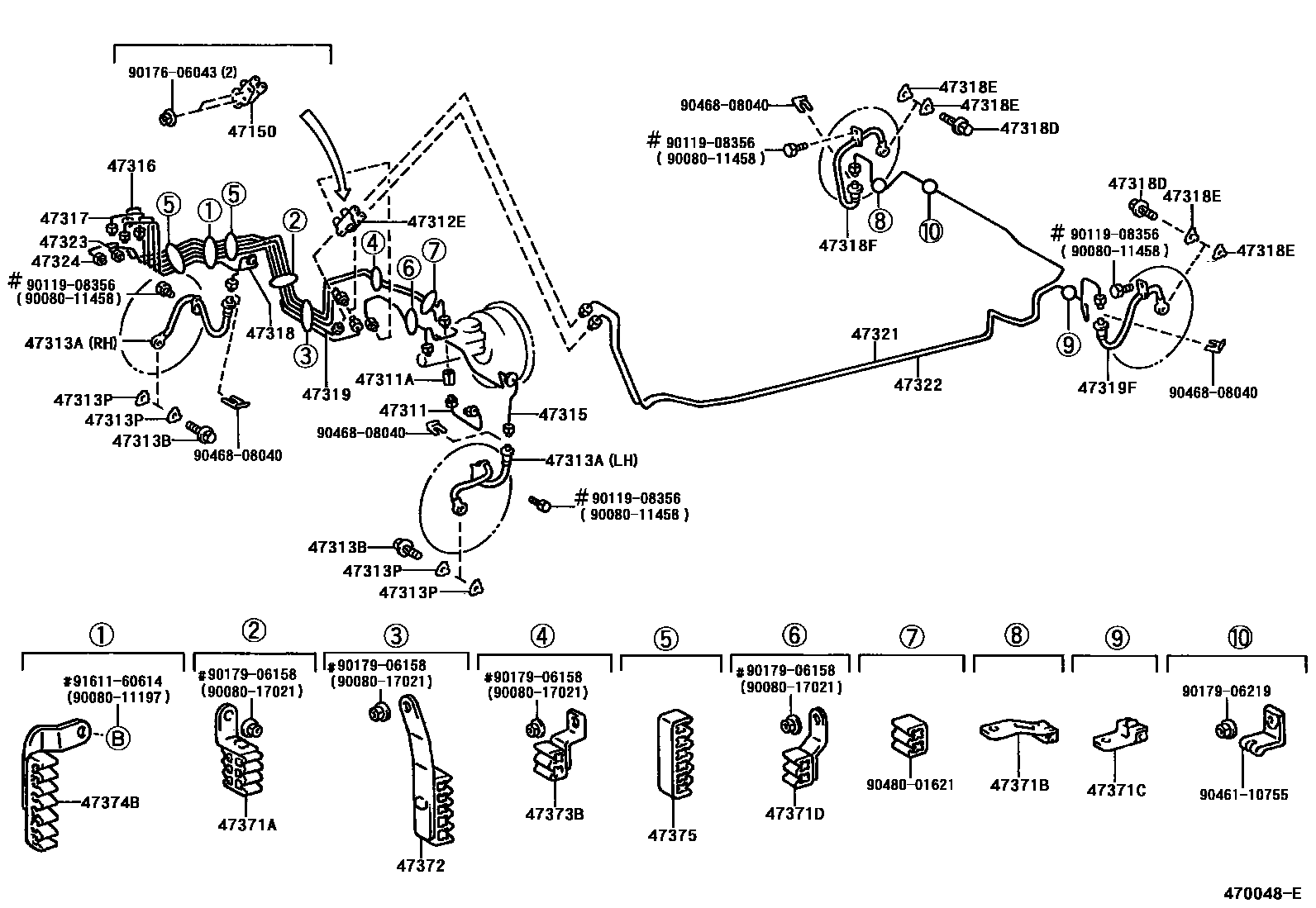

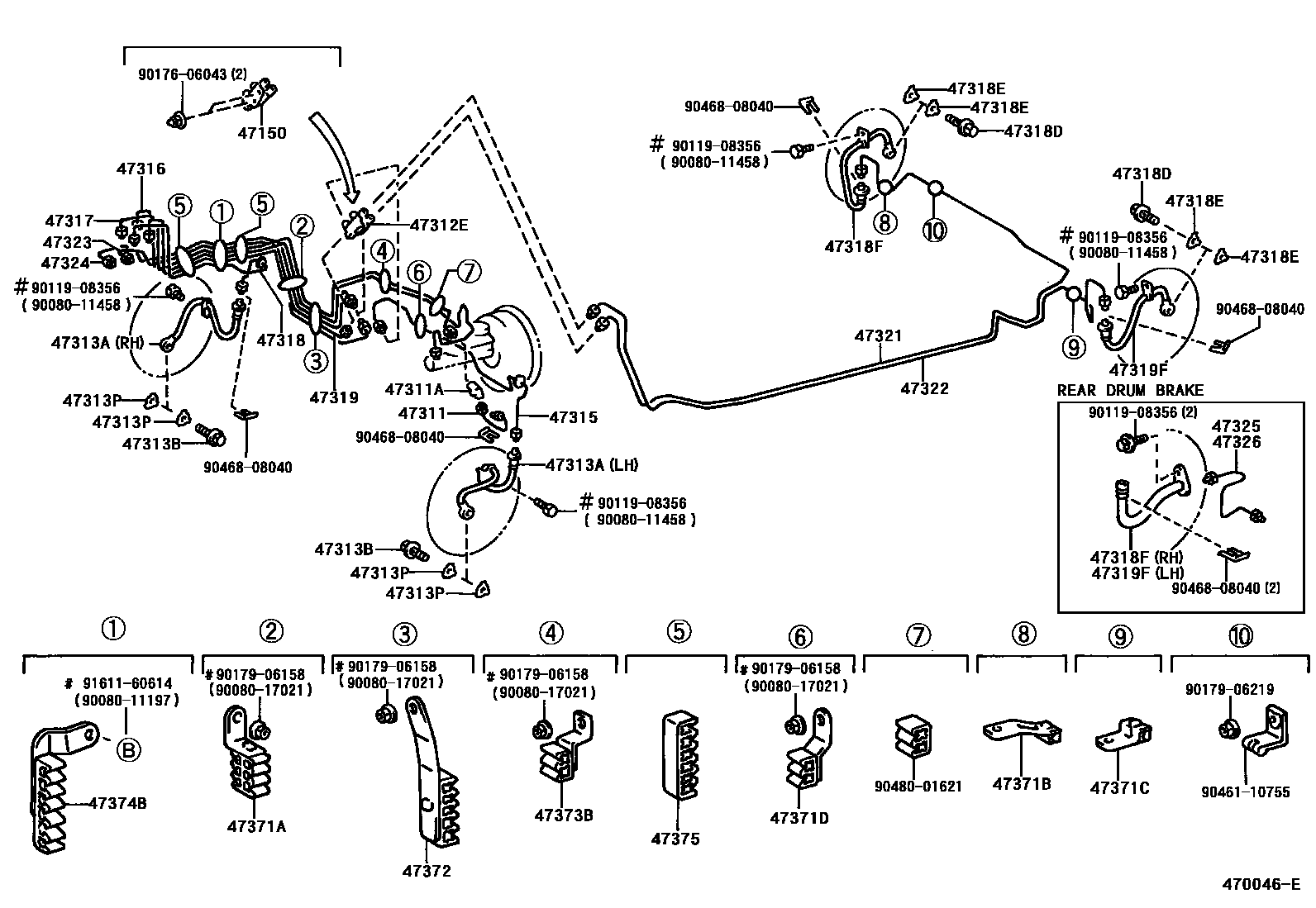

| 47311 | No. 1 front brake pipe | 47311-07010 · 47311-33030 · 47311-33050 |
| 47311A | Pipe fitting (for front brake pipe) | 90904-12025 · 90904-12039 · 90904-13011 |
| 47312 | No. 2 front brake pipe | 47312-06040 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90904-12026 · 90904-12038 |
| 47313 | No. 3 front brake pipe | 47313-06040 |
| 47313A | No. 1 front flexible hose | 90080-94033 · 90080-94034 · 90080-94094 · 90080-94095 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313P | Gasket (for front flex hose) | 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-06040 |
| 47315 | No. 5 front brake pipe | 47315-06070 · 47315-06080 |
| 47316 | No. 6 front brake pipe | 47316-06100 · 47316-06101 · 47316-06110 |
| 47317 | No. 7 front brake pipe | 47317-06080 · 47317-06081 · 47317-06090 |
| 47318 | No. 8 front brake pipe | 47318-06020 · 47318-06060 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 |
| 47318E | Gasket (for rear flex hose) | 90430-10074 |
| 47318F | Right rear flexible hose | 90080-94018 · 90080-94035 · 90080-94096 · 90080-94098 |
| 47319 | No. 9 front brake pipe | 47319-06060 · 47319-06061 · 47319-06070 |
| 47319F | Left rear flexible hose | 90080-94019 · 90080-94036 · 90080-94097 · 90080-94099 |
| 47321 | No. 1 rear brake pipe | 47321-06050 |
| 47322 | No. 2 rear brake pipe | 47322-06050 |
| 47323 | No. 3 rear brake pipe | 47323-06070 · 47323-06071 · 47323-06080 |
| 47324 | No. 4 rear brake pipe | 47324-06070 · 47324-06071 · 47324-06080 |
| 47325 | No. 5 rear brake pipe | 47323-06020 |
| 47326 | No. 6 rear brake pipe | 47324-06020 |
| 47371A | No. 1 brake pipe clamp | 47371-33110 · 47371-33130 |
| 47371B | No. 6 brake pipe clamp | 47371-32130 |
| 47371C | No. 7 brake pipe clamp | 47371-32140 |
| 47371D | No. 8 brake pipe clamp | 47371-33090 |
| 47372 | No. 2 brake pipe clamp | 47371-33120 · 47371-33200 · 47371-33240 · 47371-33250 |
| 47373B | No. 3 brake pipe clamp | 47371-33130 · 90461-10755 |
| 47374B | No. 4 brake pipe clamp | 47371-33100 |
| 47375 | No. 5 brake pipe clamp | 90949-01A60 |
