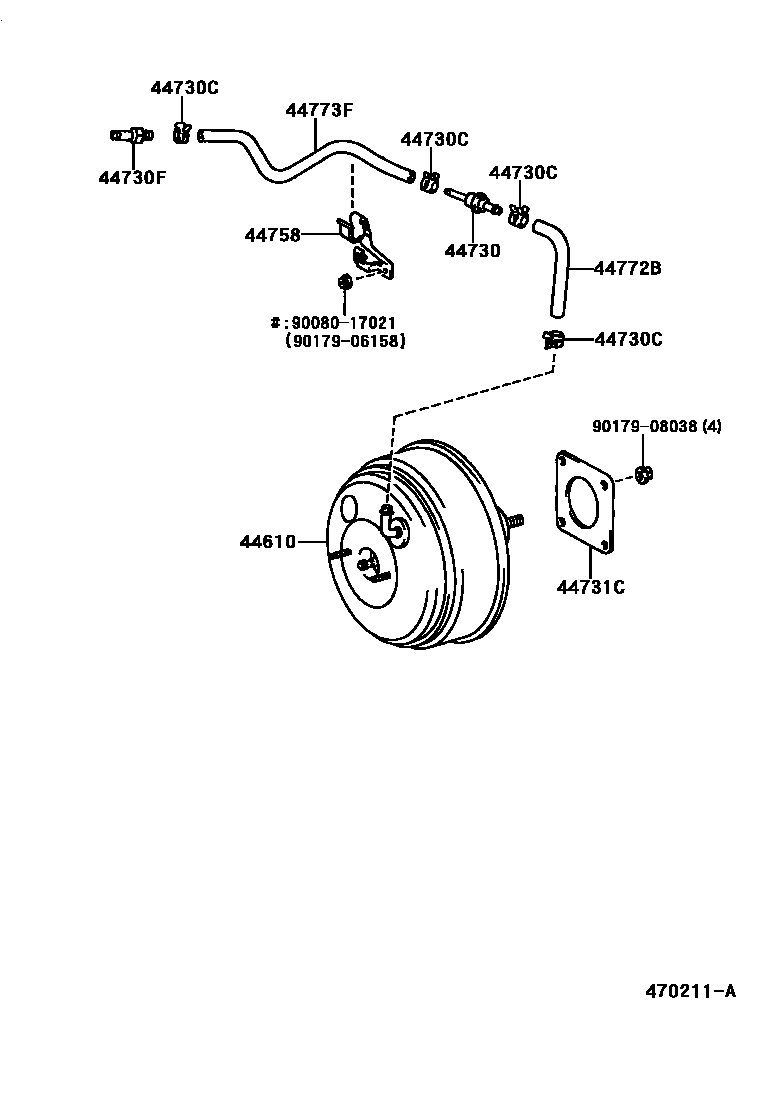

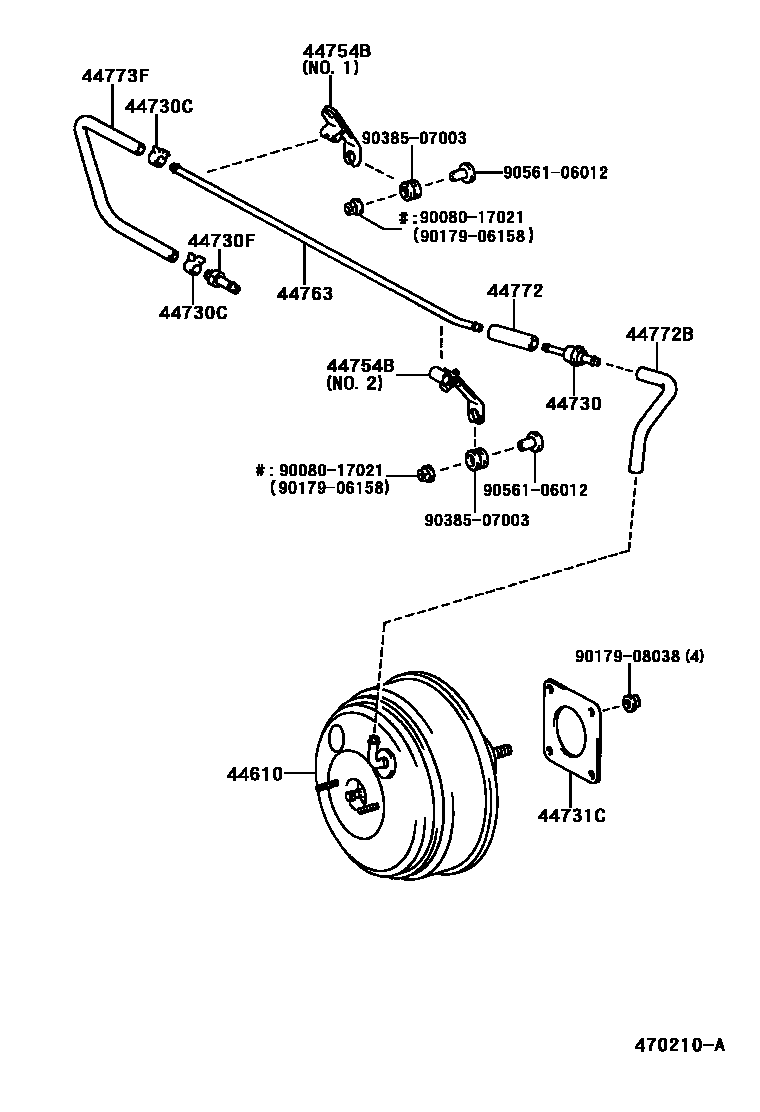

Toyota CAMRY 制动助力器和真空管 — Figure 4703
Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-06130 · 44610-06140 · 44610-06150 · 44610-06170 · 44610-06180 · 44610-06190 · 44610-06200 · 44610-33580 · 44610-33590 · 44610-33600 · 44610-33610 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-10010 |
| 44730C | Clip (for vacuum hose) | 90467-16002 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51076 · 90404-51319 |
| 44731C | brake booster bracket | 44731-33010 |
| 44754B | Vacuum tube holder | 44758-06010 · 44758-06020 |
| 44758 | Vacuum check valve bracket | 44758-33020 |
| 44763 | booster vacuum tube | 44763-06010 |
| 44772 | Hoses (check valve to connector tube) | 44772-06020 |
| 44772B | Hoses (check valve to brake booster) | 44772-06010 · 44772-07010 |
| 44773F | Hoses (connector to check valve) | 44773-06020 · 44774-06010 |
