Toyota CAMRY Parking Brake & Cable — Figure 4601

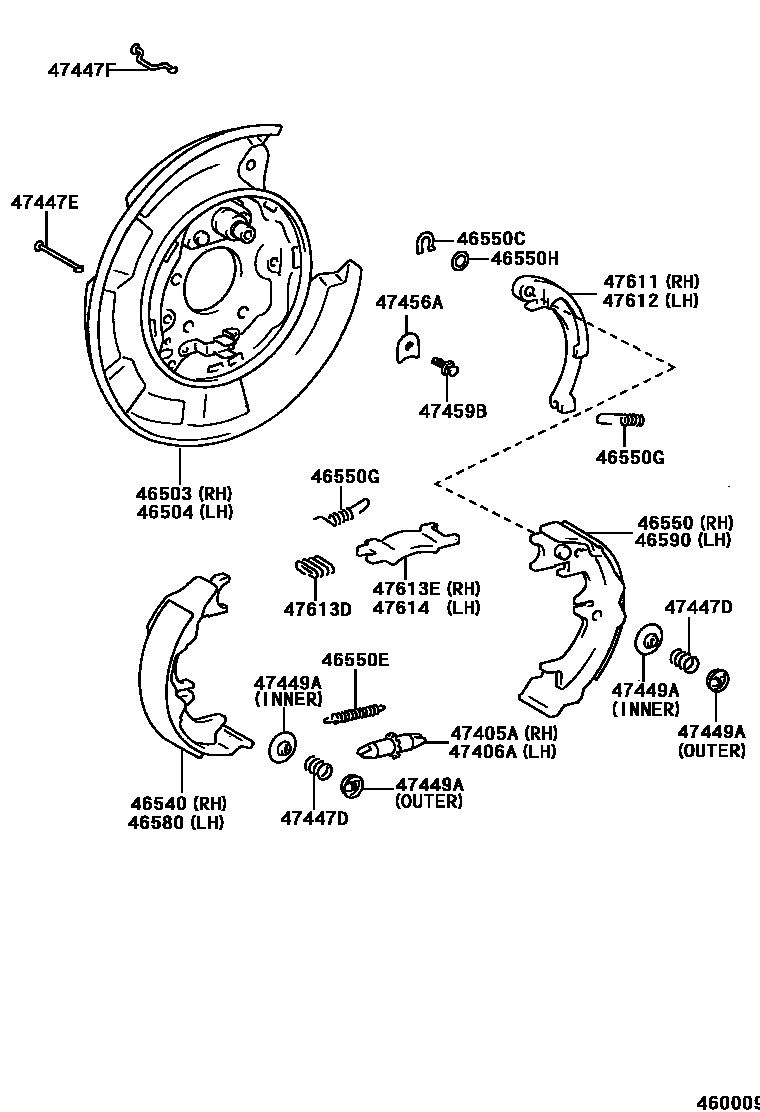

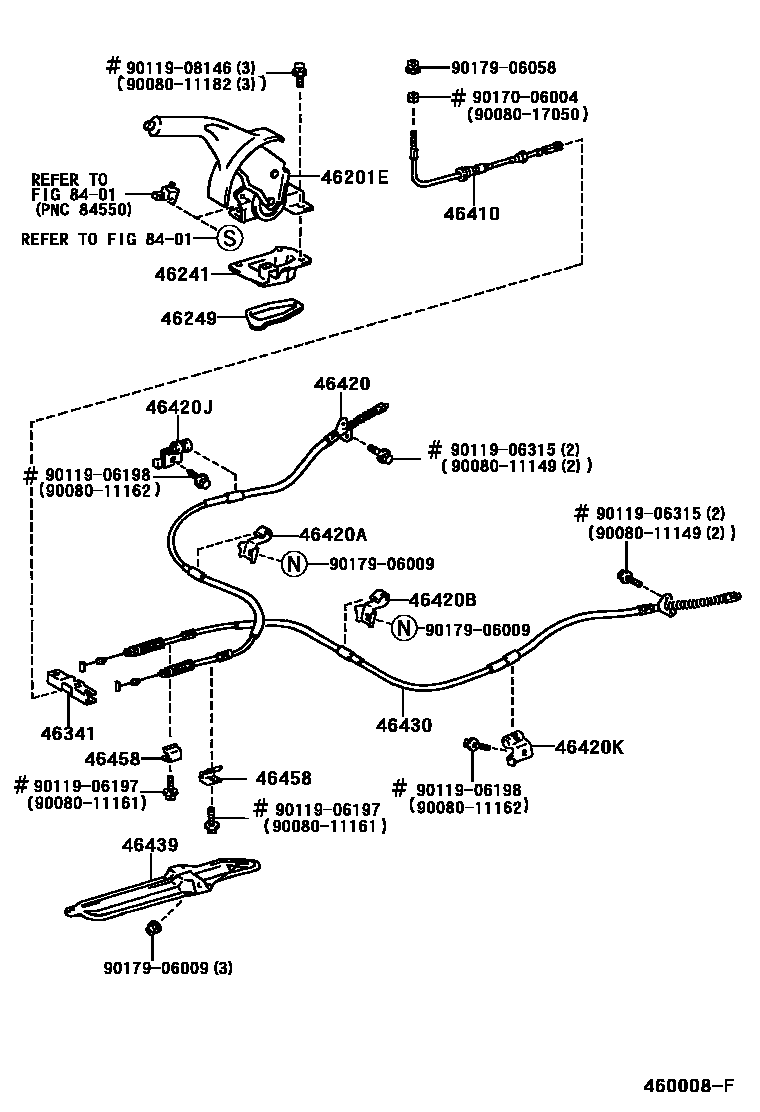

Toyota CAMRY EPC diagram 4601, Parking Brake & Cable, with 2 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46241 | Parking brake lever dust cover | 46241-06020 |
| 46249 | Parking brake hole cover | 46249-06020 |
| 46341 | Parking brake balancer | 46341-AA010 |
| 46410 | Parking brake cable assembly No. 1 | 46410-06020 |
| 46420 | Parking brake No. 2 cable assembly | 46420-06030 · 46420-33050 |
| 46420A | Clamp No. 1 (for parking brake cable) | 90949-01663 |
| 46420B | Clamp No. 2 (for parking brake cable) | 90949-01664 · 90949-01B08 |
| 46420J | Clamp No. 3 (for parking brake cable) | 90949-01A66 |
| 46420K | Clamp No. 4 (for parking brake cable) | 90949-01A67 |
| 46430 | Parking brake No. 3 cable assembly | 46430-06030 · 46430-33050 |
| 46439 | Parking brake cable insulation pad | 46439-06010 |
| 46458 | Cable fixings | 46458-28010 · 46458-AC010 |
| 46503 | Right parking brake pad sub-assembly | 46503-20010 |
| 46504 | Left parking brake pad sub-assembly | 46504-20010 |
| 46540 | No. 1 right or middle parking brake shoe assembly | 46540-20060 |
| 46550 | No. 2 right or middle parking brake shoe assembly | 46550-20060 |
| 46550C | C-shaped washer (for parking brake shoe) | 90213-07018 |
| 46550E | No. 2 tension spring (used for parking brake shoe return) | 90506-12010 |
| 46550G | No. 3 tension spring (used for parking brake shoe return) | 90507-16009 |
| 46550H | Spacer (for parking brake shoe) | 90564-09184 · 90564-09185 · 90564-09186 |
| 46580 | No. 1 left parking brake shoe assembly | 46540-20060 |
| 46590 | No. 2 left parking brake shoe assembly | 46590-20060 |
| 47405A | Right brake shoe adjustment screw assembly (for parking brake) | 47405-30040 |
| 47406A | Left brake shoe adjustment screw assembly (for parking brake) | 47406-30040 |
| 47447D | Compression spring (for parking brake shoe limit) | 90501-14049 |
| 47447E | No. 1 brake shoe limit spring pin (for parking brake) | 47447-20030 |
| 47447F | No. 2 brake shoe limit spring pin (for parking brake) | 47447-22020 |
| 47449A | No. 1 brake shoe limit spring seat (for parking brake) | 47449-30030 · 47449-32010 |
| 47456A | Brake shoe guide (for parking brake) | 47456-33010 |
| 47459B | Brake shoe guide fixing bolt (for parking brake) | 47459-30010 |
| 47611 | Right parking brake shoe lever | 47611-20030 |
| 47612 | Left parking brake shoe lever | 47612-20030 |
| 47613D | Compression spring (for parking brake shoe push rod) | 90504-14002 |
| 47613E | Right parking brake shoe push rod | 47613-20040 |
| 47614 | Left parking brake shoe push rod | 47614-20010 |
