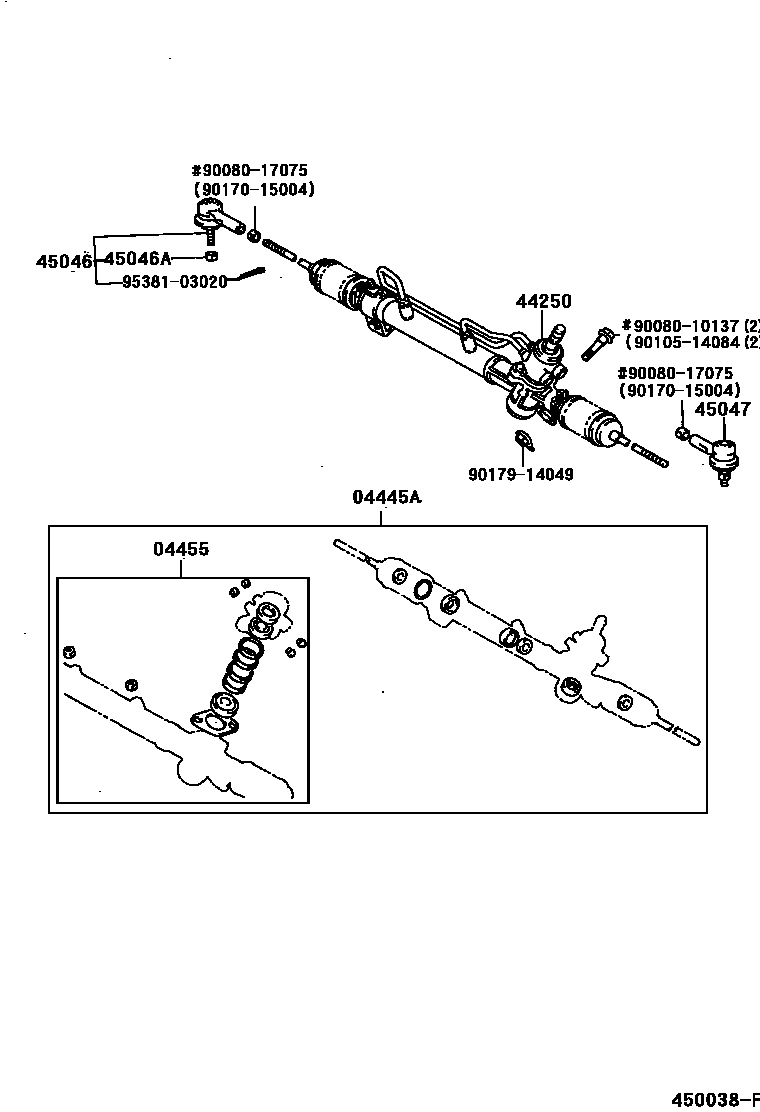

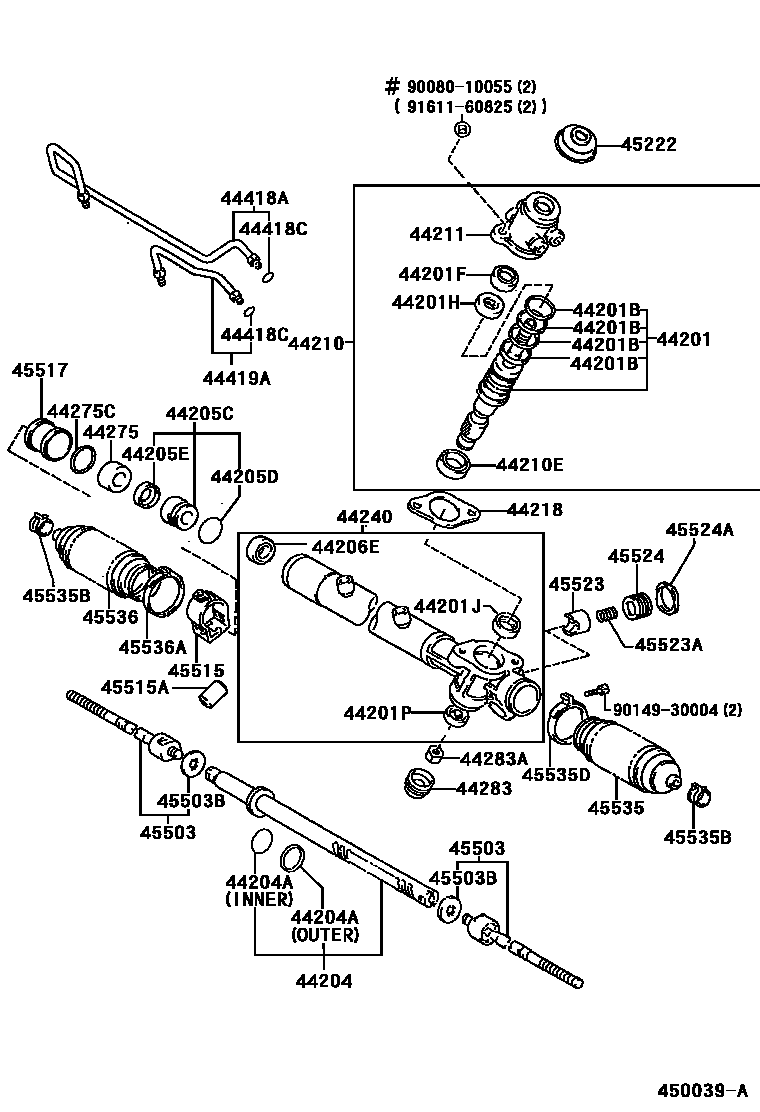

Toyota CAMRY 前转向齿轮和连杆 — Figure 4505
Toyota CAMRY EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-06030 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-06020 |
| 44201 | Power steering control valve sub-assembly | 44201-33130 · 44201-33140 |
| 44201B | Spacer (for power steering control valve) | 90560-33003 |
| 44201F | Oil seal (for power steering control valve) | 90080-31016 |
| 44201H | Bearing (for upper power steering control valve) | 90080-36031 |
| 44201J | Bearing (for central power steering control valve) | 90080-36044 |
| 44201P | Bearing (for lower power steering control valve) | 90363-12013 |
| 44204 | Power steering rack sub-assembly | 44204-06010 · 44204-06020 · 44204-07010 |
| 44204A | Ring (for steering rack piston) | 90080-30022 · 90080-56013 |
| 44205C | Power steering rack bushing sub-assembly | 44205-06010 · 44205-06020 · 44205-07010 |
| 44205D | O-ring (for power steering rack bushing) | 90080-30025 |
| 44205E | Oil seal (for power steering rack bushing) | 90080-31010 · 90080-31041 |
| 44206E | No. 1 oil seal (for power steering cylinder barrel) | 90080-31038 · 90080-31042 |
| 44210 | Power steering control valve assembly | 44210-06070 · 44210-06080 · 44210-06100 · 44210-07071 |
| 44210E | Oil seal (for power steering control valve) | 90080-31015 |
| 44211 | control valve housing | 44211-06010 · 44211-07020 |
| 44218 | valve housing gasket | 44218-06010 |
| 44240 | Power steering rack housing assembly | 44240-06030 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-06090 · 44250-06110 · 44250-06120 · 44250-07061 |
| 44275 | Cylinder end stop | 44275-06020 |
| 44275C | Coil (for cylinder end stop) | 90080-58122 |
| 44283 | Rack housing cover | 44283-06010 |
| 44283A | Nut (for rack housing cover) | 90080-17078 · 90179-10048 |
| 44418A | Right steering pressure oil pipe | 44418-07010 |
| 44418C | O-ring (for steering pressure oil pipe) | 90080-30023 |
| 44419A | Left steering pressure oil pipe | 44419-07010 |
| 45046 | Right tie rod end sub-assembly | 45046-09020 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-09020 |
| 45222 | Steering gear dust cover | 45222-06010 · 45222-0C010 |
| 45503 | Steering rack end sub-assembly | 45503-09030 · 45503-39135 |
| 45503B | Jaw washer (for steering rack end) | 90080-21005 · 90080-21008 · 90214-14002 |
| 45515 | No. 2 steering rack housing bracket | 45515-06011 |
| 45515A | Steering rack housing bracket collar | 90080-38062 · 90386-15004 |
| 45517 | No. 2 steering rack housing seal | 45517-06020 · 45517-06030 |
| 45523 | Rack guide block (for steering gear) | 45504-06010 |
| 45523A | Spring (for steering gear rack guide block) | 90080-50159 |
| 45524 | Steering rack guide block spring cover | 45524-06010 |
| 45524A | Nut (for steering rack guide spring cover) | 44142-06010 |
| 45535 | No. 1 steering rack dust cover | 45535-06020 |
| 45535B | Clamp (for steering rack dust boot) | 90080-46153 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90080-46152 · 90461-08688 |
| 45536 | No. 2 steering rack dust cover | 45535-06020 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90080-46152 · 90461-08688 |
