Toyota CAMRY 叶片泵和储油罐(动力转向) — Figure 4502

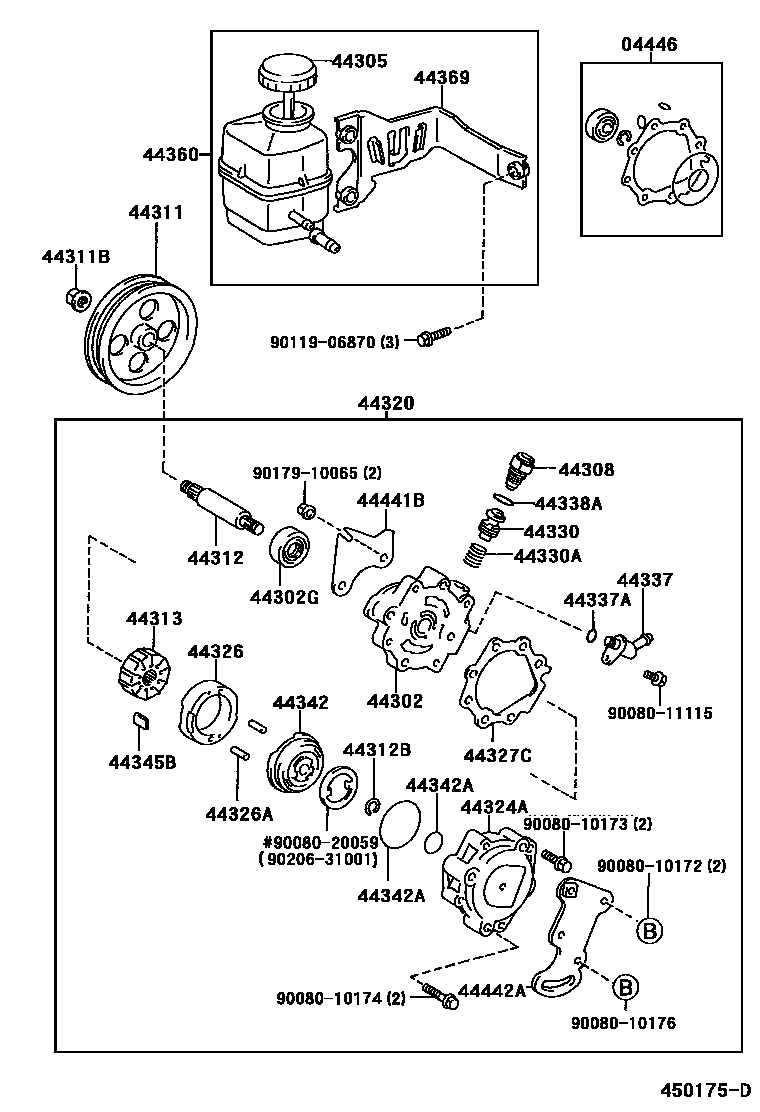

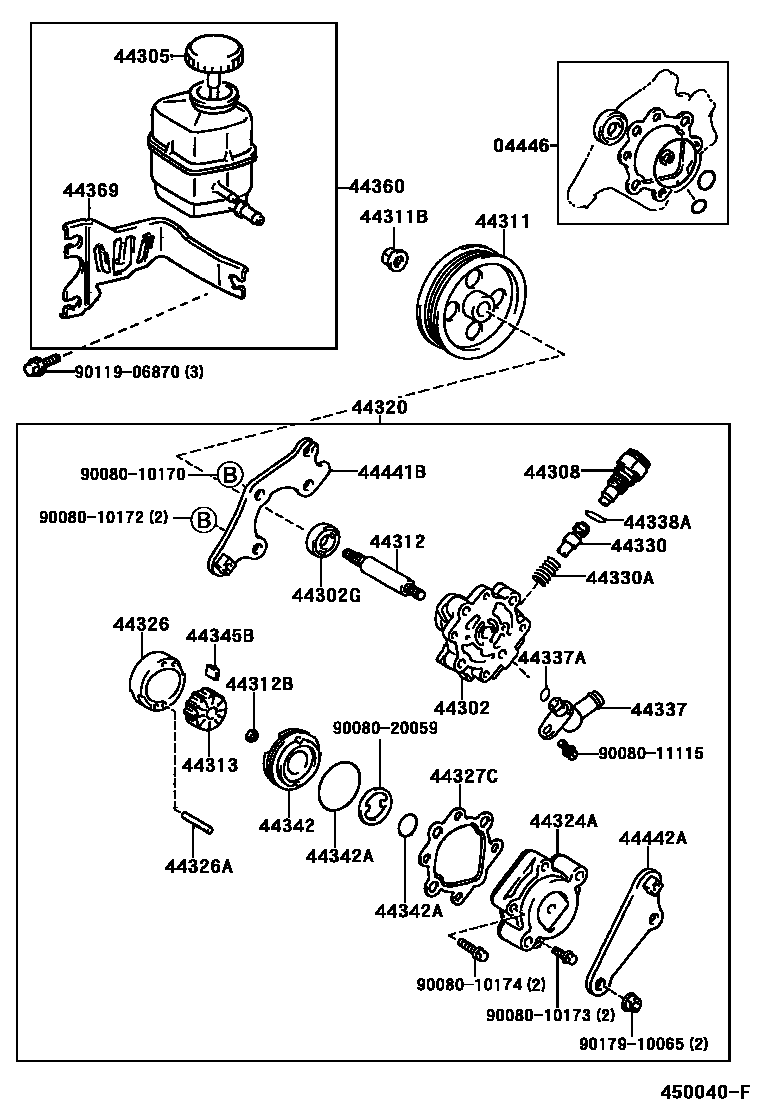

Toyota CAMRY EPC diagram 4502, 叶片泵和储油罐(动力转向), with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-04010 · 04446-06030 · 04446-06040 |
| 44302 | Front vane pump housing sub-assembly | 44302-06021 · 44302-07011 |
| 44302G | No. 2 oil seal (for vane pump housing) | 90080-31020 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-06010 |
| 44308 | Pressure hole connector sub-assembly | 44308-33060 |
| 44311 | vane pump pulley | 44311-06010 · 44311-07010 · 44311-07020 |
| 44311B | Nut (for vane pump pulley) | 90178-12003 · 90179-12022 |
| 44312 | vane pump shaft | 44312-06010 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90080-52033 |
| 44313 | vane pump rotor | 44313-06010 · 44313-06020 · 44313-06030 · 44313-06040 · 44313-06050 |
| 44320 | Vane pump assembly | 44320-06030 · 44320-07011 · 44320-07012 |
| 44324A | Pump back shell | 44324-06010 · 44324-07010 |
| 44326 | Cam ring (for vane pumps) | 44325-06010 · 44325-06020 · 44325-06030 · 44325-06040 · 44325-06050 |
| 44326A | Direct sales (for vane pump cam rings) | 90080-25024 · 90250-04071 |
| 44327C | Vane pump casing gasket | 44327-04010 · 44327-26010 |
| 44330 | Flow control valve assembly | 44330-06130 · 44330-06140 · 44330-06150 · 44330-06160 · 44330-06170 · 44330-06180 · 44330-26011 · 44330-26021 · 44330-26031 · 44330-26041 · 44330-26051 · 44330-26061 |
| 44330A | Compression spring (for flow control valve) | 90080-50221 · 90501-13034 |
| 44337 | Power steering suction port connector | 44337-06010 · 44337-07010 |
| 44337A | O-ring (for power steering oil suction port) | 90080-30034 |
| 44338A | O-ring (for pressure port connector) | 90080-30035 |
| 44342 | Vane pump rear end cover | 44342-06010 |
| 44342A | O-ring (for vane pump rear end cover) | 90080-30031 · 90080-30032 |
| 44345B | vane pump disc | 44345-04010 · 44345-04020 · 44345-04030 · 44345-04040 · 44345-04050 · 44345-26010 · 44345-26020 · 44345-26030 · 44345-26040 · 44345-26050 |
| 44360 | Vane pump oil storage tank assembly | 44360-06010 |
| 44369 | No. 1 oil storage tank bracket | 44390-06010 |
| 44441B | Pump front bracket | 44441-06010 · 44441-07010 · 44441-07011 |
| 44442A | Vane pump rear bracket | 44442-06010 · 44442-07010 |
