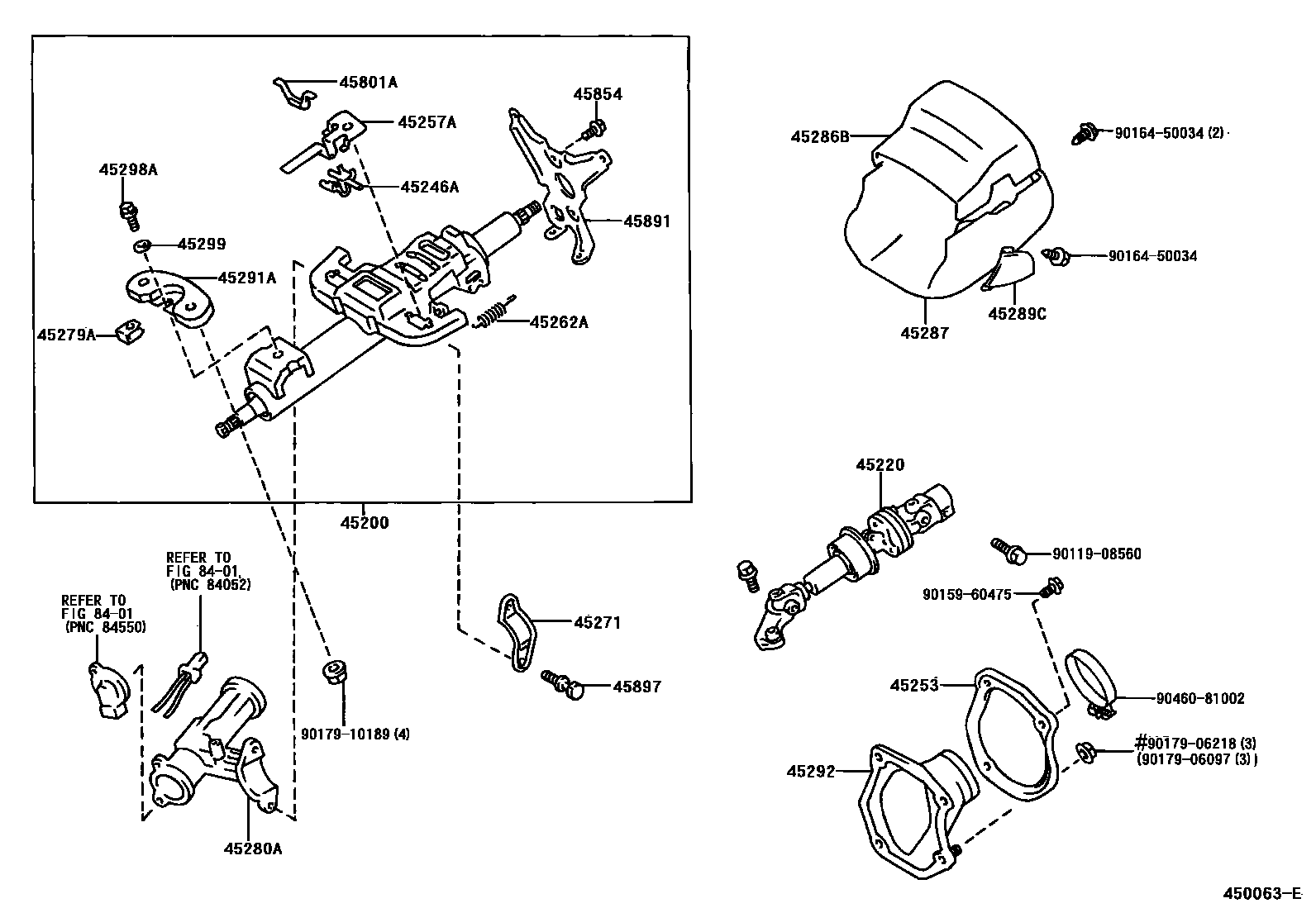

Toyota CAMRY Steering Column & Shaft — Figure 4501
Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45200 | Steering column assembly | 45250-06300 |
| 45220 | Steering intermediate shaft assembly | 45220-06010 |
| 45246A | Steering energy absorbing sheet guide bush | 45246-06010 |
| 45253 | Steering column hole cover | 45253-06010 |
| 45257A | Steering column energy absorbing sheet | 45257-06020 |
| 45262A | Tilt adjustment lever return spring | 45262-06010 |
| 45271 | Clamp on steering column | 45271-12060 |
| 45279A | Steering column tube lower connecting piece | 45279-06010 |
| 45280A | Steering column upper bracket assembly | 45280-33080 |
| 45291A | Steering column tube bracket | 45291-06010 |
| 45292 | Dust-proof sealing ring under spindle | 45292-06010 |
| 45298A | Steering column down tube bolt | 45298-06010 |
| 45299 | Steering column down tube gasket | 45299-06010 |
| 45801A | Steering energy absorption pin sub-assembly | 45875-06010 |
| 45854 | Turn signal bracket bolt | 45854-06010 · 45854-06020 |
| 45891 | turn signal bracket | 45891-06040 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
