Toyota CAMRY 前桥壳和差速器 — Figure 4301

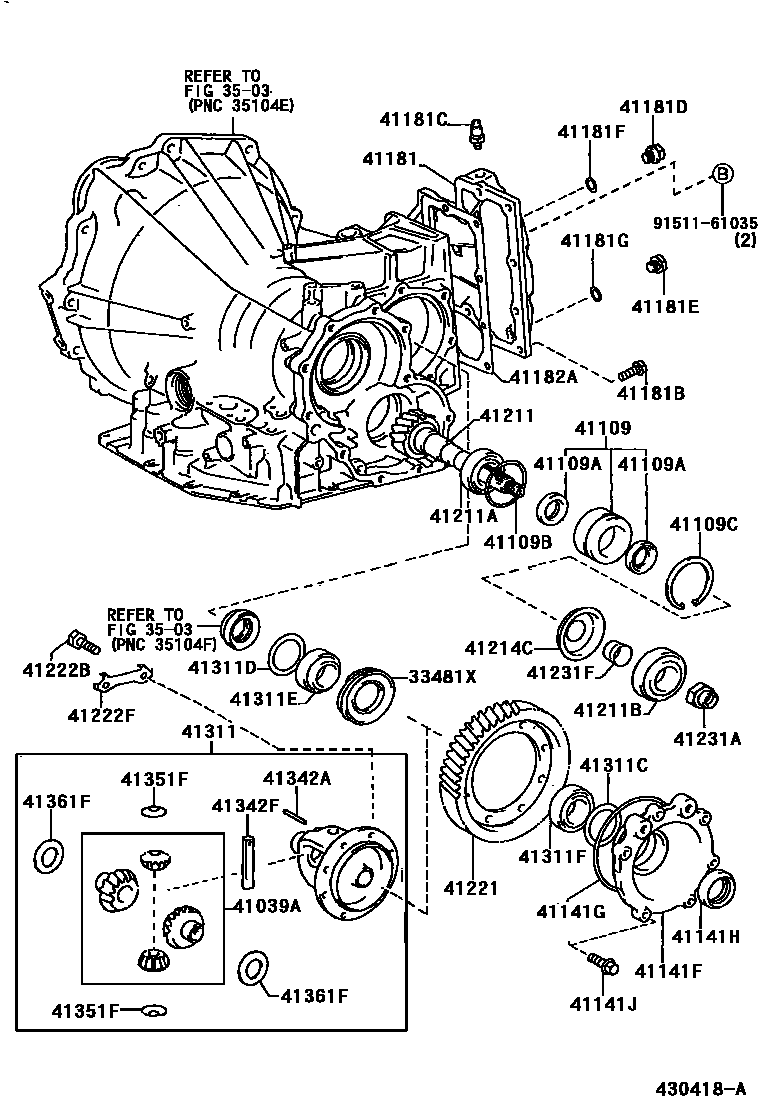

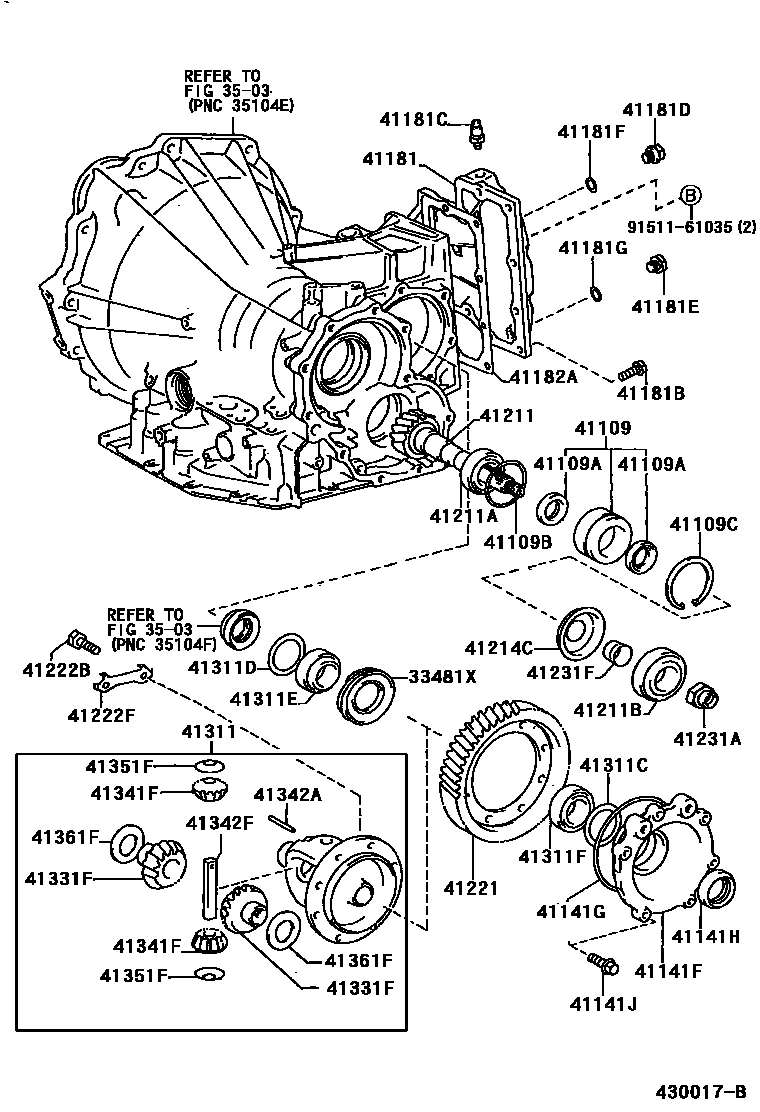

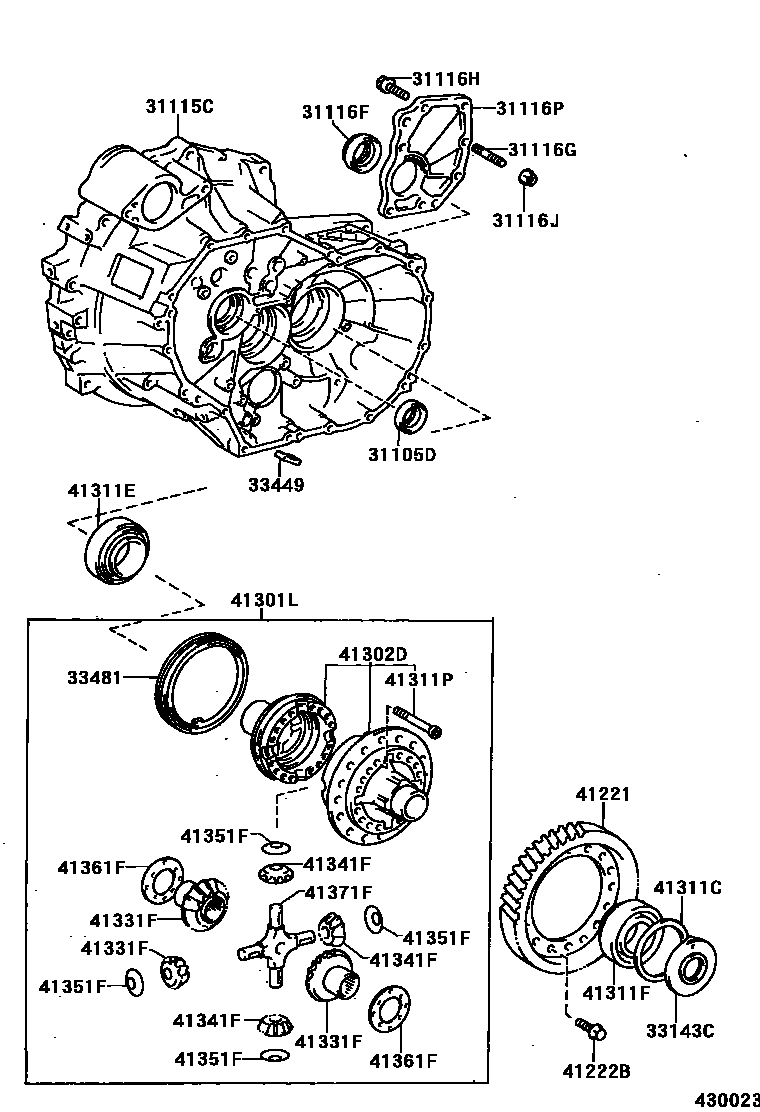

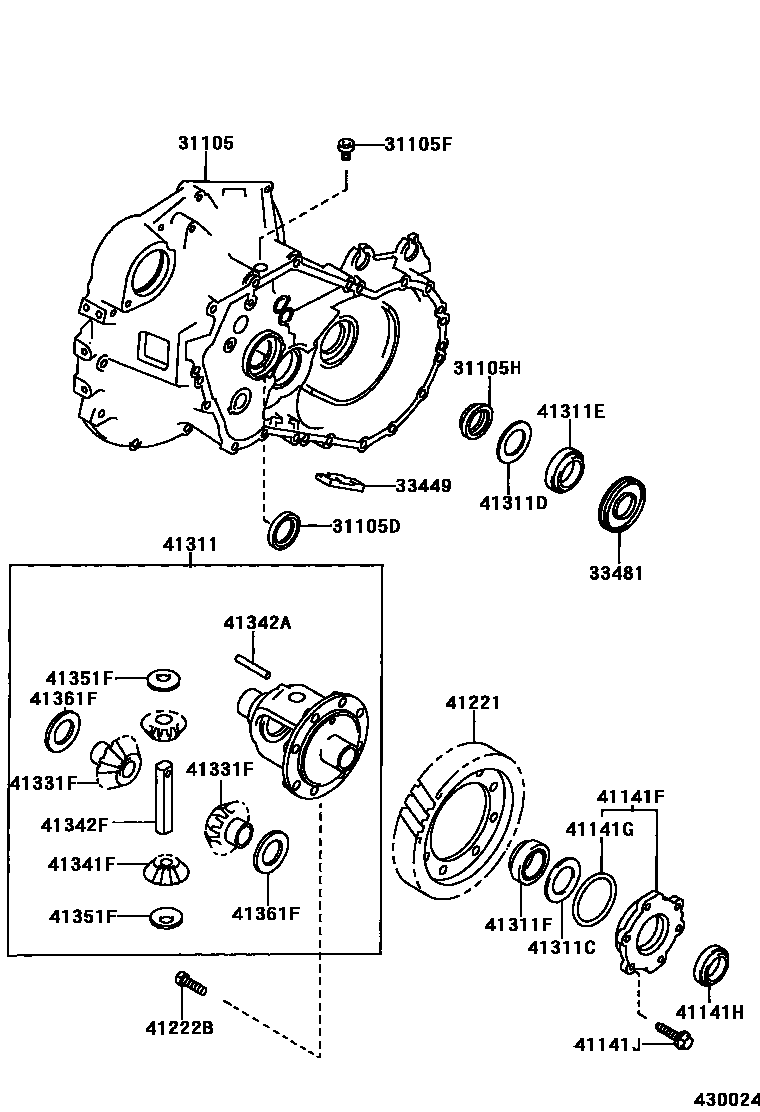

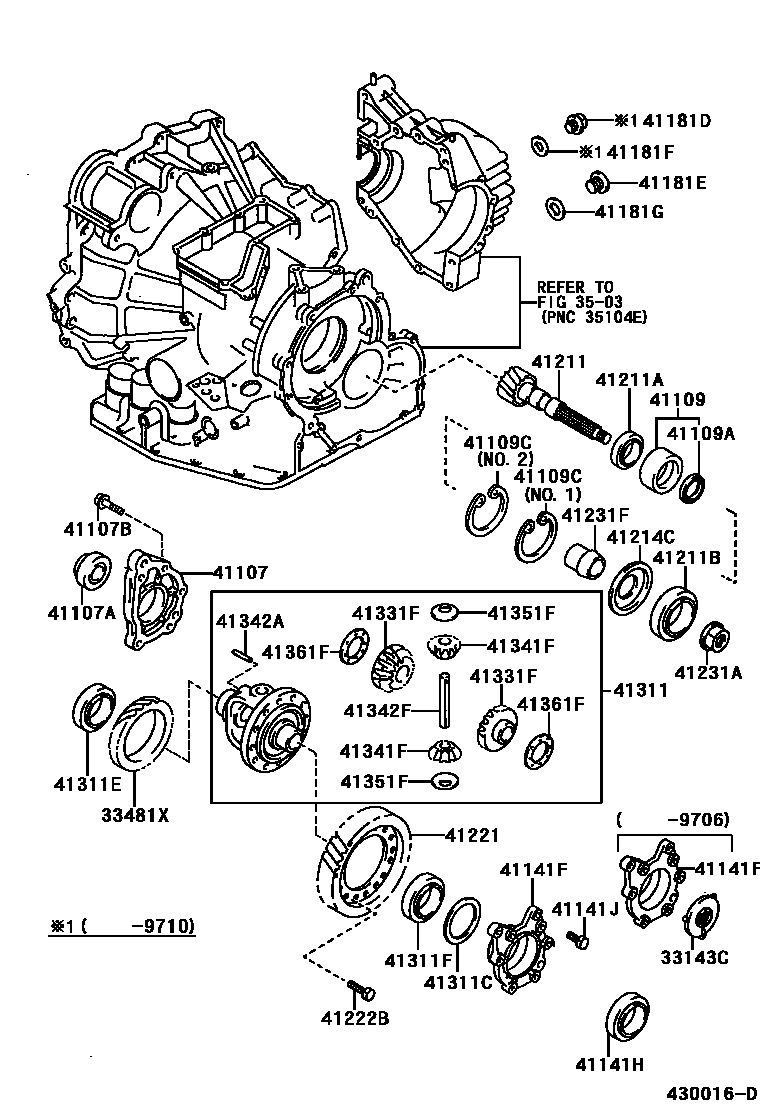

Toyota CAMRY EPC diagram 4301, 前桥壳和差速器, with 5 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105 | Transmission axle housing sub-assembly (MTM) | 31105-32080 · 31105-33030 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-30006 |
| 31105F | Screw plug (for transaxle housing) | 90341-10065 |
| 31105H | No. 2 oil seal (for transmission axle housing) | 90311-35033 · 90311-35049 |
| 31115C | Front transmission axle housing (MTM) | 31115-33012 · 31115-33013 |
| 31116F | Oil seal (for front transmission axle housing cover) | 90311-40004 |
| 31116G | Stud bolts (for front transaxle housing cover) | 90116-12019 |
| 31116H | Bolts (for front transaxle housing cover) | 90105-12135 |
| 31116J | Nut (for transaxle housing cover) | 90179-12068 |
| 31116P | Transmission axle housing cover | 31116-17010 |
| 33143C | Front differential oil baffle | 33143-20040 · 33143-33010 |
| 33449 | derailleur magnet | 33449-20010 · 33449-32020 |
| 33481 | Speedometer driving gear (MTM) | 33481-32070 · 33481-33011 |
| 33481X | speedometer drive gear | 33481-32020 · 33481-33030 |
| 41039A | Differential gear assembly | 41039-33020 |
| 41107 | Front differential oil seal race sub-assembly | 41107-33010 · 41107-33030 |
| 41107A | Oil seal (for front differential oil seal race) | 90311-40010 · 90311-40028 |
| 41107B | Bolt (for front differential oil seal race) | 90105-08331 |
| 41109 | Differential driving pinion bearing cover sub-assembly | 41109-20011 · 41109-33020 |
| 41109A | Oil seal (for differential drive pinion bearing housing) | 90310-34005 · 90310-35007 |
| 41109B | O-ring (for differential drive pinion bearing housing) | 90301-65003 |
| 41109C | Hole snap ring (for differential drive pinion bearing housing) | 90521-76002 · 90521-79008 · 90521-83002 |
| 41141F | Front differential side bearing retainer | 41101-32010 · 41101-32011 · 41101-33020 · 41101-33050 · 41141-32041 |
| 41141G | O-ring (for front differential side bearing retainer) | 90301-63004 · 90301-99018 |
| 41141H | Oil seal (for differential side bearing retainer) | 90311-35019 · 90311-35033 · 90311-35048 · 90311-50011 · 90311-50029 |
| 41141J | Bolt (for front differential side bearing retainer) | 90105-08050 · 90105-08061 · 90105-08062 · 90109-08242 · 91611-60825 |
| 41181 | front differential case cover | 41181-32012 |
| 41181B | Bolts (for securing front differential case cover) | 90080-10153 · 90105-08062 |
| 41181C | Breather plug (for front differential case cover) | 90930-03031 |
| 41181D | Plug (for front differential oil fill port) | 90341-18002 · 90341-18038 |
| 41181E | Screw plug (for front differential drain port) | 90341-18021 |
| 41181F | Gasket (for front differential oil plug) | 90430-18008 |
| 41181G | Gasket (for front differential drain plug) | 90430-18008 |
| 41182A | Differential case cover gasket | 41182-32010 |
| 41211 | Differential drive pinion | 41211-32090 · 41211-33040 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-35084 · 90366-36003 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-40010 · 90366-40074 |
| 41214C | Front differential drive pinion oil retaining ring | 41214-32010 · 41214-33010 |
| 41221 | Front differential ring gear | 41221-12240 · 41221-32090 · 41221-33040 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11003 · 90105-11040 · 90105-12154 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-32010 |
| 41231A | Drive pinion lock nut | 90179-20004 · 90179-24006 |
| 41231F | Front differential drive pinion bearing spacer | 41231-32010 · 41231-33010 |
| 41301L | No. 1 front differential housing sub-assembly | 41301-33010 |
| 41302D | No. 2 front differential housing sub-assembly | 41302-17013 · 41302-20040 |
| 41311 | front differential case | 41301-32060 · 41301-32061 · 41301-32071 · 41301-33020 · 41301-33060 |
| 41311C | Rear gasket (for front differential case) | 90564-45001 · 90564-45002 · 90564-45003 · 90564-45004 · 90564-45005 · 90564-45006 · 90564-45007 · 90564-45008 · 90564-45009 · 90564-45010 · 90564-45011 · 90564-45012 · 90564-45013 · 90564-45014 · 90564-45015 · 90564-45016 · 90564-45017 · 90564-45018 · 90564-45019 · 90564-49001 · 90564-49002 · 90564-49003 · 90564-49004 · 90564-49005 · 90564-49006 · 90564-49007 · 90564-49008 · 90564-49009 · 90564-49010 · 90564-49011 · 90564-49012 · 90564-49013 · 90564-49014 · 90564-49015 · 90564-49016 · 90564-49017 · 90564-49018 · 90564-49019 · 90564-76001 · 90564-76002 · 90564-76003 · 90564-76004 · 90564-76005 · 90564-76006 · 90564-76007 · 90564-76008 · 90564-76009 · 90564-76010 · 90564-76011 · 90564-76012 · 90564-76013 · 90564-76014 · 90564-76015 · 90564-76016 · 90564-76017 · 90564-76018 |
| 41311D | Front gasket (for front differential case) | 90564-45011 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-40016 · 90366-57001 · 90366-57026 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-40064 · 90366-44001 · 90366-50014 · 90366-50030 |
| 41311P | Bolt (for front differential case) | 90149-10003 |
| 41331F | Front differential side gear | 41331-17010 · 41331-32010 · 41331-33010 |
| 41341F | Front differential planetary gear | 41341-20020 · 41341-24010 · 41341-30011 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-32020 · 41342-33010 |
| 41351F | Front differential planetary gear thrust washer | 41351-20010 · 41351-32010 · 41351-33011 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-17010 · 41361-17020 · 41361-17030 · 41361-17040 · 41361-17050 · 41361-17060 · 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 · 41361-33010 · 41362-17010 · 41362-17020 · 41362-17030 · 41362-17040 · 41362-17050 · 41362-17060 · 41362-17070 · 41362-33080 · 41363-33010 |
| 41371F | Front differential cross shaft | 41371-32010 |
