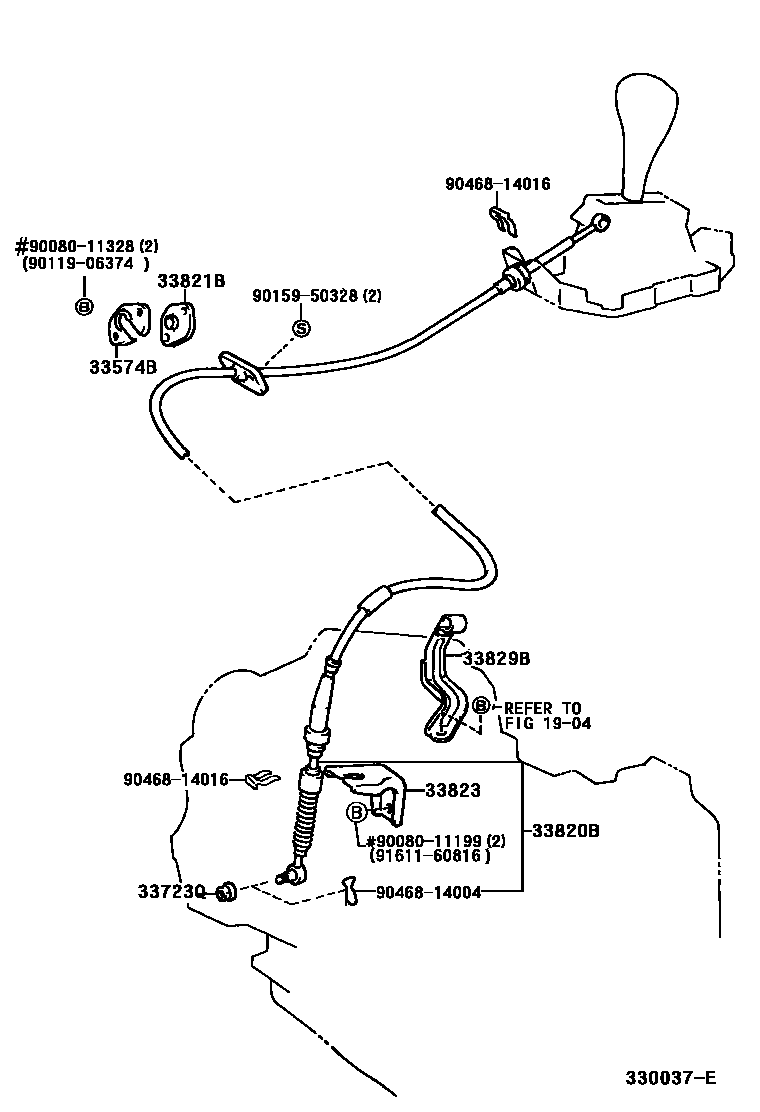

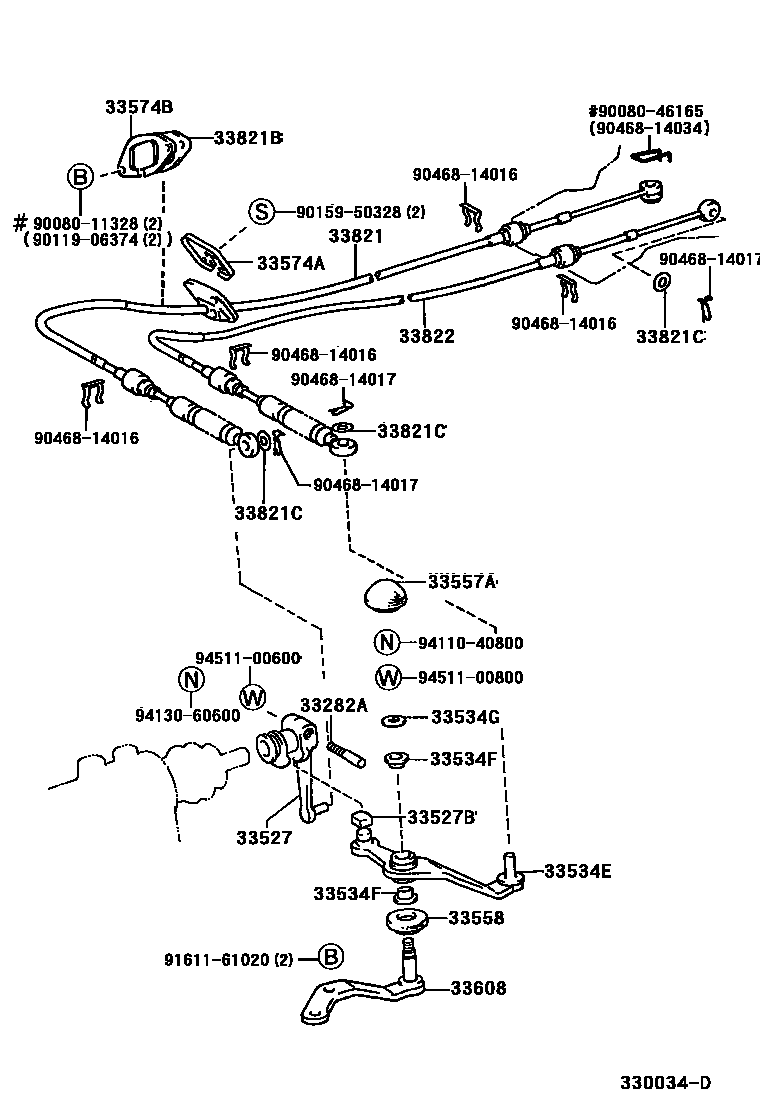

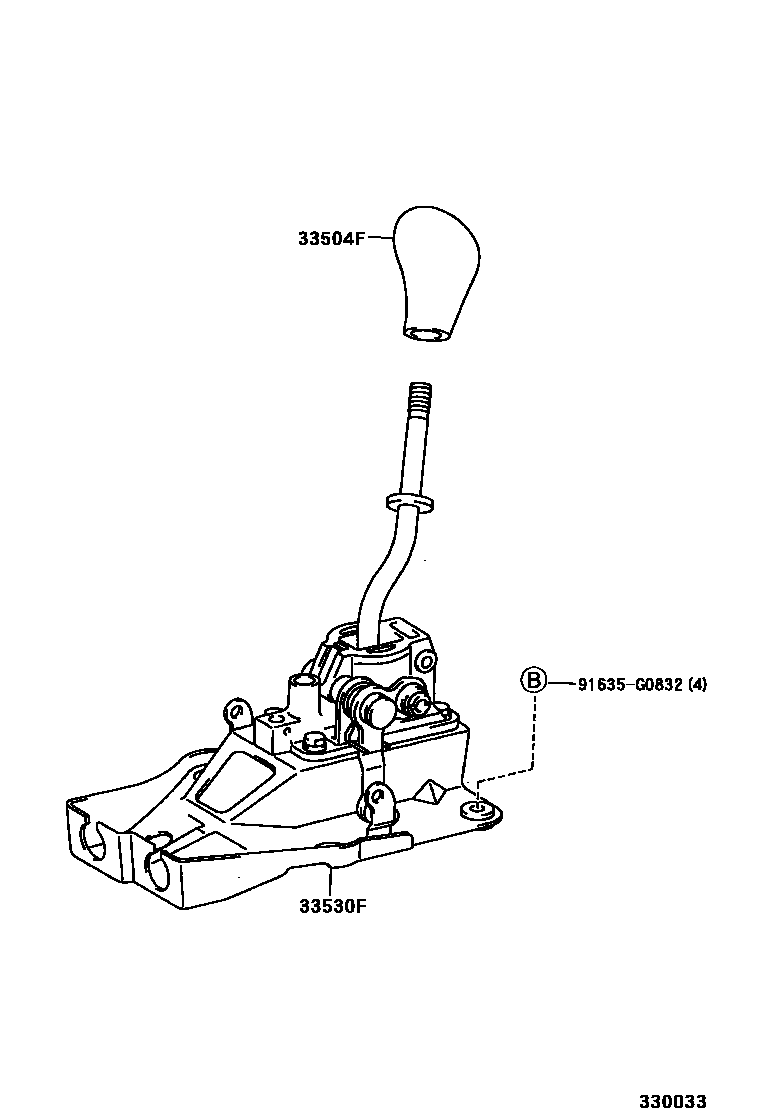

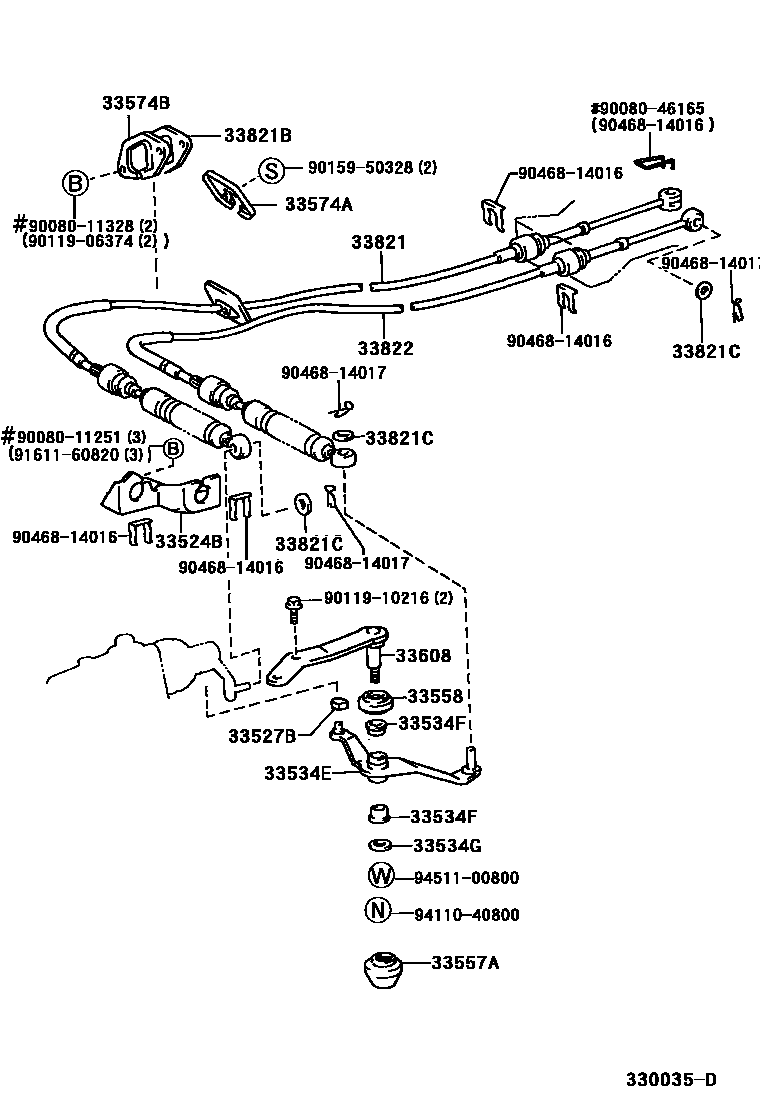

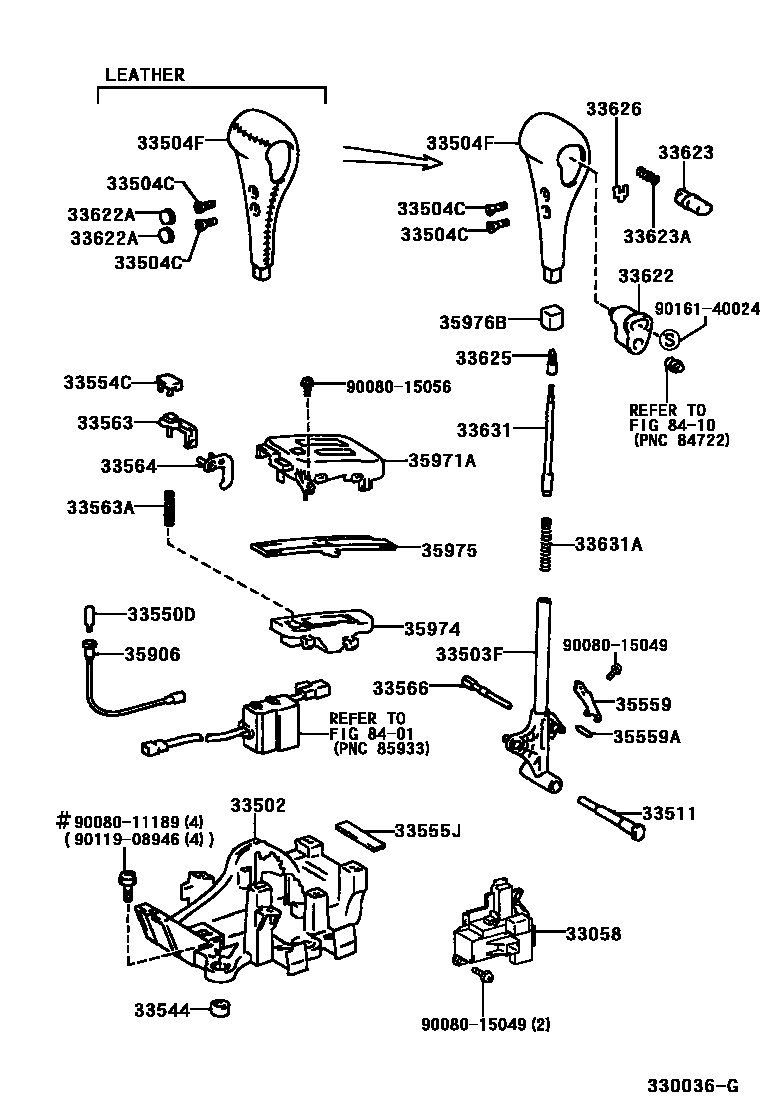

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 5 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33058 | Shift lock solenoid valve bracket sub-assembly | 33058-06020 |
| 33282A | Shift lever lock pin (for shift lever) | 33282-35010 |
| 33502 | Shift lever base plate sub-assembly | 33521-06020 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33055-33110 |
| 33504C | Screw (for securing shift lever knob) | 90080-15048 |
| 33511 | Control shaft (for floor shifting) | 33511-06010 |
| 33524B | Control cable bracket | 33524-33020 |
| 33527 | Gear shift lever (for floor shift) | 33527-32010 |
| 33527B | Bushing (for shift control lever) | 33557-33010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-33070 · 33530-33071 · 33530-33080 · 33530-33081 |
| 33534E | No. 2 gear selection right-angle lever | 33534-12091 · 33534-33010 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33544 | Shift lever insert No. 1 | 33544-06010 |
| 33550D | position indicator light bulb | 90080-81039 · 99132-12034 |
| 33554C | Shift lock release button cover | 33554-06030 |
| 33555J | Shift lever seal | 33555-06020 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 · 33558-32010 |
| 33563 | Shift lock release button | 33563-06030 |
| 33563A | Compression spring (for shift lock release button) | 90080-50179 |
| 33564 | No. 1 shift lock release link | 33564-06010 |
| 33566 | shift lever stop pin | 33566-33010 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-32101 |
| 33574B | No. 2 shift cable seal | 33574-06020 · 33574-33040 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12031 · 33608-33010 |
| 33623A | Compression spring (for shift lever knob button) | 90080-50180 |
| 33625 | Shift lever handle sleeve | 33625-33040 |
| 33626 | Shift lever button stop | 33626-06010 |
| 33631 | Locking lever | 33631-33020 |
| 33631A | Compression spring (for locking lever) | 90080-50178 |
| 33723Q | Nut (for connecting rod swivel joint) | 90179-08054 |
| 33820B | Transmission control cable assembly | 33820-06070 · 33820-06071 · 33820-06080 · 33820-06081 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-33090 · 33821-33100 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 33577-06050 · 33577-33010 · 90480-01602 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08077 · 90201-10042 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-33050 · 33822-33060 |
| 33823 | No. 1 transmission control cable bracket | 33823-33010 · 33823-33030 |
| 33829B | Transmission control cable clip | 33829-33010 · 33829-33020 |
| 35559 | Manual locking spring | 35559-33030 |
| 35559A | Pin (for manual locking spring) | 90249-02005 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-06010 |
| 35971A | Position indicator light upper shell | 35971-33110 |
| 35974 | Position indicator light lower shell | 35974-06020 |
| 35975 | Slide cover (for position indicator light) | 35975-06030 |
