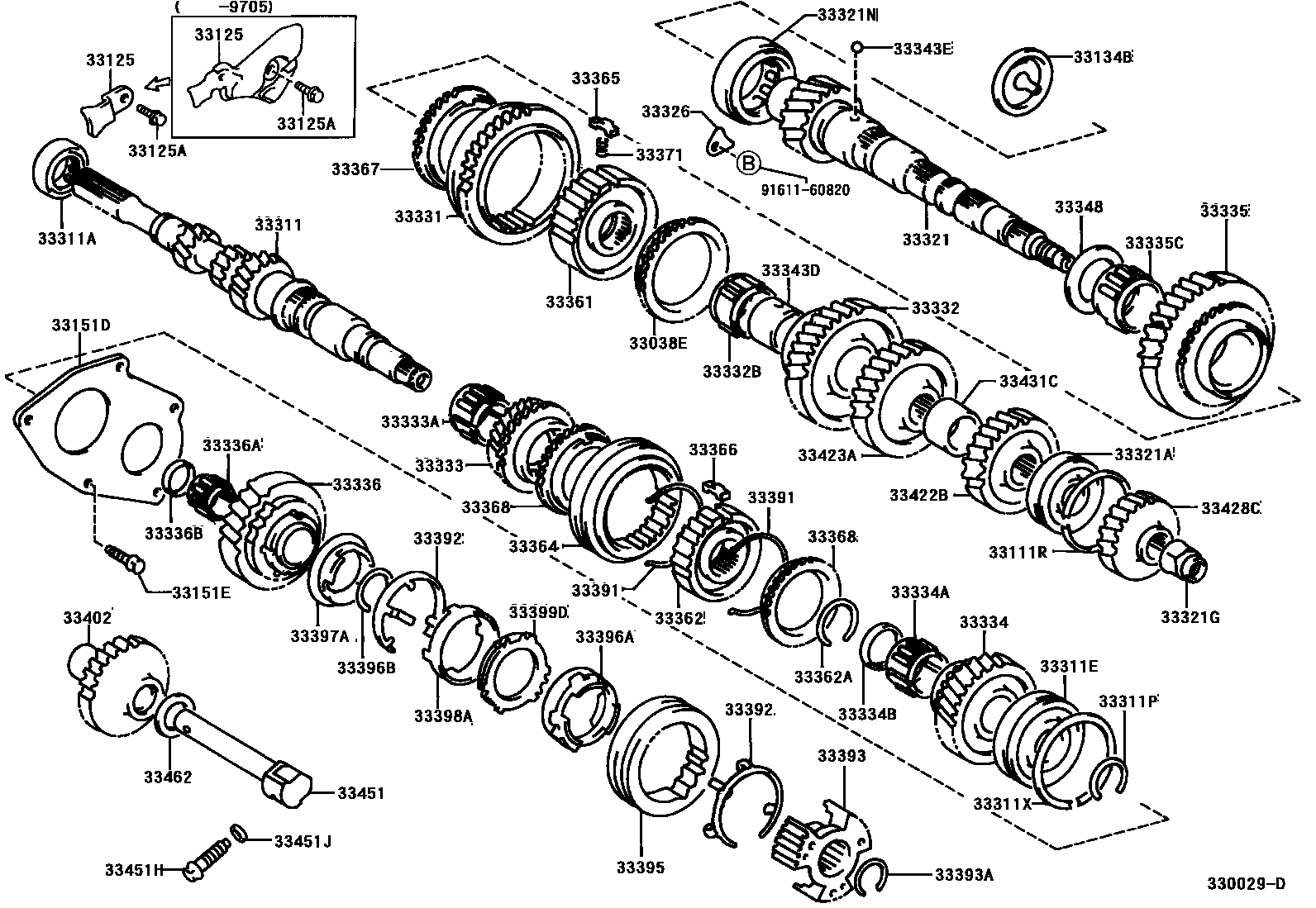

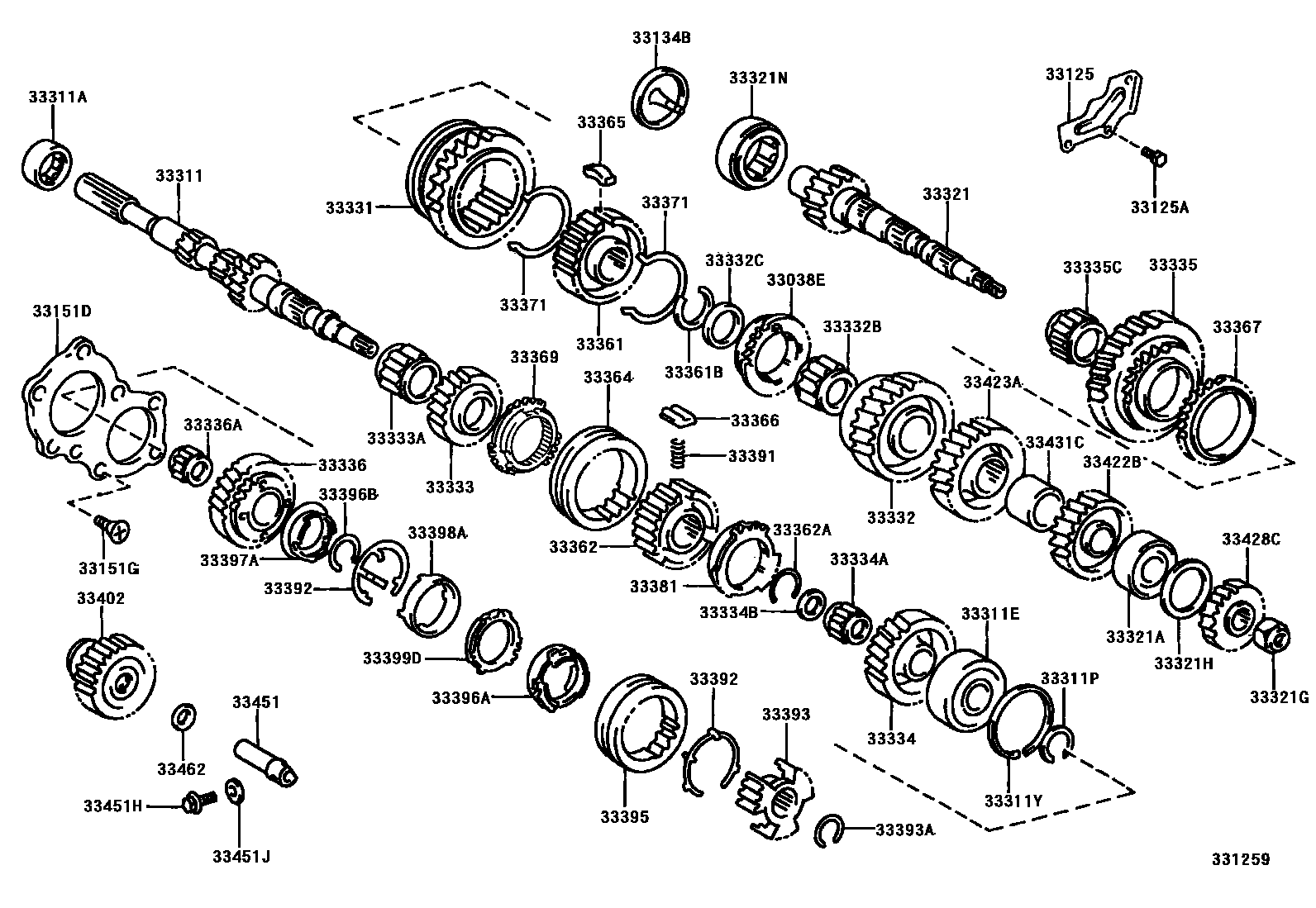

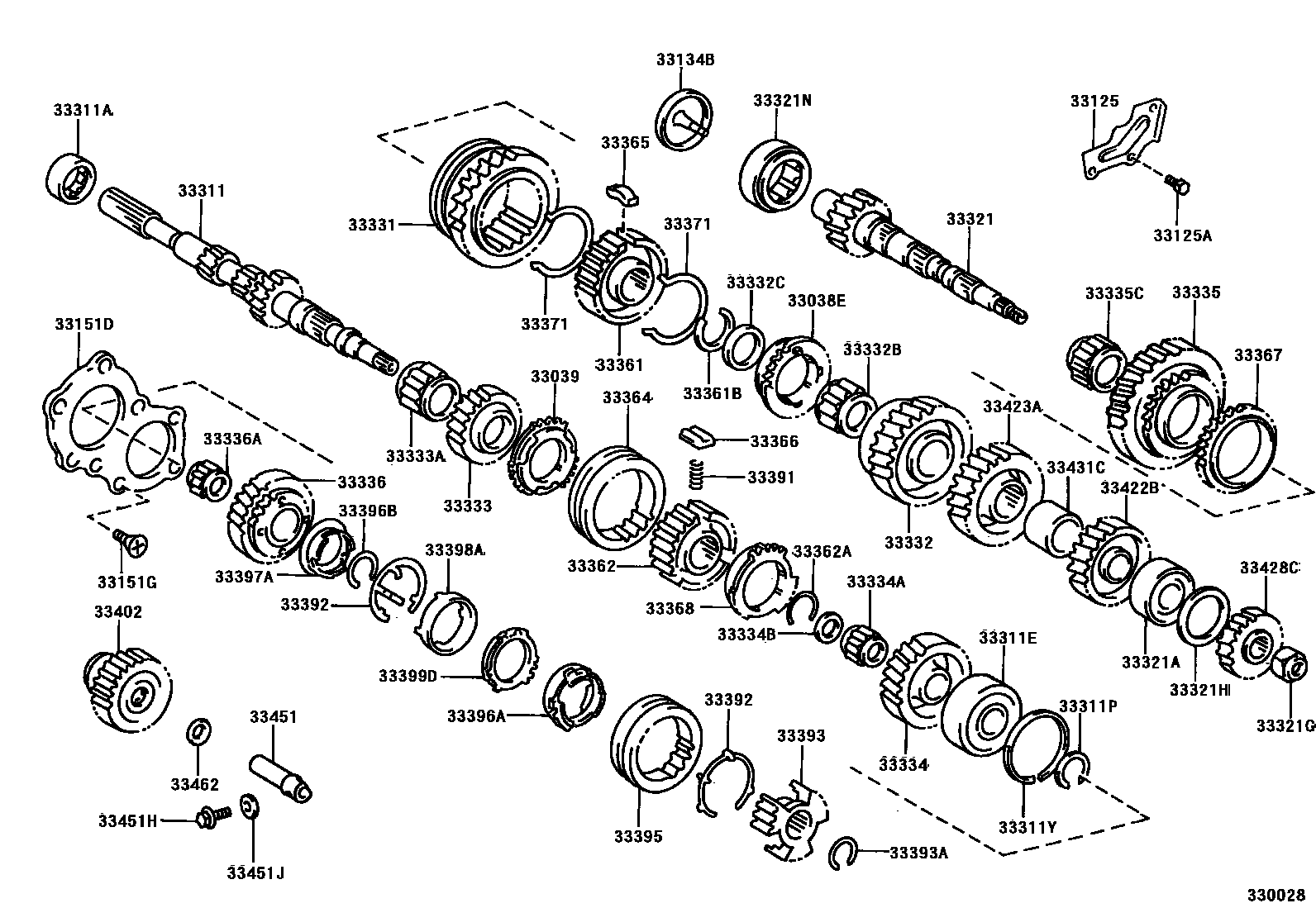

Toyota CAMRY 变速器齿轮(MTM) — Figure 3305
Toyota CAMRY EPC diagram 3305, 变速器齿轮(MTM), with 3 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33038E | No. 2 synchronizer lock ring assembly | 33038-12012 · 33038-33011 |
| 33039 | No. 3 synchronizer lock ring assembly | 33039-12011 · 33039-12012 |
| 33111R | Hole snap ring (for output shaft rear bearing) | 90521-66004 |
| 33125 | Manual transmission axle housing oil collection tank | 33125-20010 · 33125-32011 · 33326-21010 |
| 33125A | Bolt (for transaxle housing oil sump) | 91611-60616 |
| 33134B | Output shaft cover (MTM) | 33134-20010 · 33134-33010 |
| 33151D | Rear bearing retainer (MTM) | 33151-20031 · 33151-32012 |
| 33151E | Bolt (for rear bearing retainer) | 90105-08237 |
| 33151G | Screw (for rear bearing retainer) | 90149-80029 |
| 33311 | input shaft | 33311-17040 · 33311-33031 · 33311-33032 |
| 33311A | Bearing (for front input shaft) | 90365-30017 · 90365-30023 |
| 33311E | Radial ball bearing (for rear input shaft) | 90363-29006 · 90363-33007 |
| 33311P | Shaft snap ring (for input shaft rear bearing) | 90520-27018 · 90520-27019 · 90520-27020 · 90520-27021 · 90520-27022 · 90520-30008 · 90520-30009 · 90520-30010 · 90520-30011 · 90520-30012 · 90520-30013 · 90520-30021 · 90520-30022 |
| 33311X | Hole snap ring (for input shaft rear bearing) | 90521-76001 |
| 33311Y | Shaft snap ring (for input shaft rear bearing) | 90520-76003 |
| 33321 | output shaft | 33321-20120 · 33321-33030 |
| 33321A | Bearings (for rear output shaft) | 90363-25056 · 90366-28007 |
| 33321G | Nut (used to secure the manual transmission rear output shaft) | 90179-18003 · 90179-20012 |
| 33321H | Spacer (for output shaft rear bearing) | 90564-60001 · 90564-60002 · 90564-60003 · 90564-60004 · 90564-60005 · 90564-60006 · 90564-60007 · 90564-60008 · 90564-60009 · 90564-60010 · 90564-60011 · 90564-60012 · 90564-60013 · 90564-60014 · 90564-60015 · 90564-60016 · 90564-60017 · 90564-60018 · 90564-60019 · 90564-60020 · 90564-60021 · 90564-60022 · 90564-60023 · 90564-60024 · 90564-60025 |
| 33321N | Bearing (for front output shaft) | 90365-32013 · 90366-32002 |
| 33326 | Bearing locking plate | 33326-32010 |
| 33331 | reverse gear | 33331-20061 · 33331-33021 · 33331-33022 |
| 33332 | Second gear | 33332-20101 · 33332-33021 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-39006 · 90364-39013 |
| 33332C | Spacer (for second gear bearing) | 90560-39003 |
| 33333 | Third gear | 33034-17031 · 33034-17032 · 33034-32042 |
| 33333A | Needle roller bearing (for third gear) | 90364-33001 · 90364-36007 |
| 33334 | fourth gear | 33035-17030 · 33035-17031 · 33035-32040 |
| 33334A | Needle roller bearing (for fourth gear) | 90364-32013 · 90364-36010 |
| 33334B | Spacer (for fourth gear bearing) | 90560-32007 · 90560-36002 |
| 33335 | first gear | 33032-32020 · 33032-32022 · 33335-17020 |
| 33335C | Needle roller bearing (for first gear) | 90364-38004 · 90364-39008 |
| 33336 | fifth gear | 33336-20070 · 33336-20071 · 33336-33020 |
| 33336A | Needle roller bearings (for fifth gear) | 90364-27005 · 90364-28015 · 90364-28024 |
| 33336B | Spacer (for fifth gear bearing) | 90560-27004 |
| 33343D | Second gear bushing | 33343-33010 |
| 33343E | Steel ball (for second gear bushing) | 90360-05012 |
| 33348 | First gear thrust washer | 33348-32010 |
| 33361 | No. 1 transmission clutch hub | 33361-33010 · 33361-33020 · 33361-33021 |
| 33361B | Shaft snap ring (for clutch hub No. 1) | 90520-37004 · 90520-37005 · 90520-37006 · 90520-37007 · 90520-37008 · 90520-37009 · 90520-37010 |
| 33362 | No. 2 transmission clutch hub | 33362-12031 · 33362-28020 · 33362-28021 · 33362-33011 |
| 33362A | Shaft snap ring (used to secure No. 2 clutch hub) | 90520-30002 · 90520-30003 · 90520-30004 · 90520-30005 · 90520-30006 · 90520-30007 · 90520-34003 · 90520-34004 · 90520-34005 · 90520-34006 · 90520-34007 · 90520-34008 · 90520-34009 |
| 33364 | No. 2 transmission hub sleeve | 33364-12021 · 33364-28010 · 33364-28011 · 33364-32013 |
| 33365 | No. 1 synchromesh shift key | 33365-33010 · 33365-33020 |
| 33366 | No. 2 synchromesh shift key | 33366-12030 · 33366-12031 · 33366-32020 |
| 33367 | Synchronizer lock ring No. 1 | 33367-12040 · 33367-33010 |
| 33368 | Synchronizer lock ring No. 2 | 33368-12041 · 33368-12042 · 33368-17011 · 33368-32020 |
| 33369 | No. 3 synchronizer lock ring | 33369-28010 |
| 33371 | No. 1 synchromesh shift key spring | 33371-33010 · 90501-08141 |
| 33381 | Second gear synchronizer outer locking ring | 33381-28010 |
| 33391 | No. 2 synchromesh shift key spring | 33391-32010 · 90501-08131 |
| 33392 | No. 3 synchromesh shift key spring | 33392-12010 · 33392-12020 · 33392-33010 · 33392-33021 |
| 33393 | No. 3 transmission clutch hub | 33393-12021 · 33393-12022 · 33393-33010 |
| 33393A | Shaft snap ring (for No. 3 transmission clutch hub) | 90520-20034 · 90520-20035 · 90520-20036 · 90520-20051 · 90520-20052 · 90520-20053 · 90520-20054 · 90520-20055 · 90520-20056 · 90520-20057 · 90520-20058 · 90520-20059 · 90520-20060 · 90520-20061 · 90520-20062 · 90520-27061 · 90520-27062 · 90520-27063 · 90520-27064 · 90520-27065 · 90520-27066 · 90520-27067 · 90520-27068 · 90520-27069 |
| 33395 | No. 3 transmission hub sleeve | 33395-12020 · 33395-12021 · 33395-33010 |
| 33396A | synchronizer extension ring | 33396-12011 · 33396-28010 · 33396-33012 |
| 33396B | Snap ring (for synchronizer extension ring) | 90520-46035 |
| 33397A | No. 5 synchronizer inner locking ring | 33397-12011 · 33397-28010 · 33397-33012 |
| 33398A | No. 5 synchronizer intermediate locking ring | 33398-12010 |
| 33399D | No. 5 synchronizer outer locking ring | 33399-12011 · 33399-33010 |
| 33402 | Reverse idler gear sub-assembly | 33402-20050 · 33402-33010 · 33402-33011 |
| 33422B | Fourth gear driven gear | 33422-17020 · 33422-32040 |
| 33423A | Third gear driven gear | 33423-17020 · 33423-32040 |
| 33428C | fifth speed driven gear | 33428-20060 · 33428-32040 |
| 33431C | Output gear spacer | 33431-20080 · 33431-32020 |
| 33451 | Reverse gear idler shaft | 33451-20040 · 33451-32010 |
| 33451H | Bolt (for reverse idler shaft) | 90105-08041 · 90105-08150 |
| 33451J | Gasket (for reverse idler shaft) | 90430-08010 |
| 33462 | Reverse idler thrust washer | 33462-12010 · 33462-20050 |
