Toyota CAMRY Alternator — Figure 1903

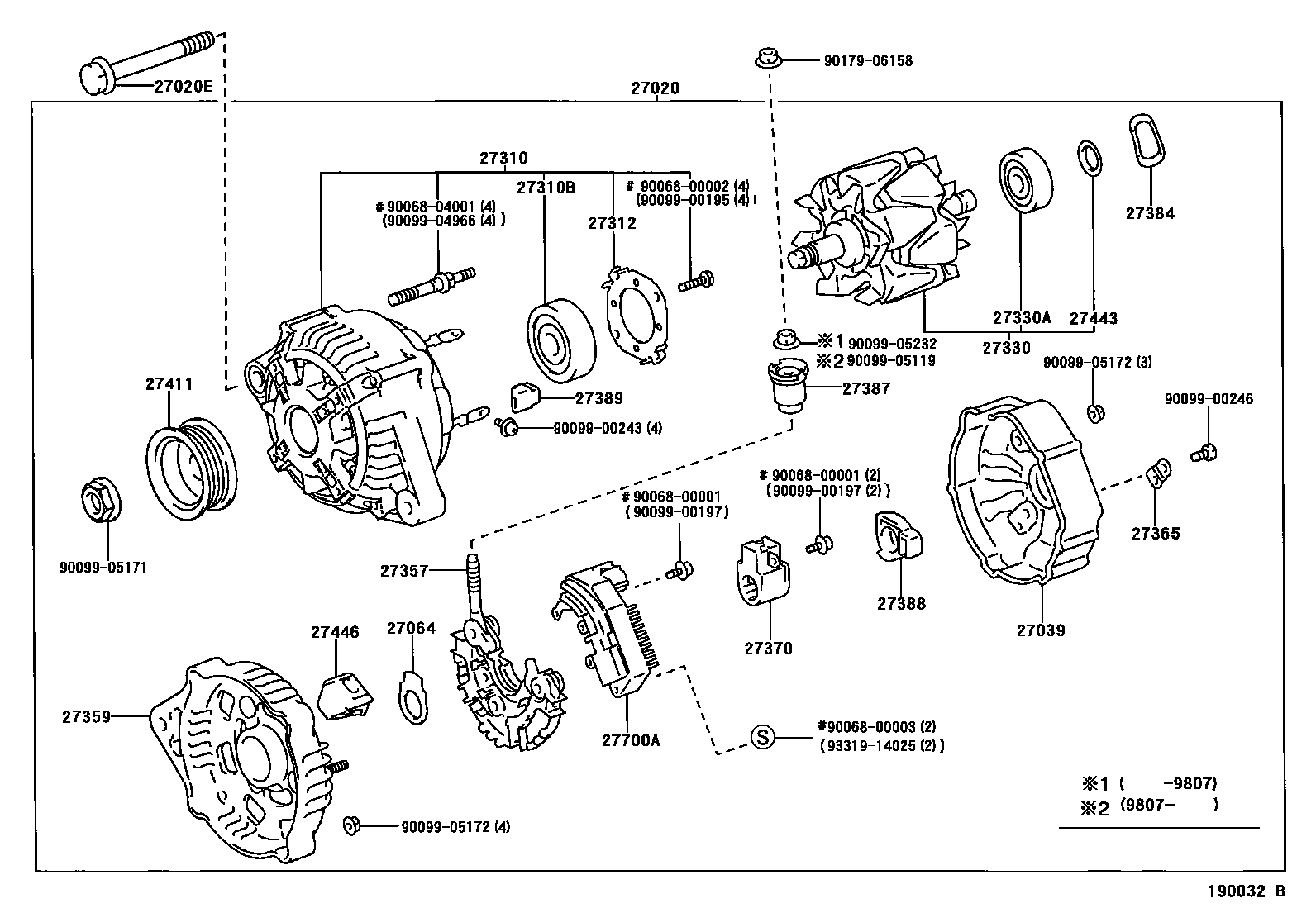

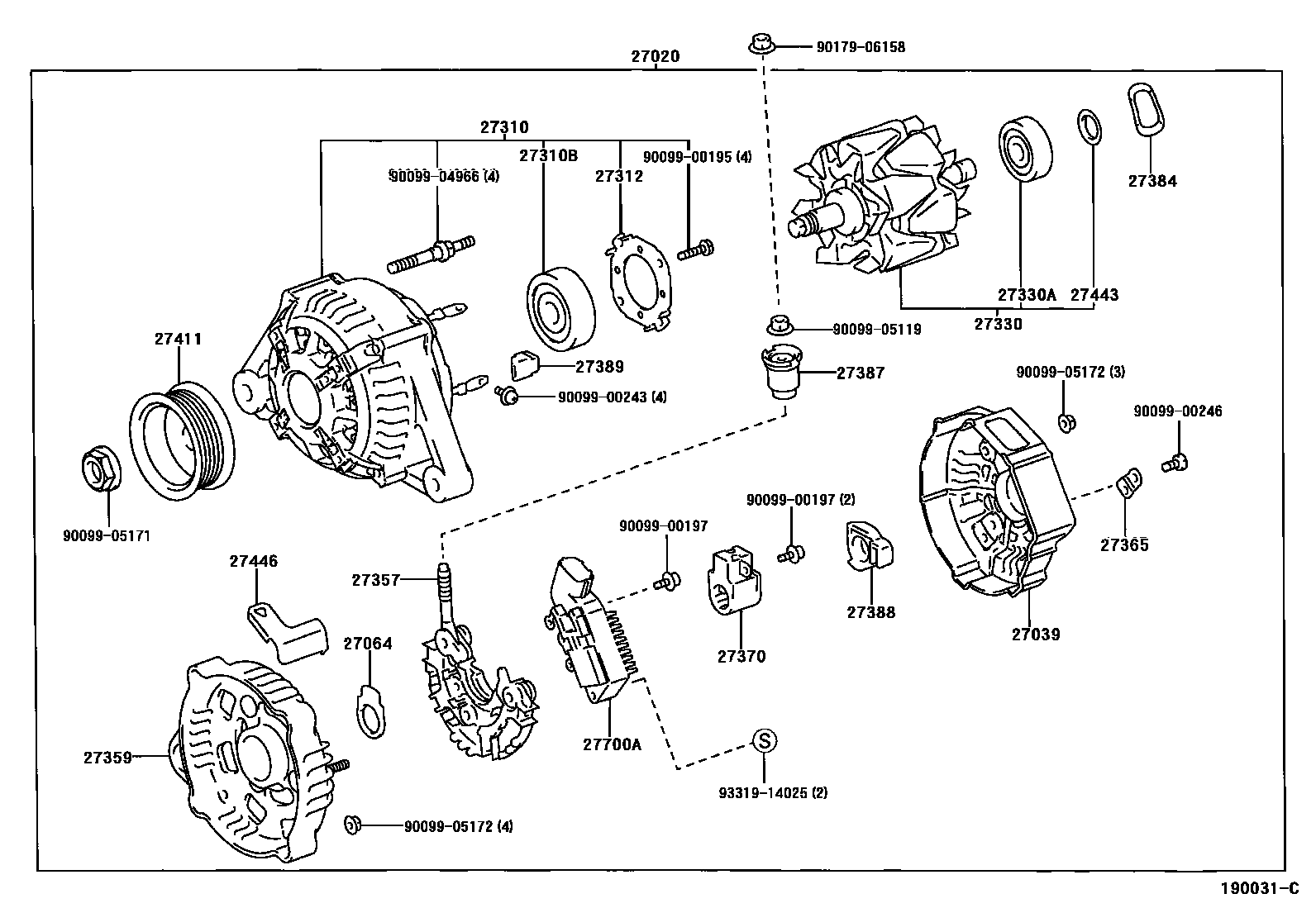

Toyota CAMRY EPC diagram 1903, Alternator, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-03060 · 27060-0A090 · 27060-20040 · 27060-20120 |
| 27020E | Bolts (for generator) | 90080-10113 · 90105-10249 |
| 27039 | Alternator Rear End Cover | 27039-03050 · 27039-20020 · 27039-28090 |
| 27064 | Generator sealing plate | 27064-0A020 · 27064-42010 |
| 27310 | Alternator Drive End Frame Assembly | 27310-03050 · 27310-20030 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10002 · 90099-10192 |
| 27312 | Retainer Plate | 27312-0A020 · 27312-42010 |
| 27330 | Alternator Rotor Assembly | 27330-03050 · 27330-0D010 · 27330-72280 · 27330-74550 |
| 27330A | Bearings (for generator rotor) | 90068-10001 · 90099-10140 |
| 27357 | Generator rectifier frame | 27357-0A020 · 27357-55080 |
| 27359 | Generator rectifier end frame | 27359-03050 · 27359-20020 |
| 27365 | terminal board | 27365-55080 |
| 27370 | Alternator Brush Holder Assembly | 27370-75060 |
| 27384 | Washer | 27384-0A020 · 27384-50030 |
| 27387 | Terminal Insulator | 27387-42020 · 27387-42021 |
| 27388 | Generator brush cover | 27388-0A020 · 27388-42010 |
| 27389 | Terminal Insulator | 27389-0A020 · 27389-42010 |
| 27411 | Alternator Pulley | 27411-03050 · 27411-20020 · 27411-46080 |
| 27443 | Generator bearing cap | 27443-0A020 · 27443-63020 |
| 27446 | Generator clamp | 27446-20050 · 27446-74370 |
| 27700A | Generator voltage regulator assembly | 27700-20050 · 27700-64130 · 27700-74040 |
