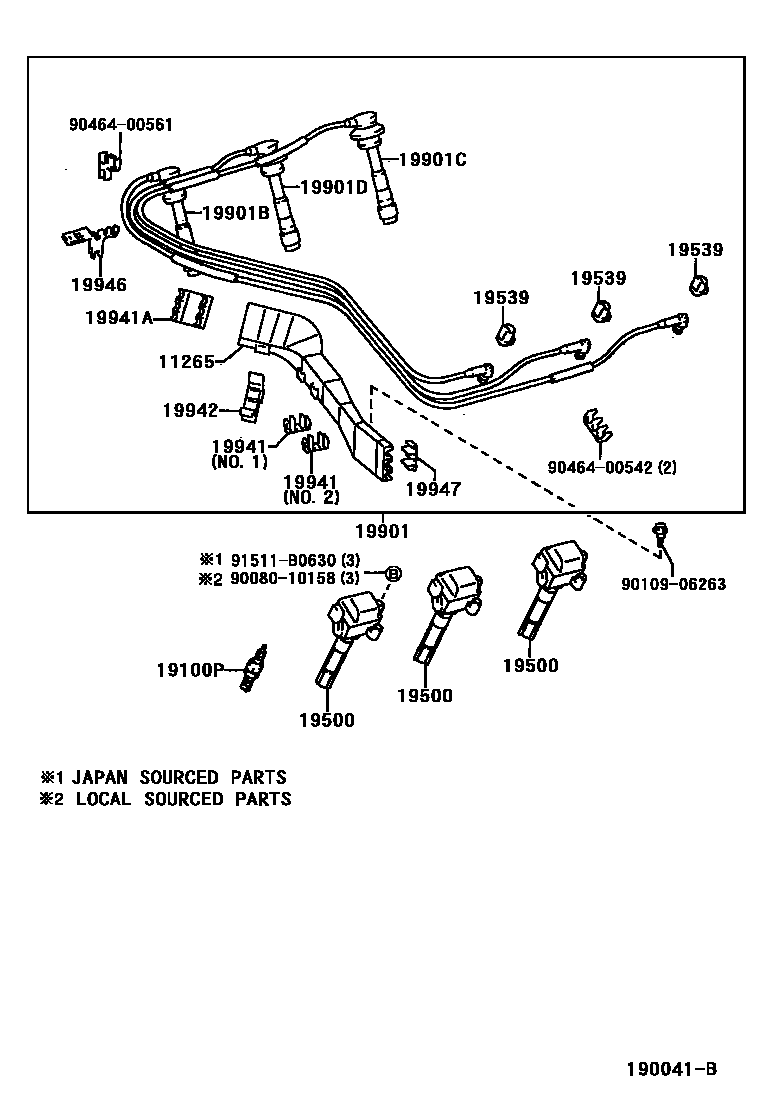

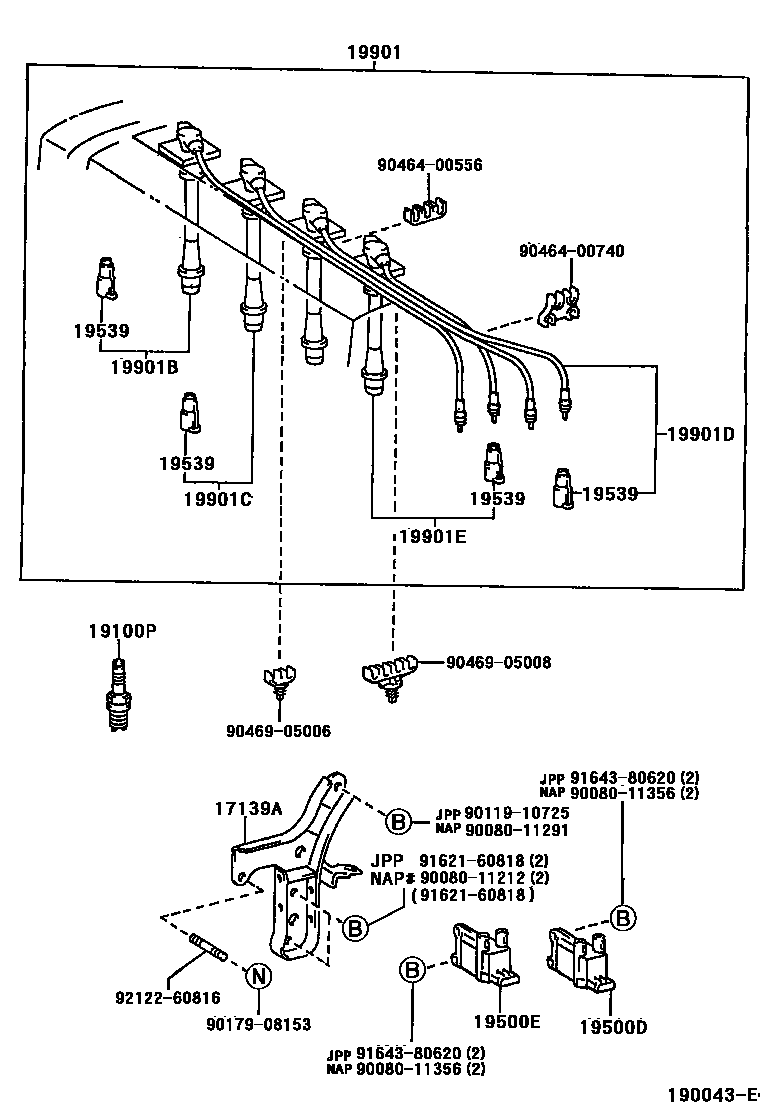

Toyota CAMRY 点火线圈和火花塞 — Figure 1901
Toyota CAMRY EPC diagram 1901, 点火线圈和火花塞, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11265 | Coil and resistor wire covers | 11265-20020 |
| 17139A | No. 1 manifold stay | 17139-74180 |
| 19100P | spark plug | 90080-91116 · 90919-01194 · 90919-01195 |
| 19500 | Ignition coil assembly | 90080-19012 · 90919-02215 |
| 19500D | No. 1 ignition coil | 90080-19007 · 90919-02217 |
| 19500E | No. 2 ignition coil | 90080-19008 · 90919-02218 |
| 19539 | No. 4 damping wire fixing piece | 19539-11040 · 19539-74050 |
| 19901 | Coil and spark plug assembly with damper wire | 19037-20011 · 90080-91110 · 90919-22386 · 90919-22400 |
| 19901B | No. 1 spark plug damper wire | 90080-91111 · 90919-15308 · 90919-15466 · 90919-15546 |
| 19901C | No. 2 spark plug damper wire | 90080-91112 · 90919-15309 · 90919-15465 · 90919-15547 |
| 19901D | No. 3 spark plug damper wire | 90080-91113 · 90919-15310 · 90919-15464 · 90919-15548 |
| 19901E | No. 4 spark plug damper wire | 90080-91114 · 90919-15463 · 90919-15549 |
| 19941 | No. 1 damping wire clip | 19941-20010 · 19941-20020 |
| 19941A | Clamp (for damping wire) | 19941-65040 |
| 19942 | No. 2 damping wire clip | 19942-20010 |
| 19946 | No. 3 impedance wire clip | 19946-20010 |
| 19947 | No. 4 impedance wire clip | 19947-20010 |
