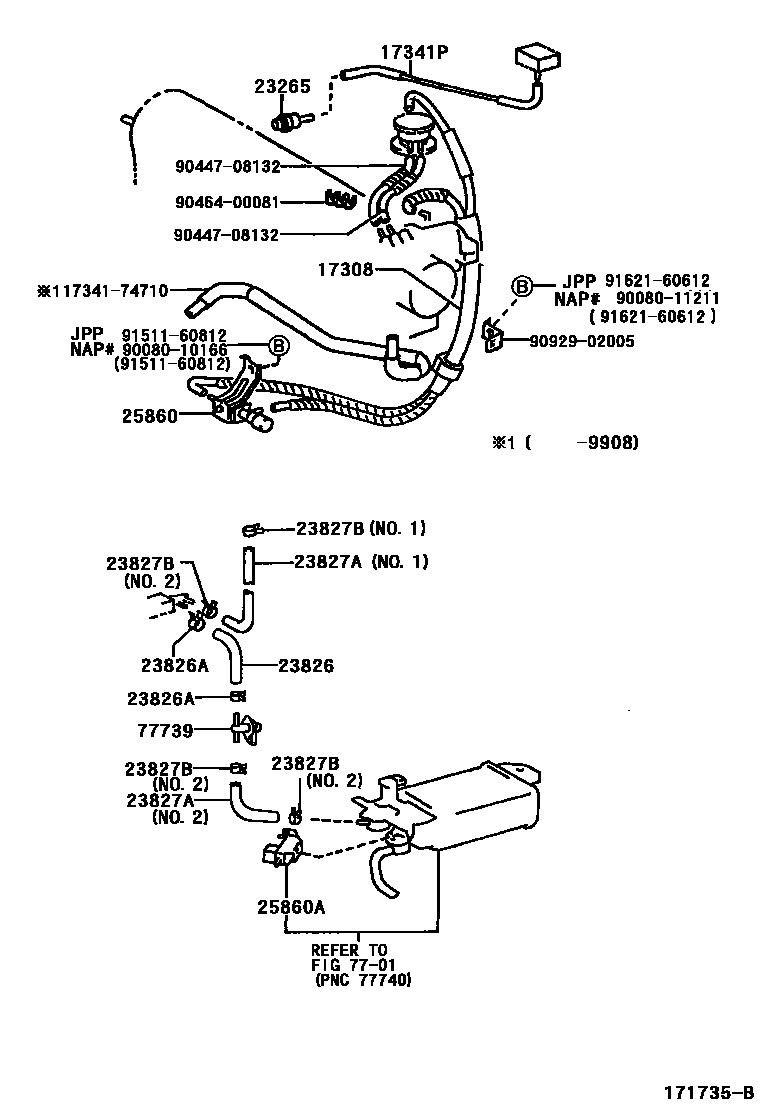

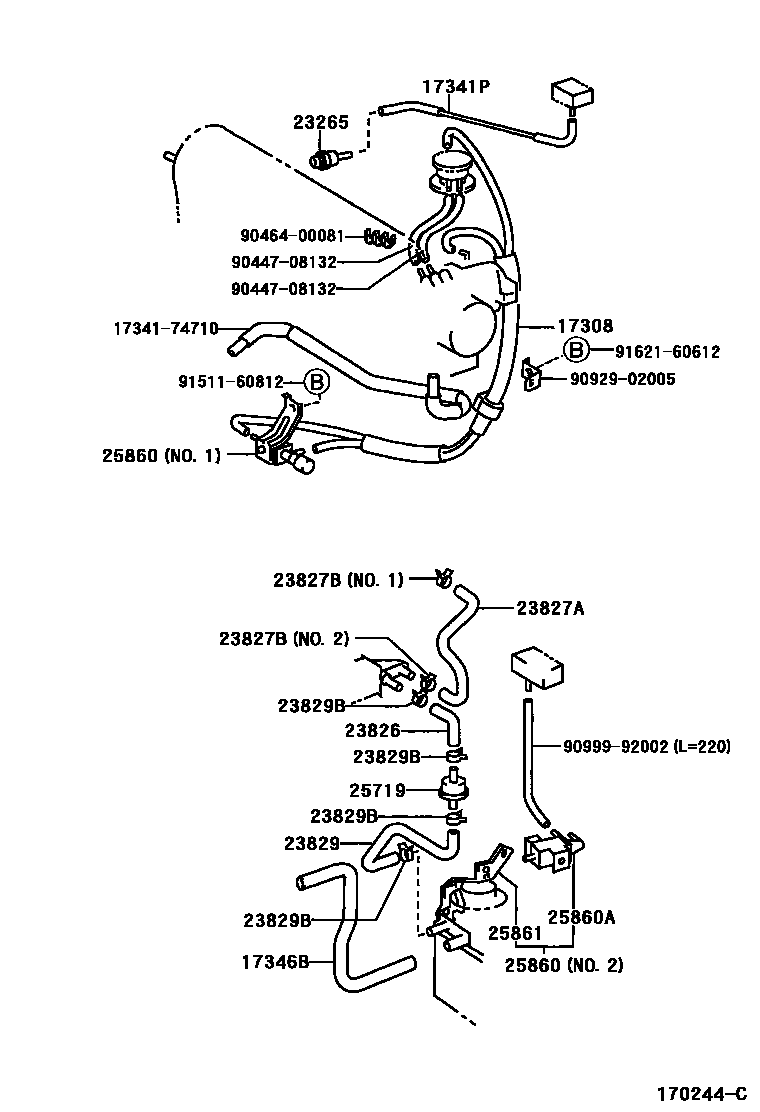

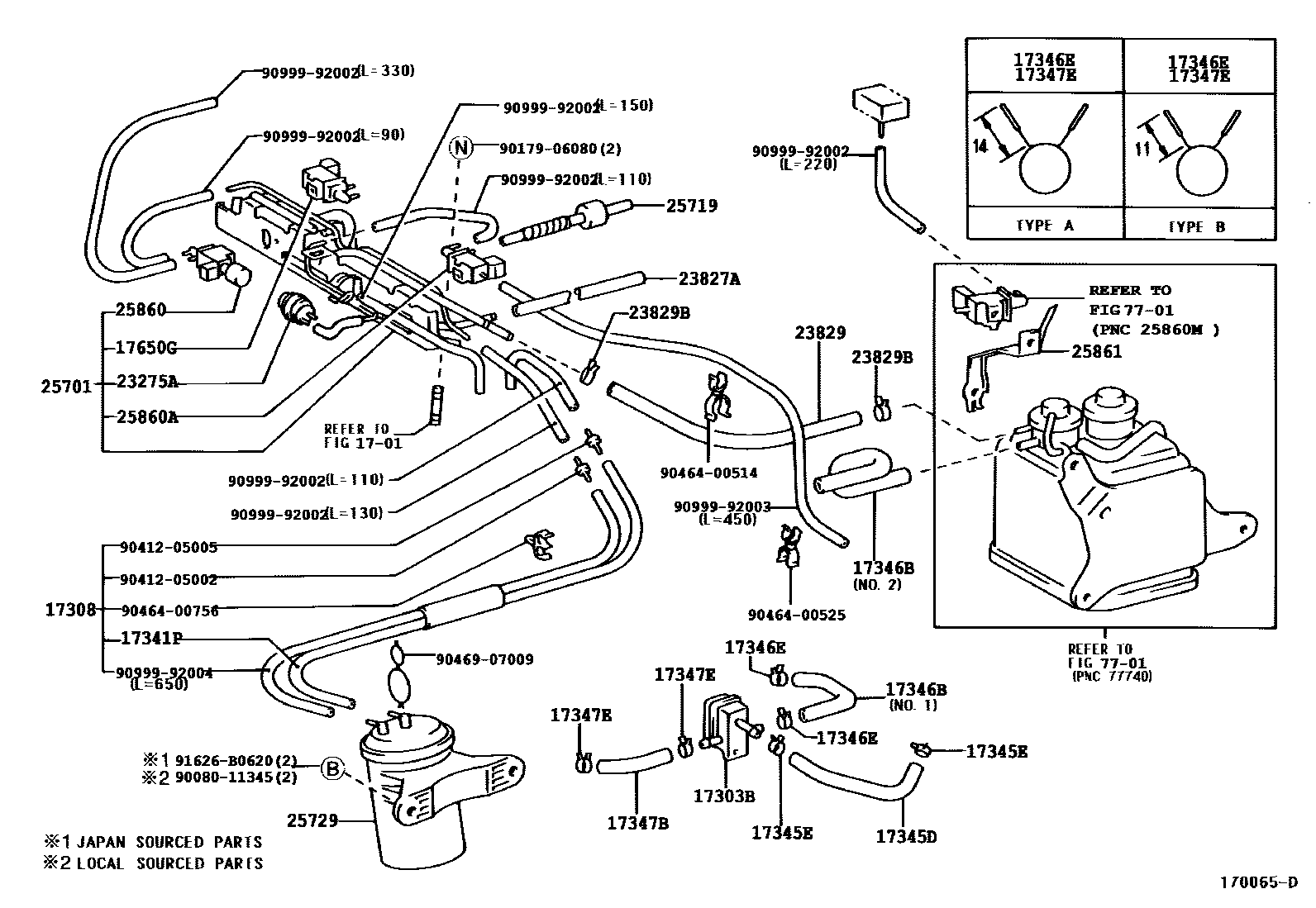

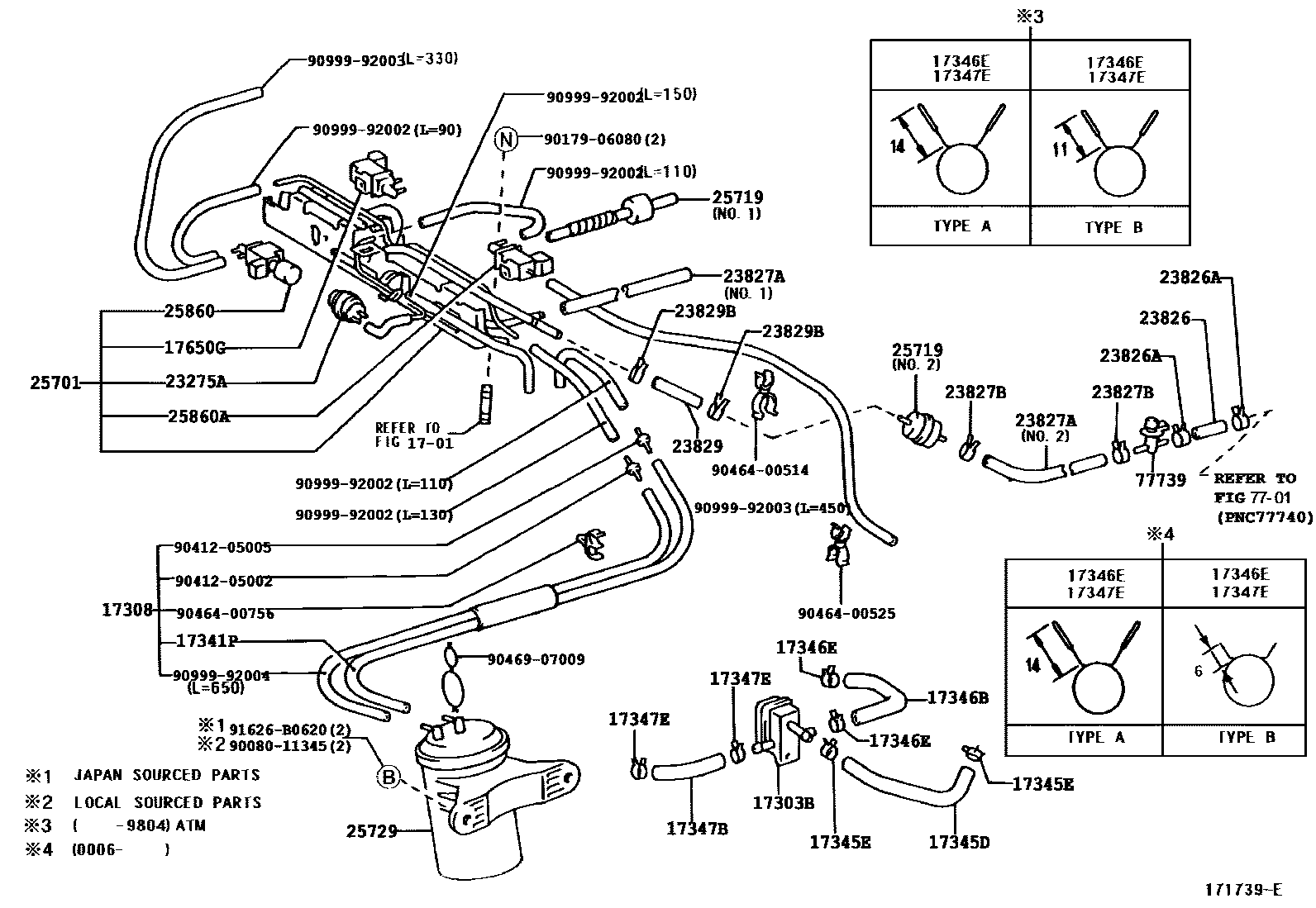

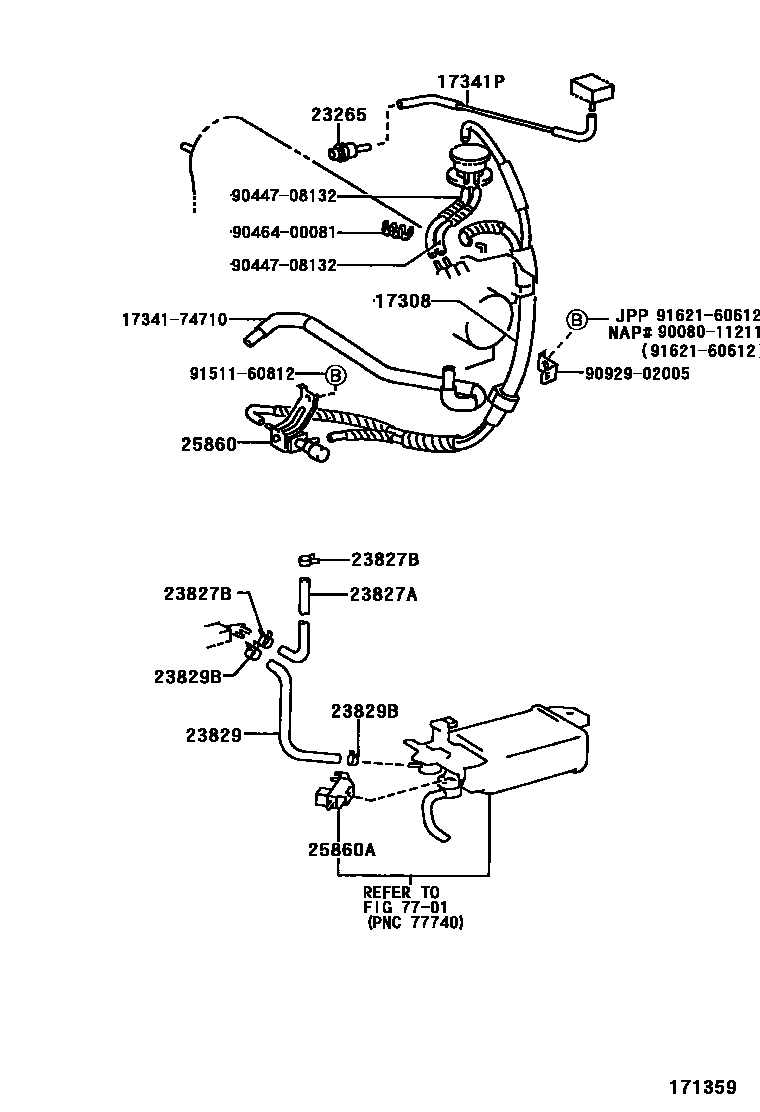

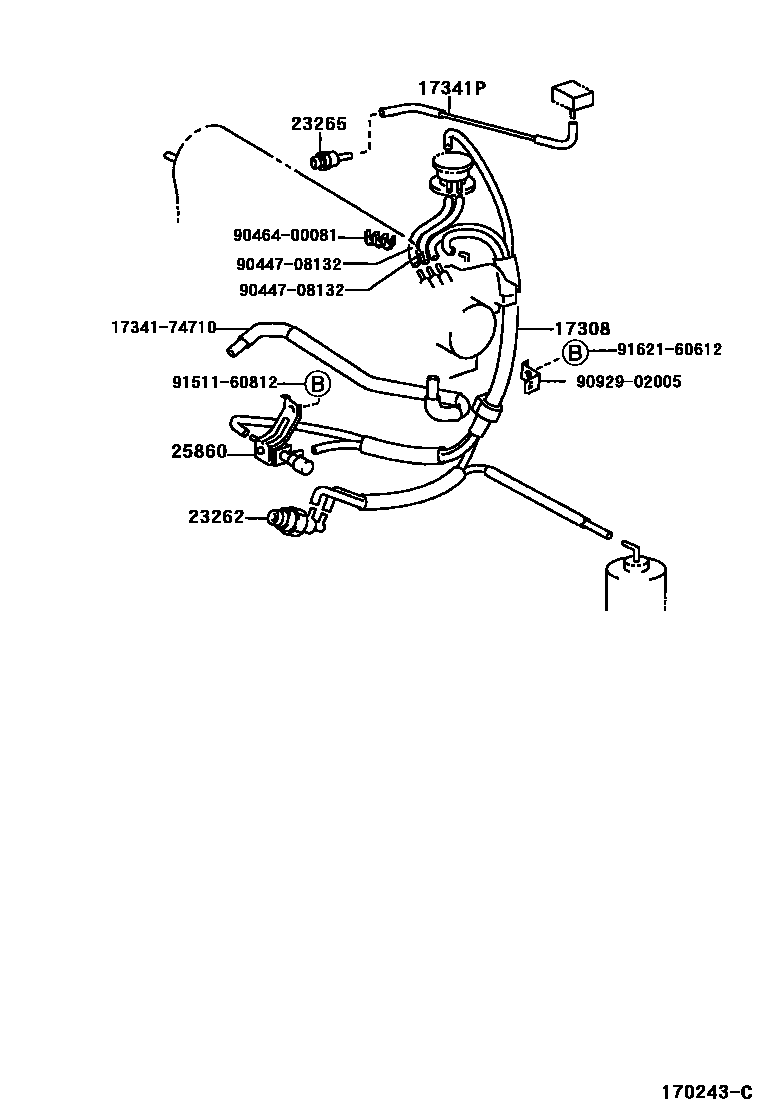

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 7 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-0A010 · 17303-20010 |
| 17308 | Vacuum hose sub-assembly (for idle boost) | 17308-20050 · 17308-74540 · 17308-74550 · 17308-74600 · 17308-74630 |
| 17341P | air hose | 17341-20040 · 17341-74810 |
| 17345D | No. 5 air hose | 17345-0A020 · 17345-20010 |
| 17345E | Clip or clip (for size 5 air hose) | 90467-16003 |
| 17346B | No. 6 air hose | 17346-0A010 · 17346-20010 · 17346-20030 · 17346-74140 |
| 17346E | Clamp (for No. 6 air hose) | 90467-13007 · 90467-13070 · 96133-41300 |
| 17347B | No. 7 air hose | 17347-0A010 · 17347-20010 |
| 17347E | Clamp (for No. 7 air hose) | 90467-13007 · 90467-13070 · 96133-41300 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12150 · 90910-12196 · 90910-12241 |
| 23262 | No. 1 bimetallic vacuum switch valve | 90925-05068 |
| 23265 | No. 1 gas filter | 90917-11022 · 90917-11037 |
| 23275A | vacuum control valve | 90925-03193 |
| 23826 | No. 1 fuel vapor supply hose | 23826-03010 · 23826-0A010 · 23826-0A012 · 23826-74040 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96132-51100 |
| 23827A | No. 2 fuel vapor supply hose | 23827-03010 · 23827-03020 · 23827-0A010 · 23827-0A011 · 23827-20010 · 23827-74020 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96132-41000 · 96132-51100 |
| 23829 | No. 3 fuel vapor supply hose | 23829-03010 · 23829-0A030 · 23829-20011 · 23829-74040 · 23829-74050 |
| 23829B | Clamp (for fuel vapor supply hose) | 96132-51100 |
| 25701 | Emission control valve assembly | 25701-20060 · 25701-20061 · 25701-20150 · 25701-20170 |
| 25719 | Vacuum pressure tank | 25719-20010 · 25719-20020 · 25719-74020 |
| 25729 | Vacuum pressure tank with bracket | 25729-0A010 · 25729-20010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-20020 · 25860-62010 · 25860-74050 |
| 25860A | No. 1 vacuum switch valve | 90910-12109 · 90910-12174 · 90910-12198 |
| 25861 | Vacuum switch valve bracket | 25861-0A030 · 25861-20020 · 25861-20030 |
| 77739 | Steam service valve | 77739-06010 |
