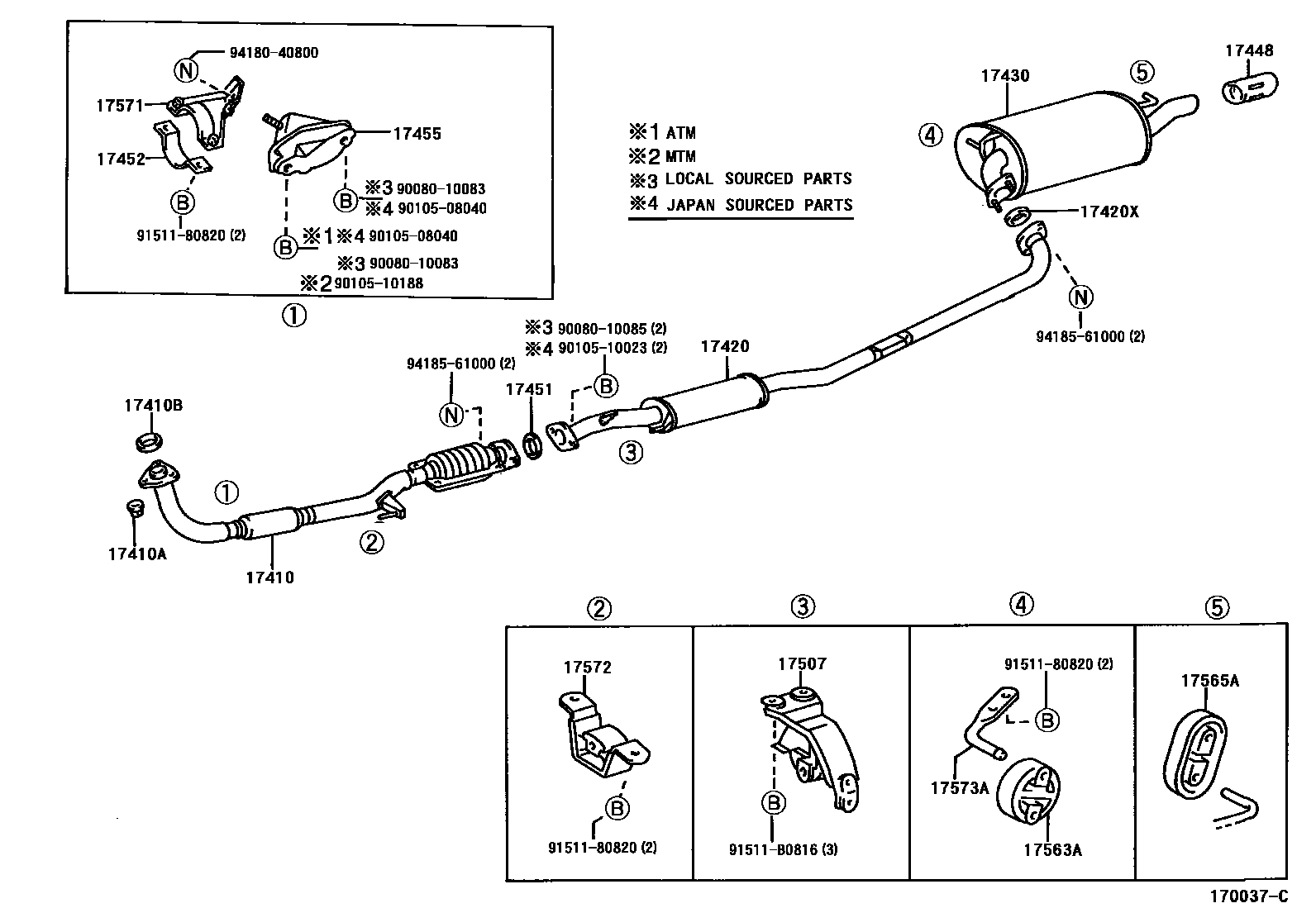

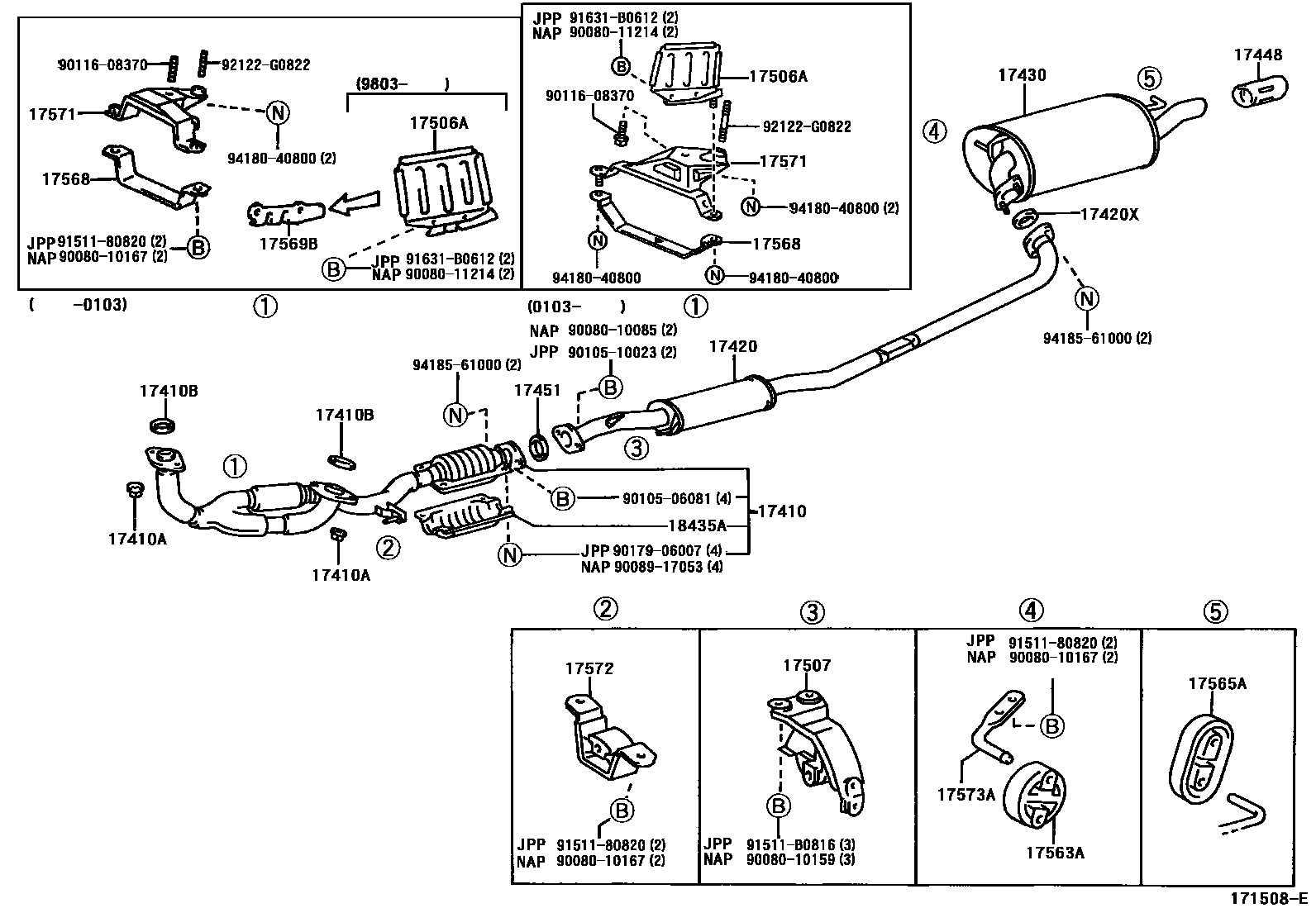

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-03130 · 17410-03140 · 17410-03270 · 17410-03300 · 17410-0A080 · 17410-0A090 · 17410-0A170 · 17410-0A240 · 17410-0A260 · 17410-0A320 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06065 · 90917-06066 |
| 17420 | Central exhaust pipe assembly | 17420-03080 · 17420-03180 · 17420-0A060 · 17420-0A170 |
| 17420X | Center exhaust pipe liner | 90080-43026 · 90080-43028 · 90917-06045 · 90917-06073 |
| 17430 | Exhaust tailpipe assembly | 17430-03190 · 17430-03191 · 17430-03192 · 17430-0A080 · 17430-0A081 · 17430-0A082 · 17440-03020 |
| 17448 | Exhaust pipe tail throat | 17448-74080 |
| 17451 | Exhaust pipe gasket | 90080-43026 · 90917-06073 |
| 17452 | Exhaust pipe clamp | 17452-03030 |
| 17455 | Exhaust pipe bracket | 17455-74080 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-0A050 · 17506-0A051 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-0A060 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-0A070 · 17565-0A071 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-07040 · 17565-0A080 · 17565-0A130 |
| 17568 | Exhaust pipe bracket stay | 17568-0A090 · 17568-20080 |
| 17569B | No. 2 exhaust pipe bracket stay | 17569-0A050 · 17569-20040 |
| 17571 | No. 1 exhaust pipe bracket | 17571-0A060 · 17571-0A061 · 17571-20070 · 17571-20071 · 17571-74410 |
| 17572 | No. 1 exhaust pipe bracket | 17572-03020 · 17572-0A040 |
| 17573A | No. 3 exhaust pipe bracket | 17573-0A020 · 17573-0A021 · 17573-74210 · 17573-74211 |
| 18435A | Integrated three-way catalytic converter protection device | 18435-16170 · 18435-20020 |
