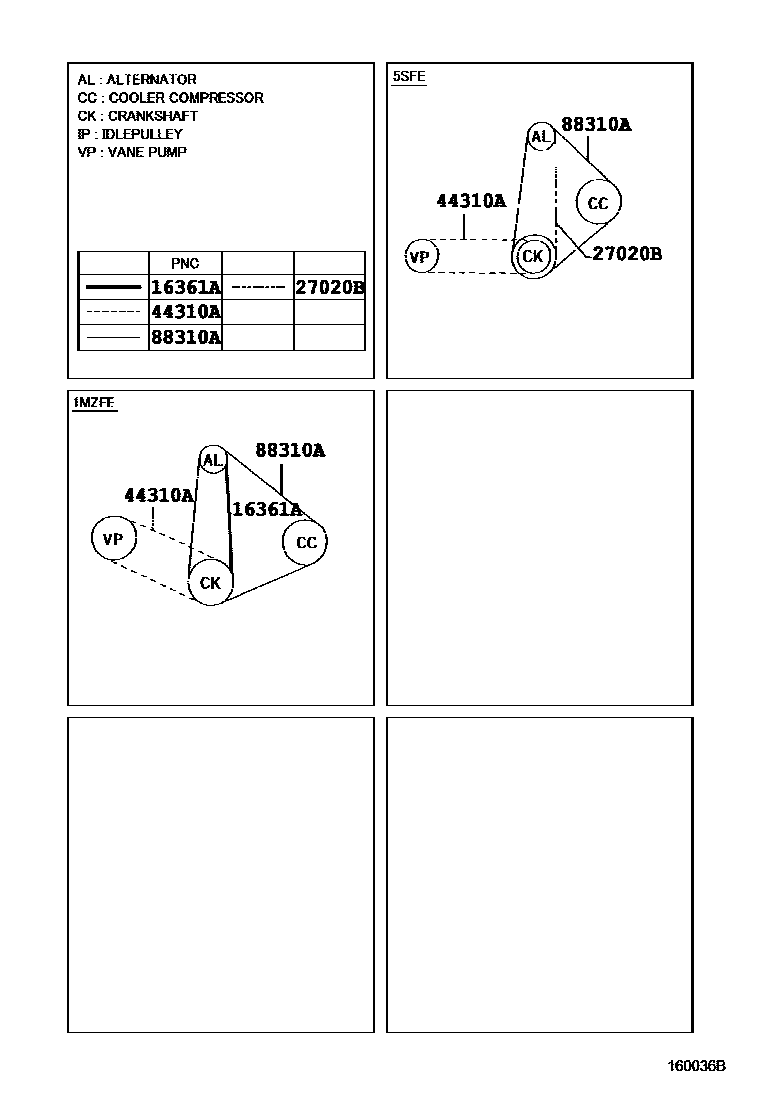

Toyota CAMRY V-Belt — Figure 1605
Toyota CAMRY EPC diagram 1605, V-Belt, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 99366-90950 |
| 27020B | V-belt (for generator) | 90080-91044 · 90916-02355 |
| 44310A | V-belt (for vane pump) | 90080-91054 · 90080-91088 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 90080-91087 · 90080-91122 · 90916-02401 · 99365-21100 |
