Toyota CAMRY Engine Mounting — Figure 1107

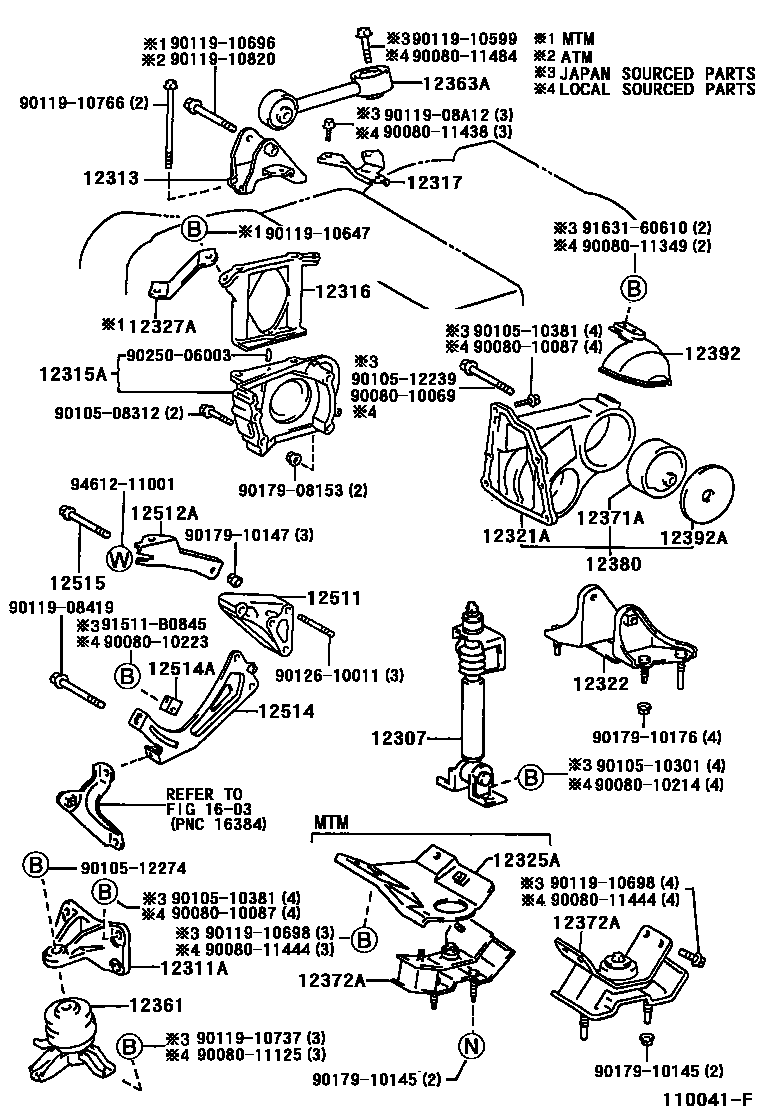

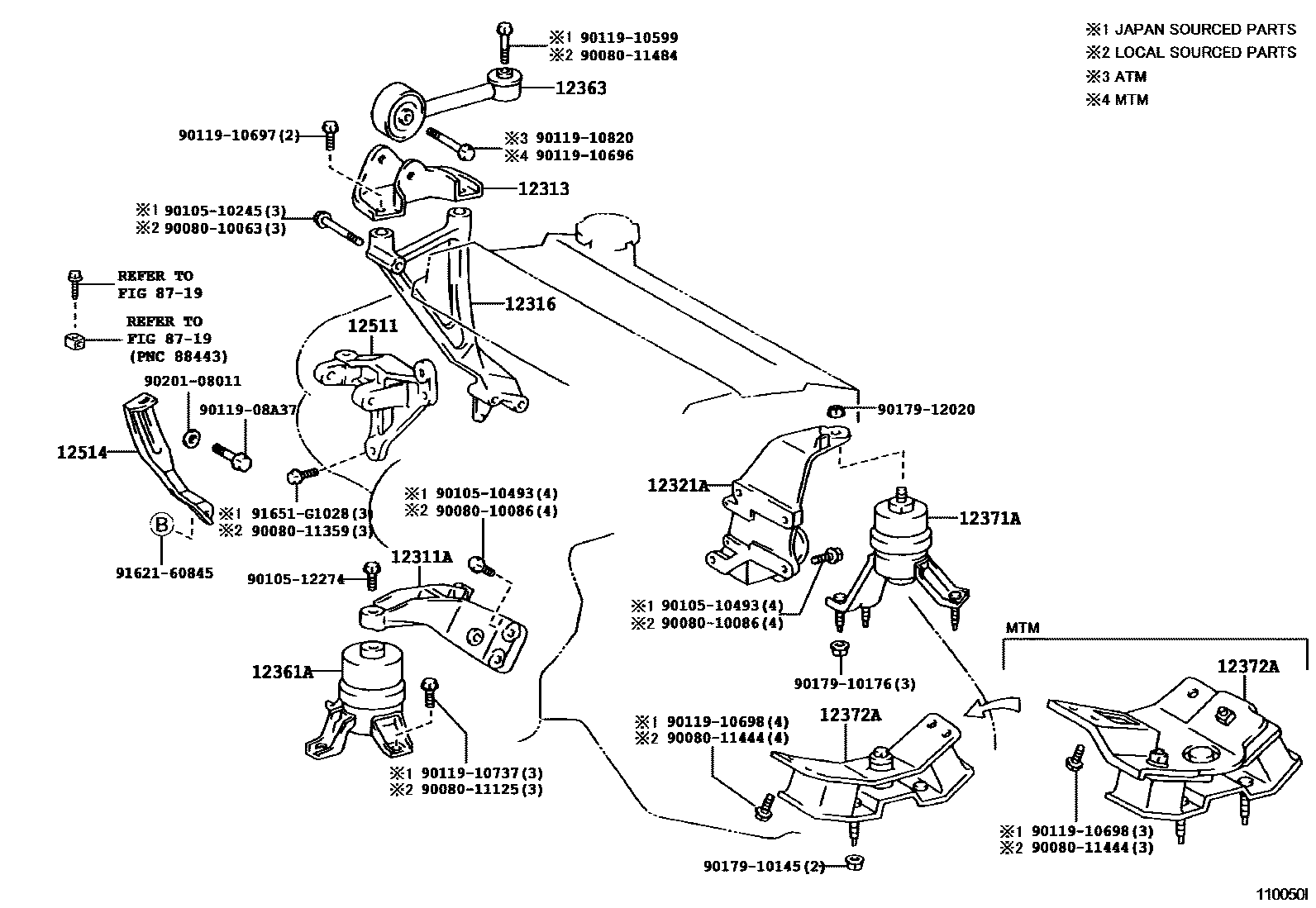

Toyota CAMRY EPC diagram 1107, Engine Mounting, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12307 | Engine mount damper sub-assembly | 12307-20020 · 12307-20021 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0A020 · 12311-0A040 · 12311-20040 · 12311-74220 · 12311-74230 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-03020 · 12313-03040 · 12313-0A010 · 12313-0A020 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0A010 · 12315-20020 |
| 12316 | Engine No. 2 right side suspension bracket | 12316-0A010 · 12316-74130 |
| 12317 | Engine right mounting bracket | 12317-0A010 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-0A020 · 12321-20020 · 12321-20030 · 12321-74250 · 12321-74380 |
| 12322 | Engine No. 2 rear suspension bracket | 12322-0A010 · 12322-20020 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-62030 |
| 12327A | Engine No. 2 right side mounting bracket | 12327-20020 |
| 12361 | Engine front mounting vibration isolation pad | 12361-0A020 · 12361-0A030 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-03060 · 12361-74241 |
| 12363 | Engine center mount vibration isolation pad | 12363-03070 · 12363-03080 |
| 12363A | Engine movement control lever | 12363-0A020 · 12363-0A030 |
| 12371A | Engine rear mount vibration isolation pad | 12371-03070 · 12371-0A020 · 12371-62050 · 12371-74301 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-03030 · 12372-03080 · 12372-0A020 · 12372-62070 |
| 12380 | Engine rear mount vibration isolation pad assembly | 12380-0A030 · 12380-0A031 · 12380-20020 |
| 12392 | Engine left front mounting heat insulation pad | 12392-07010 |
| 12392A | Engine rear mounting heat insulation pad | 12392-62030 |
| 12511 | No. 1 generator bracket | 12511-20020 · 12511-74100 |
| 12512A | No. 2 generator bracket | 12512-20010 · 12512-20020 |
| 12514 | Generator belt adjustment lever | 12514-03030 · 12514-0A010 · 12514-20010 · 12514-74050 · 12514-74051 |
| 12514A | Fan belt adjustment slider | 16385-20010 |
| 12515 | Generator through bolts | 12515-0A010 · 12515-20010 |
