Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

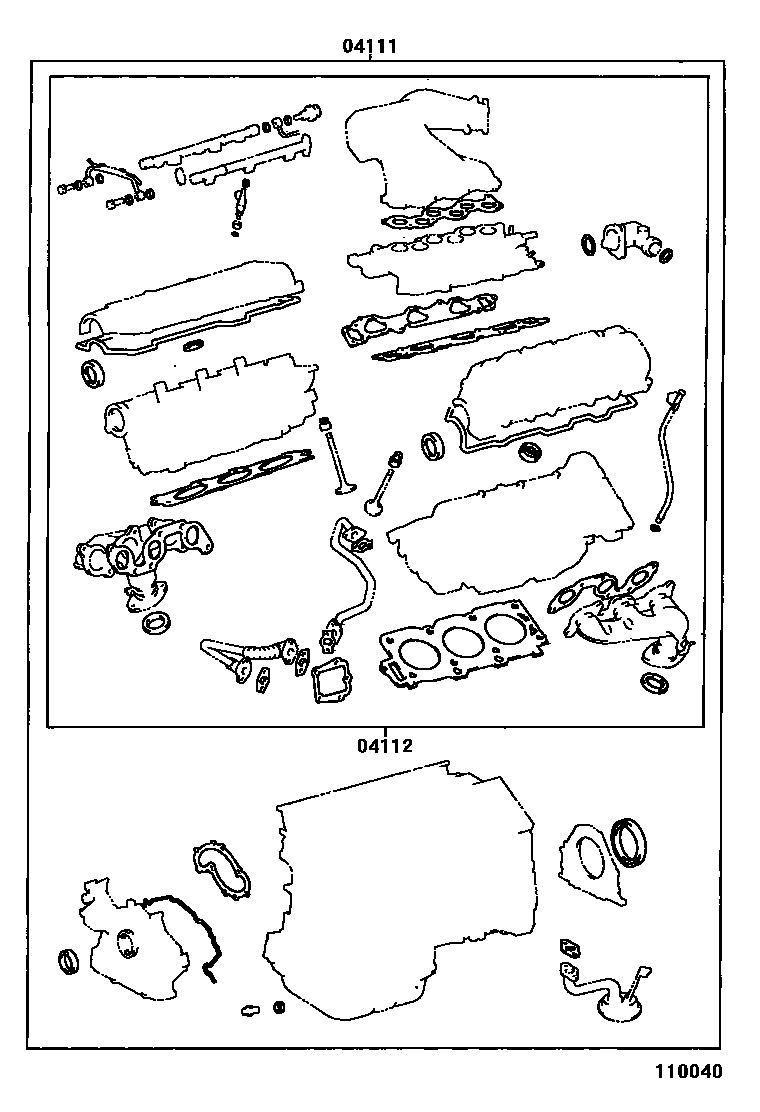

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 110040
Engine Overhaul Gasket Kit — 110040 (199607 – 199908)

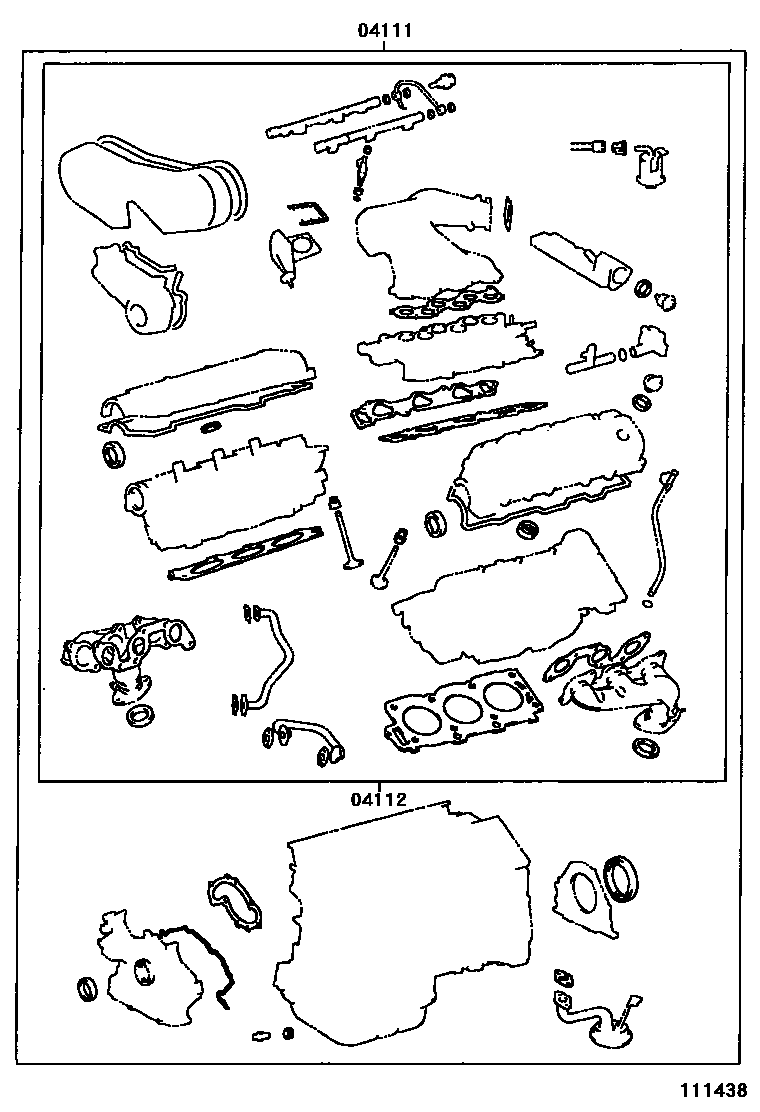

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 111438
Engine Overhaul Gasket Kit — 111438 (199908 – 999999)

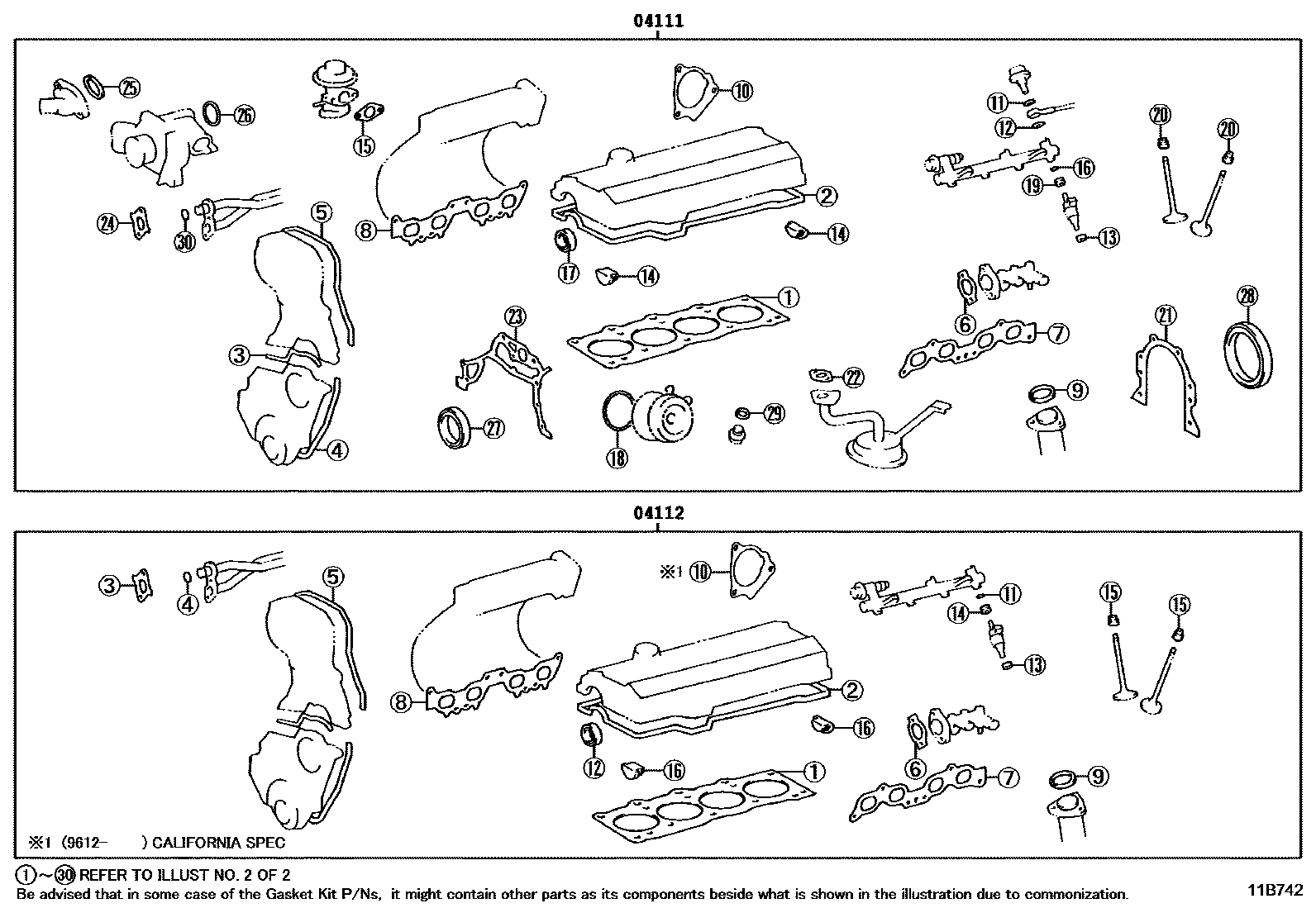

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11B742
Engine Overhaul Gasket Kit — 11B742 (199607 – 999999)

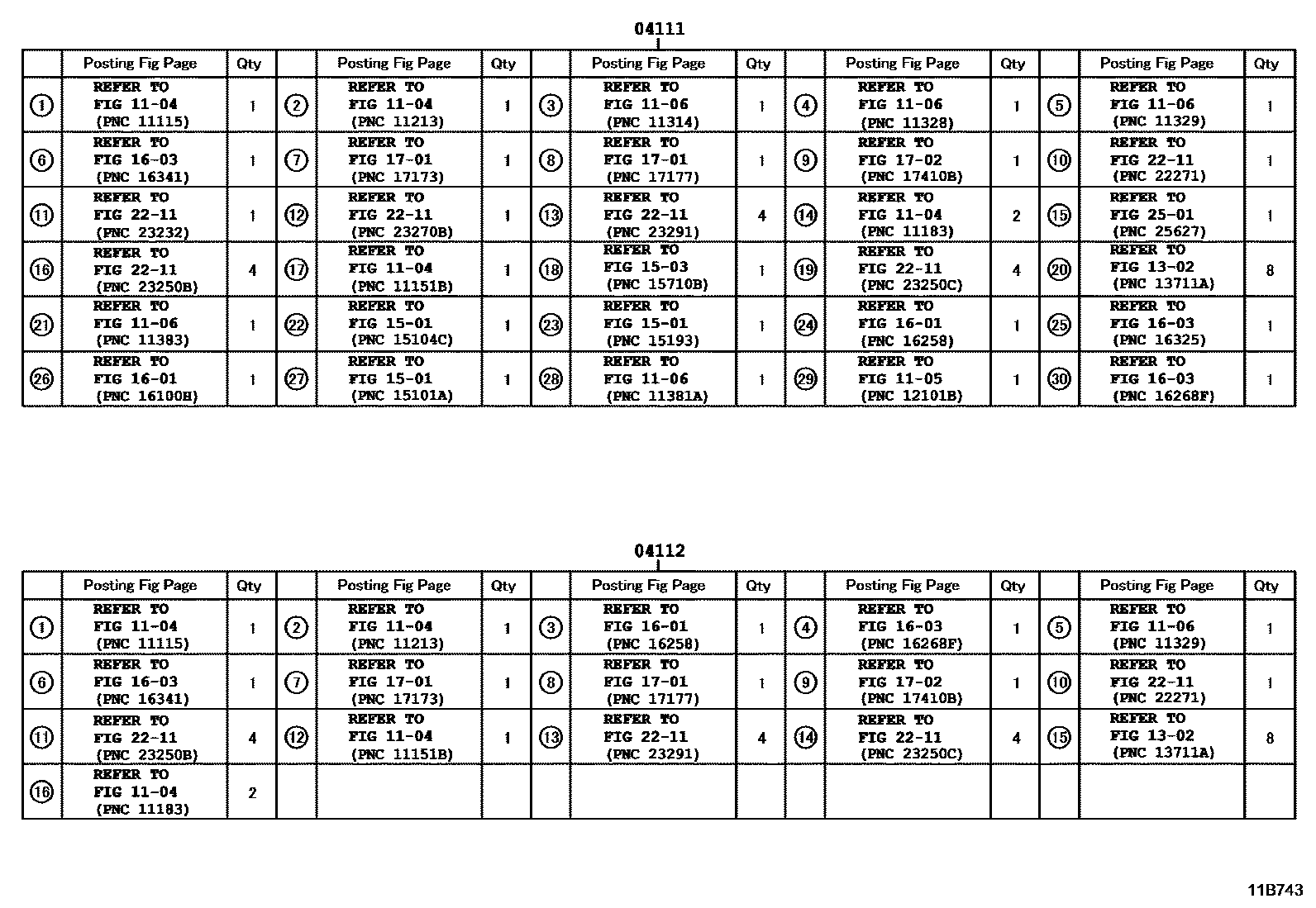

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11B743
Engine Overhaul Gasket Kit — 11B743 (199607 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-07010 · 04111-07011 · 04111-0A010 · 04111-20040 · 04111-20041 · 04111-20070 · 04111-20071 · 04111-20080 · 04111-20081 · 04111-74640 · 04111-74641 · 04111-74650 · 04111-74651
04112Engine valve grinding pad assembly04112-07010 · 04112-07011 · 04112-0A010 · 04112-20030 · 04112-20031 · 04112-20060 · 04112-20061 · 04112-20070 · 04112-20071 · 04112-74580 · 04112-74581 · 04112-74600 · 04112-74790
