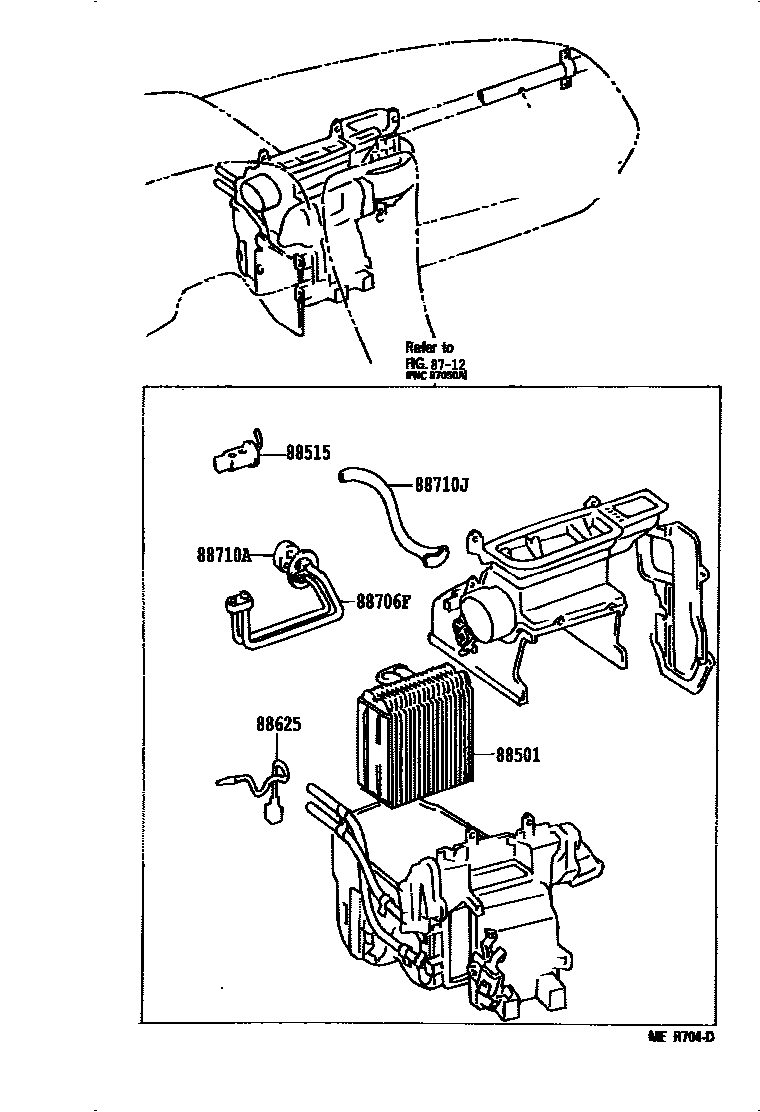

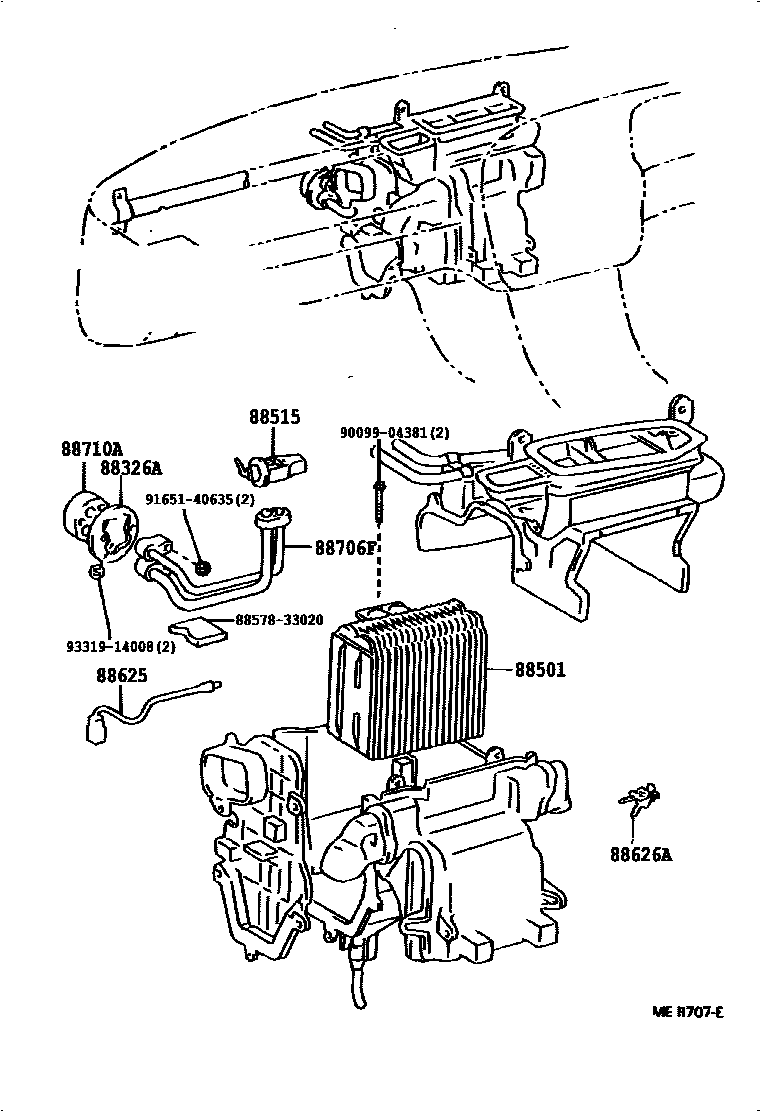

Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88326A | Cover plate | 88326-33030 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-06010 · 88501-06020 · 88501-06021 · 88501-33010 · 88501-33040 · 88501-33070 |
| 88515 | Cooler expansion valve | 88515-06010 · 88515-06020 · 88515-06030 · 88515-14061 · 88515-14062 · 88515-20100 · 88515-33010 |
| 88625 | Cooler No. 1 Thermistor | 88625-06010 · 88625-33070 |
| 88626A | Thermistor mount | 88626-33010 |
| 88706F | Liquid pipe F sub-assembly | 88706-33020 · 88716-33140 |
| 88710A | Air conditioning pipe assembly | 88710-33010 · 88710-33070 |
| 88710J | air conditioning connector tube | 88710-33090 |
