Toyota CAMRY 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

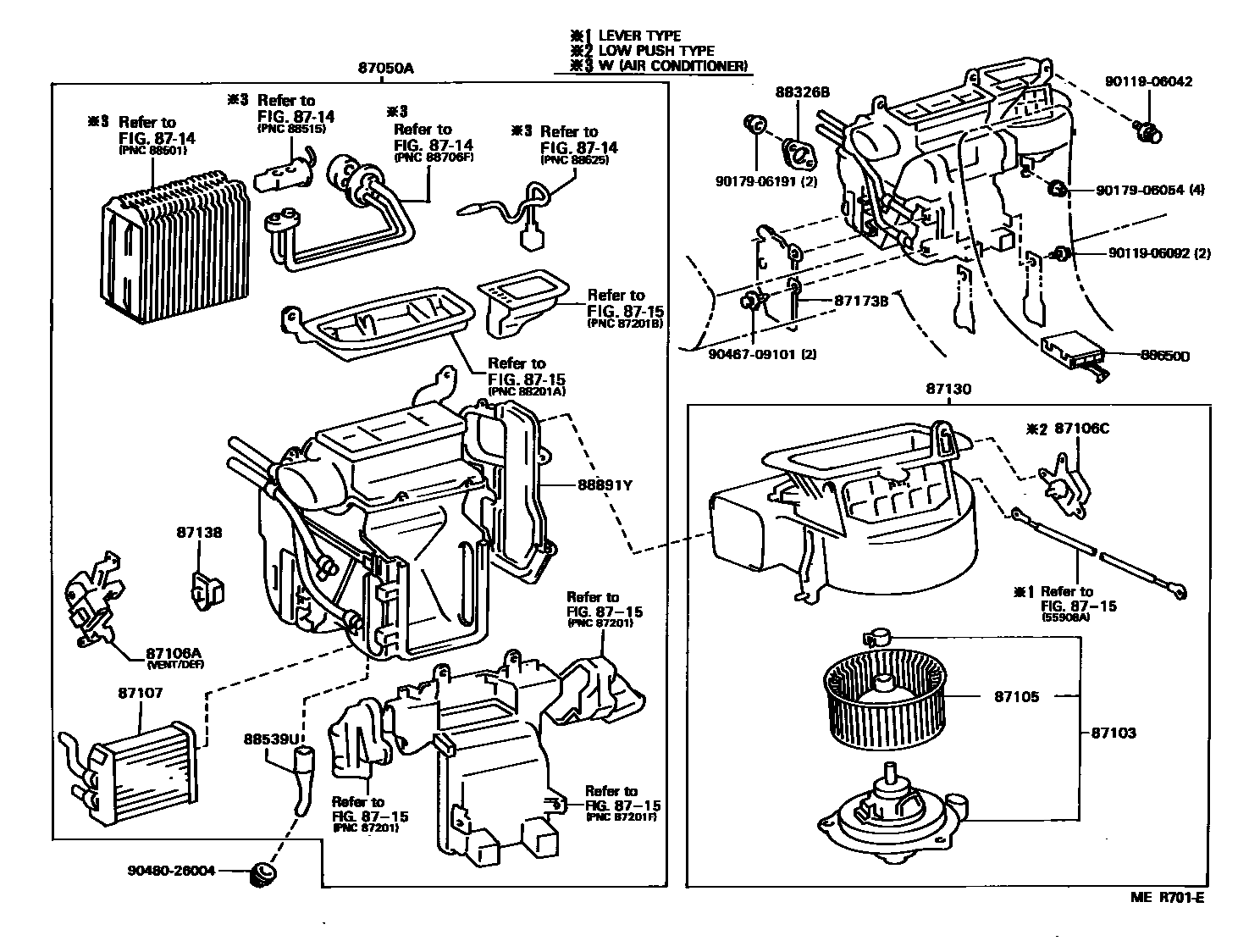

Toyota CAMRY EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050A | Air conditioning radiator assembly | 87050-06010 · 87050-06020 · 87050-06030 · 87050-06040 · 87050-06090 · 87050-06100 · 87050-06110 |
| 87103 | Heater blower motor sub-assembly with fan | 87103-06010 · 87103-06011 |
| 87105 | Heater blower fan sub-assembly | 87105-06010 |
| 87106A | Damper servo mechanism sub-assembly | 87106-06010 |
| 87106C | Damper servo mechanism sub-assembly (for blower) | 87106-06030 |
| 87107 | Heater radiator device sub-assembly | 87107-06010 |
| 87130 | Front heater blower assembly | 87130-06010 · 87130-06020 · 87130-06030 |
| 87138 | Heater Blower Resistor | 87138-06010 · 87138-06020 |
| 87173B | Heater protection device | 87173-06010 |
| 88326B | Cover plate | 88326-06010 · 88326-06020 |
| 88539U | Cooler drain hose | 88539-06010 |
| 88650D | amplifier assembly | 88650-06010 · 88650-06020 · 88650-06030 · 88650-06040 · 88650-33010 · 88650-33020 · 88650-33040 · 88650-33041 · 88650-33050 |
| 88891Y | Cooler cover No. 1 | 88891-06010 · 88891-33030 |
