Toyota CAMRY antenna — Figure 8604

Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 7 PNC and OE references.

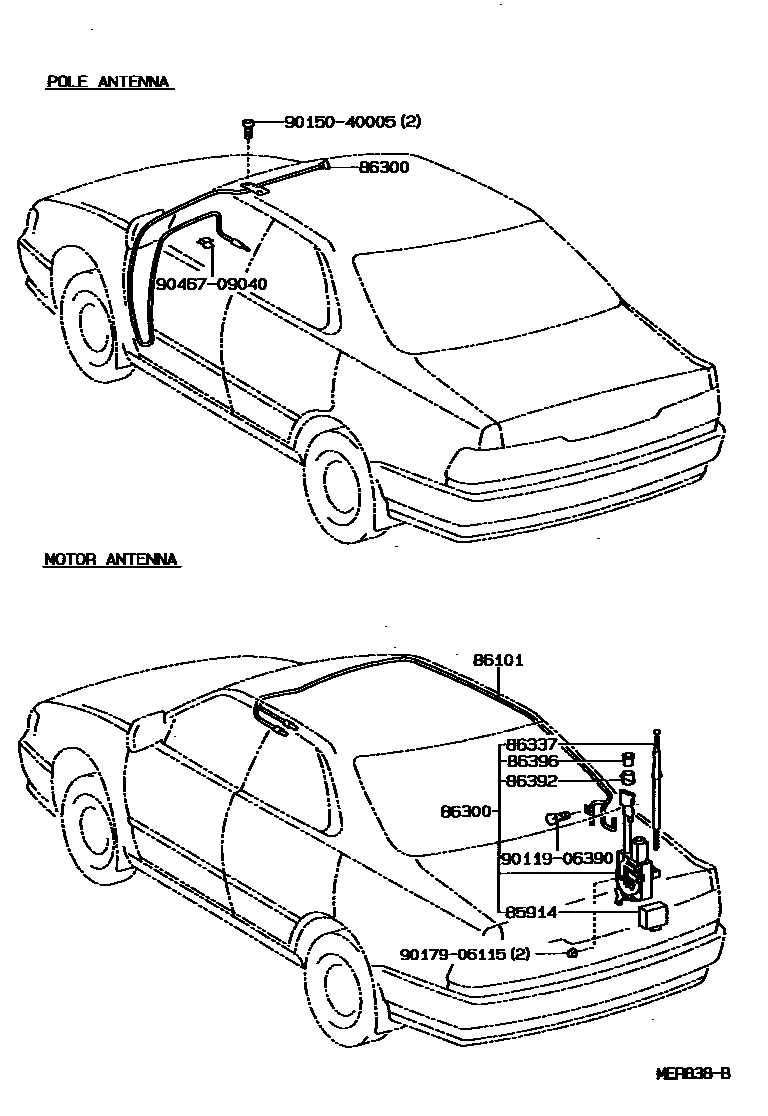

Toyota CAMRY antenna EPC diagram — MER838B
antenna — MER838B (199109 – 199608)

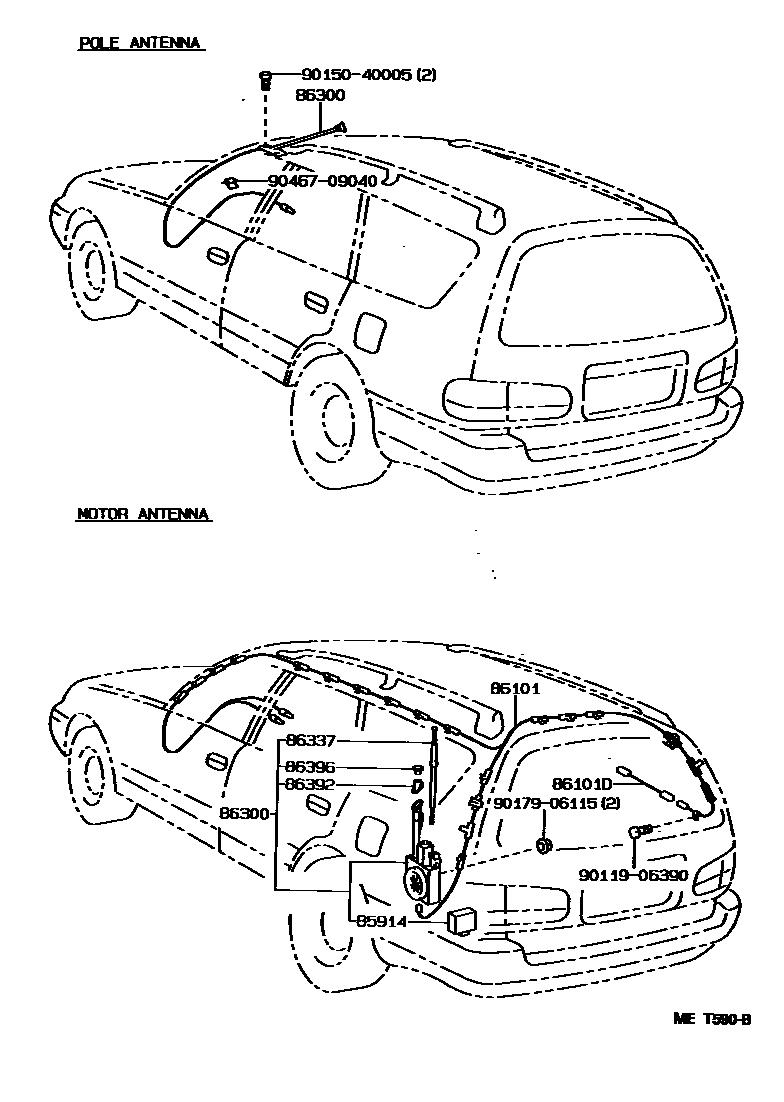

Toyota CAMRY antenna EPC diagram — MET590B
antenna — MET590B (199203 – 199608)

PNC and OE references

PNCPart nameOE numbers
85914Electric antenna control relay85914-06010 · 85914-06020 · 85914-AC010
86101Antenna wire sub-assembly86101-06010 · 86101-06020 · 86101-06030 · 86101-06040 · 86101-06090 · 86101-06100 · 86101-06110 · 86101-06120 · 86101-AA010 · 86101-AA020 · 86101-AA030 · 86101-AA040
86101DNo. 3 antenna wire sub-assembly86101-06130
86300Antenna assembly with fixing parts86300-06010 · 86300-06020 · 86300-06021 · 86300-06040 · 86300-06041
86337Sealing rods and sealing tubes with cables86337-06010 · 86337-06020
86392Antenna decorative parts86392-06020 · 86392-06040
86396Antenna nut86396-06010
