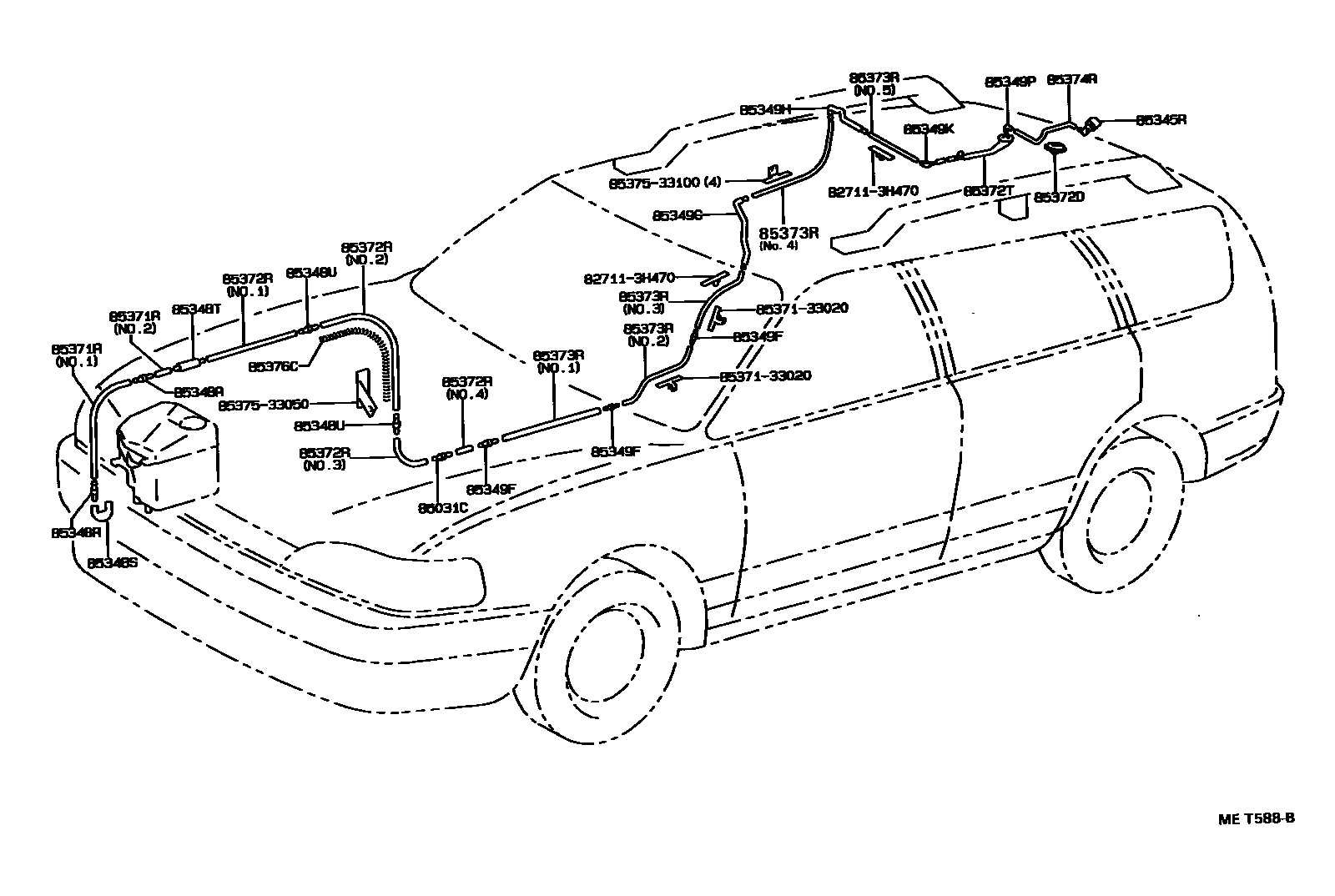

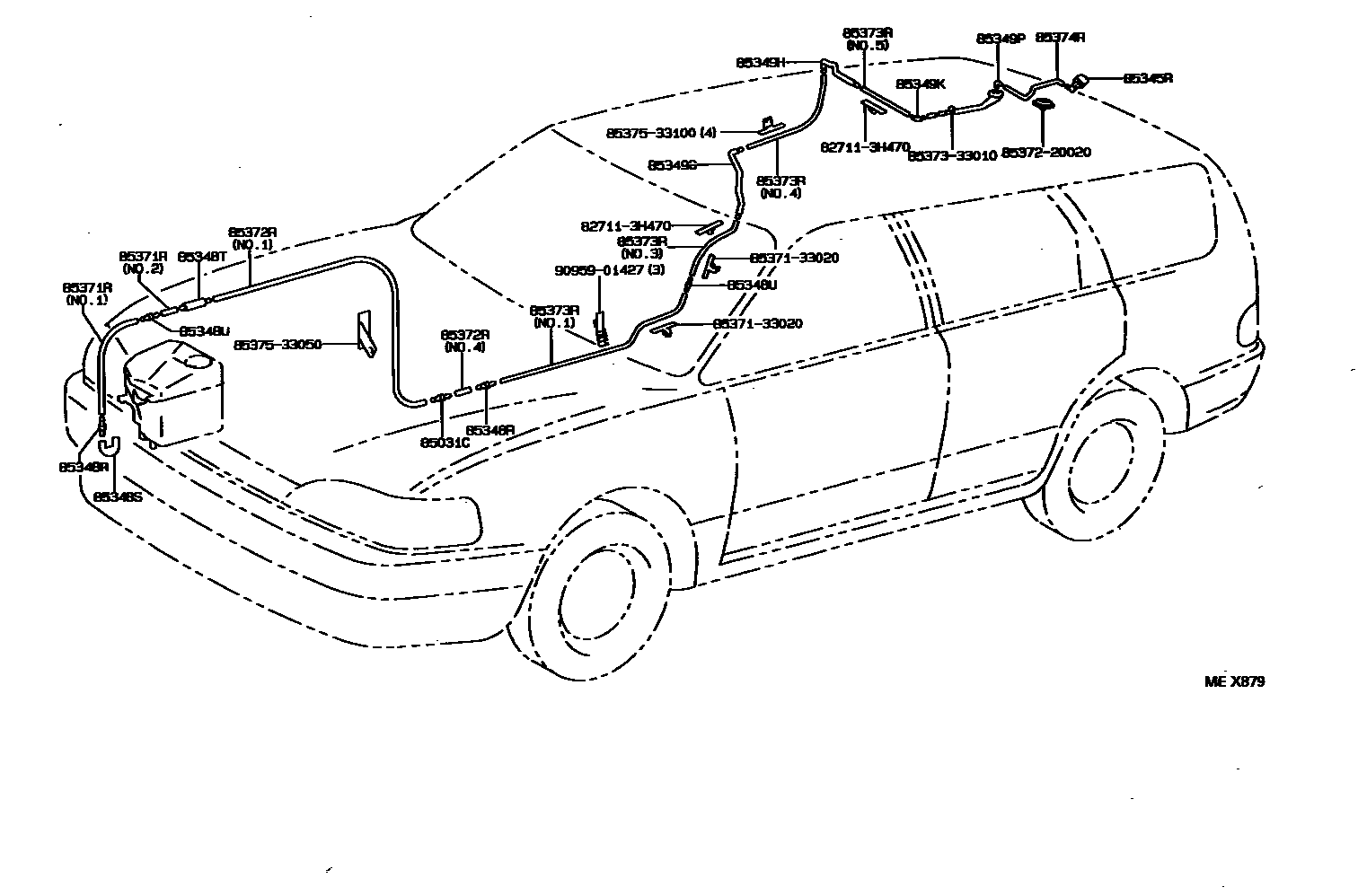

Toyota CAMRY 后清洗器 — Figure 8504
Toyota CAMRY EPC diagram 8504, 后清洗器, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031C | Cleaner valve sub-assembly | 85031-90A00 |
| 85345R | Rear washer nozzle | 85395-33010 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-14481 · 85375-33040 |
| 85348T | No. 2 rear washer hose connector | 85349-32150 |
| 85348U | No. 3 rear washer hose connector | 85349-89122 |
| 85349F | No. 1 rear washer hose connector | 85349-89122 |
| 85349G | No. 2 rear washer hose connector | 85376-33100 |
| 85349H | No. 3 rear washer hose connector | 85377-33100 |
| 85349K | No. 2 rear cleaner elbow joint | 85355-20200 |
| 85349P | No. 3 rear cleaner elbow joint | 85355-20200 |
| 85371R | Rear washer hose (from motor to connector) | 85379-32240 · 90446-07001 |
| 85372D | Rear washer hose seal | 85372-20020 |
| 85372R | Rear washer hose (from fitting to fitting or nozzle) | 90099-33080 · 90446-07001 |
| 85372T | Cleaner seal | 85373-33010 |
| 85373R | Rear washer hose (from connector to nozzle) | 90099-33496 · 90099-33656 · 90099-59053 · 90446-07001 · 90446-07011 |
| 85374R | Rear washer hose (from connector to nozzle) | 90099-33080 |
| 85376C | washer hose spring | 85376-33050 |
