Toyota CAMRY 空气囊 — Figure 8421

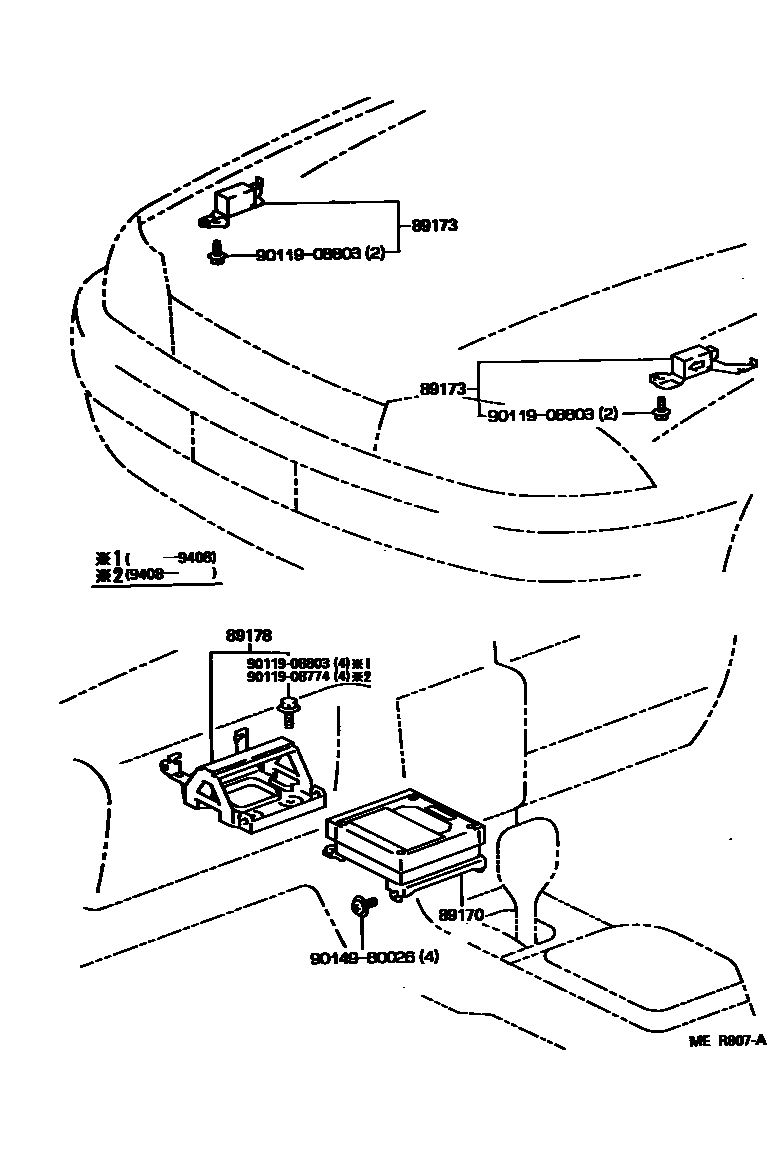

Toyota CAMRY EPC diagram 8421, 空气囊, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170 | air bag sensor assembly | 89170-06020 · 89170-33010 · 89170-33011 · 89170-33020 |
| 89173 | front airbag sensor | 89173-09010 · 89173-09020 · 89173-09050 · 89173-09060 |
| 89178 | No. 2 air bag holder | 89178-09010 · 89178-39015 |
