Toyota CAMRY 前转向灯 — Figure 8103

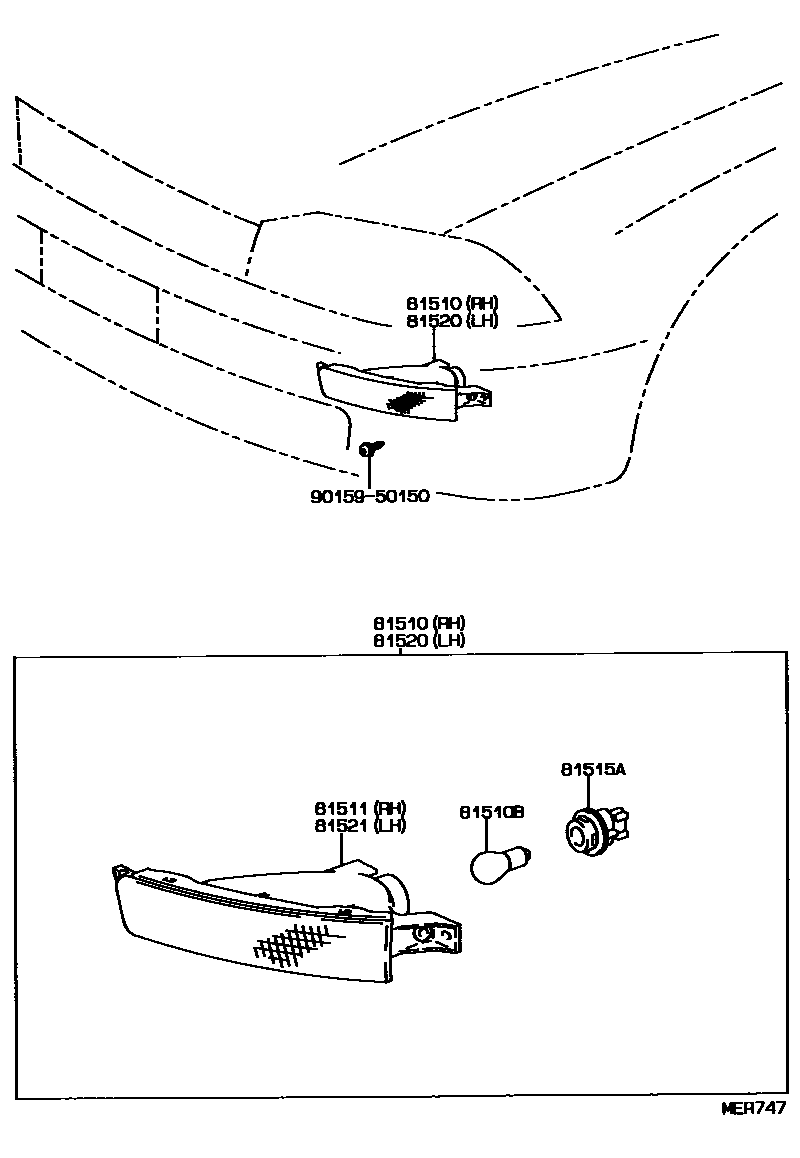

Toyota CAMRY EPC diagram 8103, 前转向灯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-06010 · 81510-06011 · 81510-06031 · 81510-06032 |
| 81510B | Bulb (for front turn signal lamp) | 99132-11270 |
| 81511 | Right front turn signal lamp cover | 81511-06010 · 81511-06020 · 81511-06030 |
| 81515A | Front turn signal light plug assembly | 81515-06010 |
| 81520 | Left front turn signal lamp assembly | 81520-06010 · 81520-06011 · 81520-06031 · 81520-06032 |
| 81521 | Left front turn signal lamp cover | 81521-06010 · 81521-06020 · 81521-06030 |
