Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

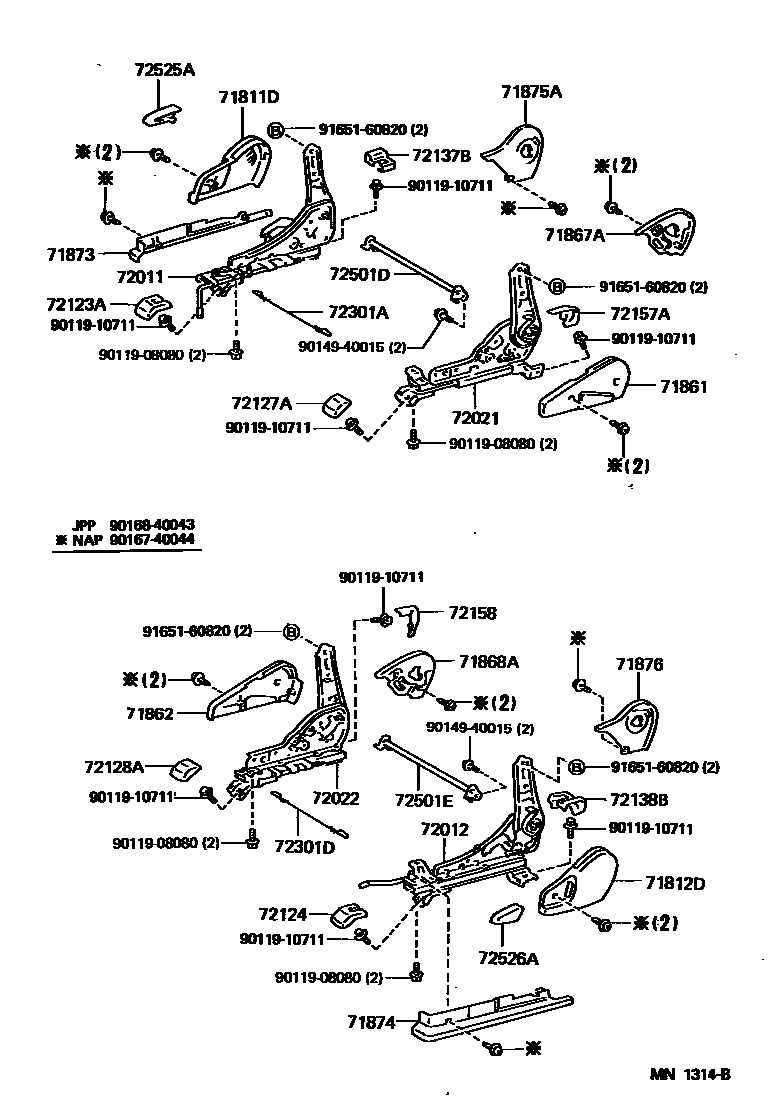

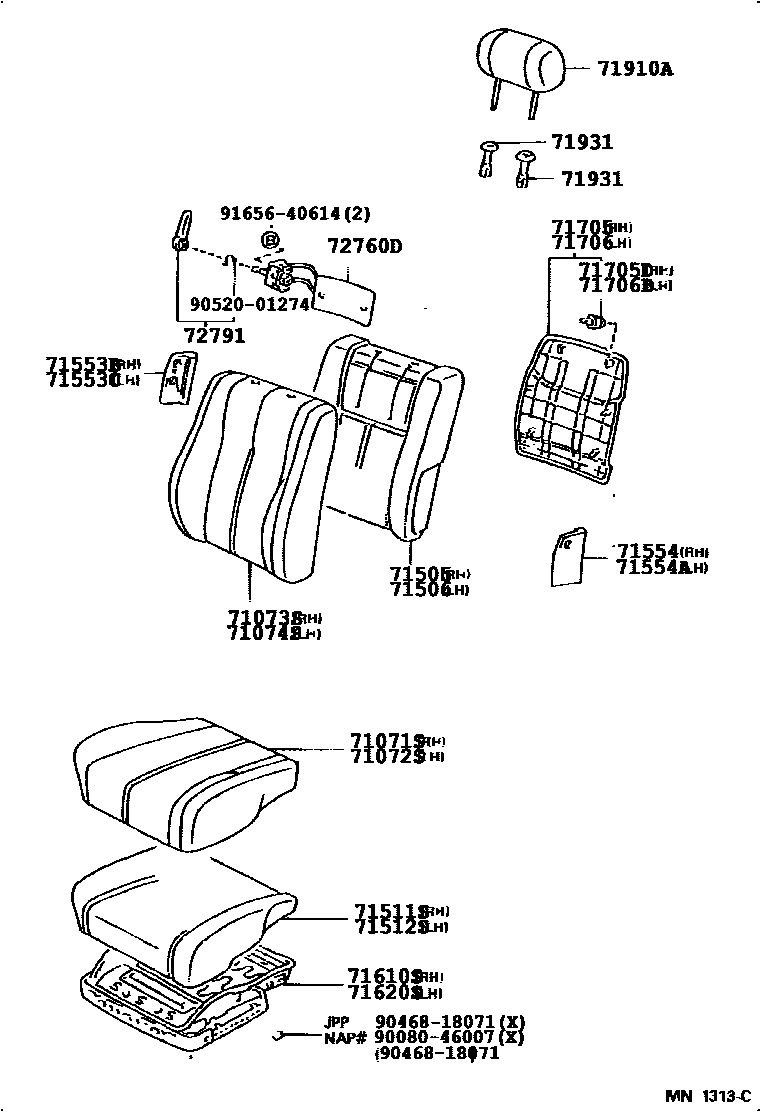

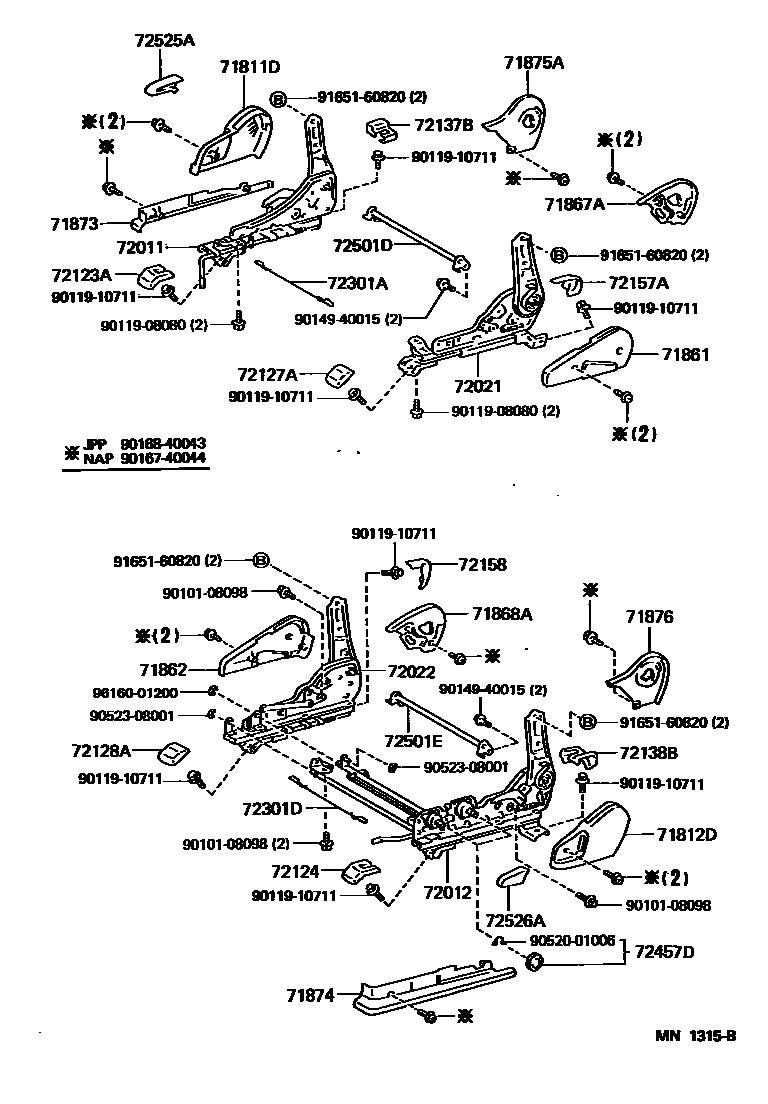

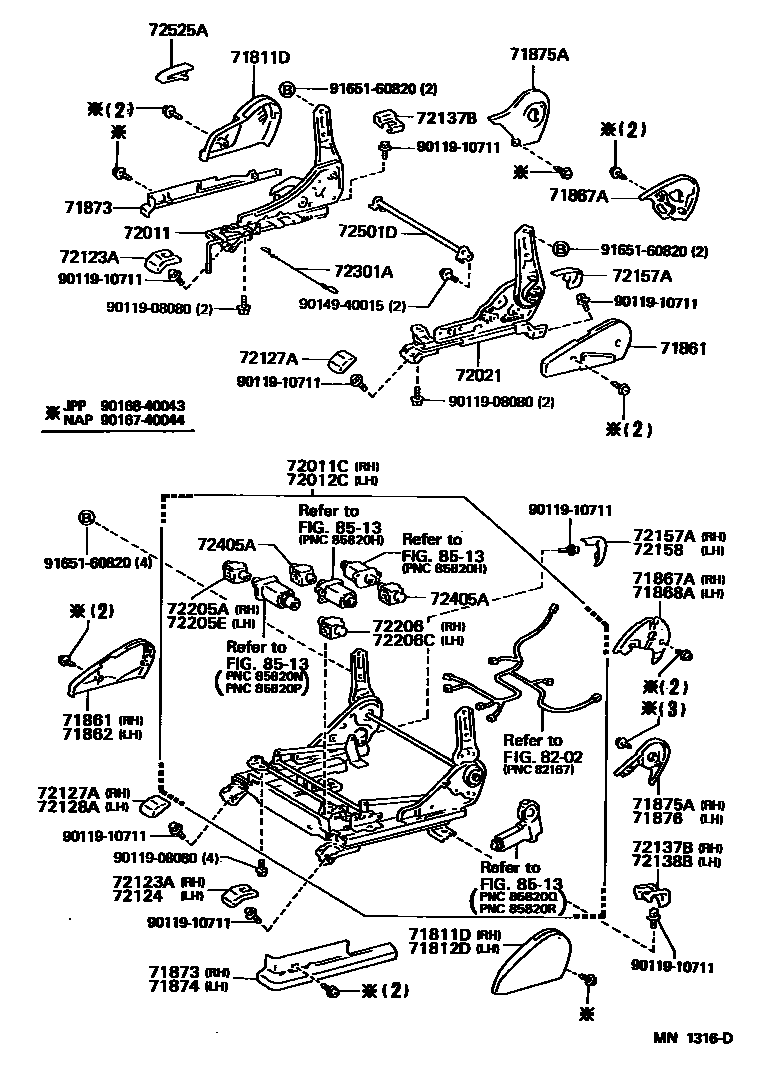

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71505 | Front right seat back cushion sub-assembly with frame | 71505-06010 · 71505-06030 · 71505-06050 · 71505-AA010 · 71505-AA030 · 71505-AA040 |
| 71506 | Front left seat back cushion sub-assembly with frame | 71505-06010 · 71505-06030 · 71505-06040 · 71505-06050 · 71505-AA030 · 71505-AA040 · 71506-06010 · 71506-06020 · 71506-06030 · 71506-AA010 · 71506-AA020 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-06010 · 71511-06020 · 71511-06030 · 71511-06050 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-06010 · 71511-06030 · 71512-06010 · 71512-06020 |
| 71553B | Front B seat back cushion | 71553-33010 · 71553-33020 · 71553-AA010 |
| 71553C | Front C seat back cushion | 71553-33010 · 71553-33020 · 71553-AA010 |
| 71554 | Front C seat back cushion | 71554-33010 · 71554-33020 · 71554-AA010 |
| 71554A | Front center seat back cushion | 71554-33010 · 71554-33020 · 71554-AA010 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-06010 · 71610-06030 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-06010 · 71620-06020 · 71620-06030 · 71620-AA010 |
| 71705D | Front seat back panel clip | 71769-32011 · 71769-33010 |
| 71706B | Front seat back panel clip | 71769-32011 · 71769-33010 |
| 72011 | Front right seat outer adjuster sub-assembly | 72011-06050 · 72011-06060 · 72011-33030 · 72011-33100 |
| 72011C | Front right seat adjuster sub-assembly | 72010-33140 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-06030 · 72012-06040 · 72012-06060 · 72012-33030 · 72012-33040 · 72012-33100 · 72012-33110 |
| 72012C | Front left seat adjuster sub-assembly | 72020-06010 · 72020-33010 · 72020-33060 · 72020-33080 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-06050 · 72021-06060 · 72021-33030 · 72021-33100 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-06030 · 72022-06040 · 72022-06060 · 72022-33030 · 72022-33040 · 72022-33100 · 72022-33110 |
| 72205A | No. 1 electric seat shell sub-assembly | 72205-50020 |
| 72205E | No. 1 electric seat shell sub-assembly | 72205-50020 |
| 72206 | No. 2 electric seat shell sub-assembly | 72206-22020 |
| 72206C | No. 2 electric seat shell sub-assembly | 72206-22020 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-06050 · 72301-07020 · 72301-33020 |
| 72301D | Left seat slide rail balance harness sub-assembly | 72301-07010 · 72301-07020 · 72301-33010 · 72301-33020 |
| 72405A | Front vertical seat shell sub-assembly | 72405-24020 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72345-06030 · 72345-33020 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72345-06030 · 72345-33020 |
| 72760D | Left lumbar support adjuster assembly | 72760-33010 |
