Toyota CAMRY 背门板和背门玻璃 — Figure 6708

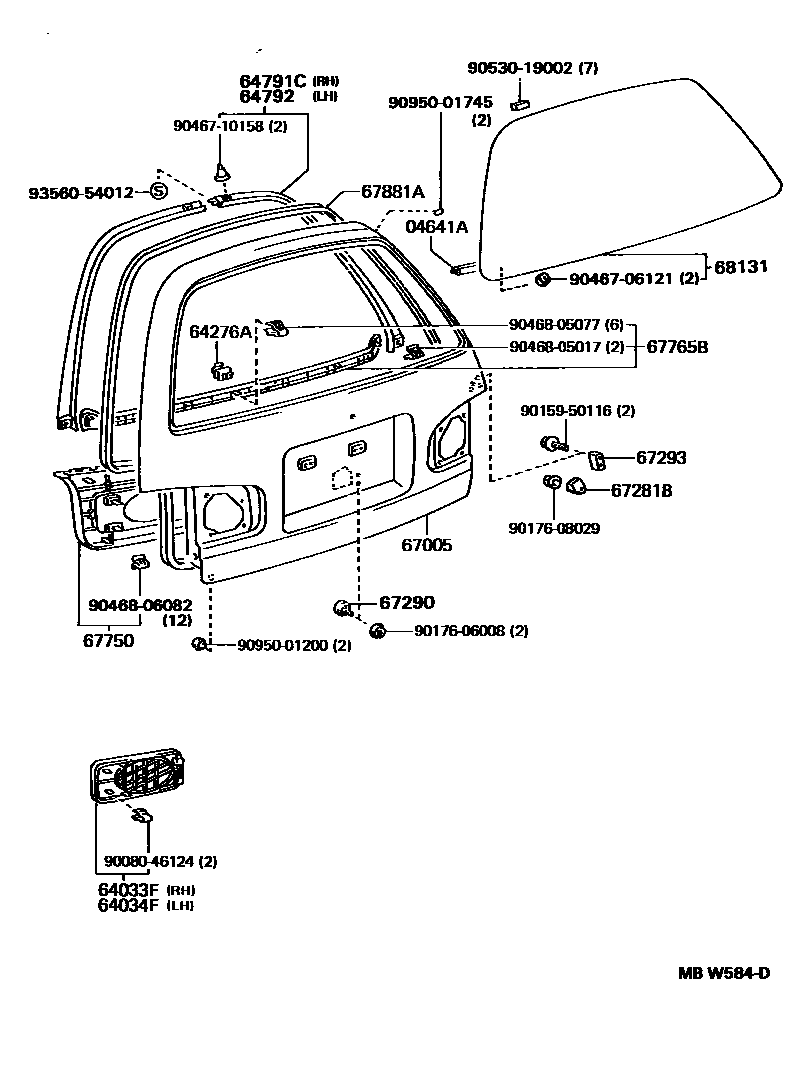

Toyota CAMRY EPC diagram 6708, 背门板和背门玻璃, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641A | Rear window glass adhesive sealing strip assembly | 04562-12010 |
| 64276A | Upper back panel decorative panel bracket | 64276-33010 |
| 67005 | Rear door panel sub-assembly | 67005-06040 · 67005-06050 |
| 67281B | Back door lower block | 67281-06010 |
| 67290 | Back door shock absorber assembly | 67290-13020 |
| 67293 | Back door lower block cushion | 67293-33010 · 67294-33010 |
| 67881A | Back door seal | 67881-06010 |
| 68131 | back door glass | 68131-06020 · 68131-06030 |
