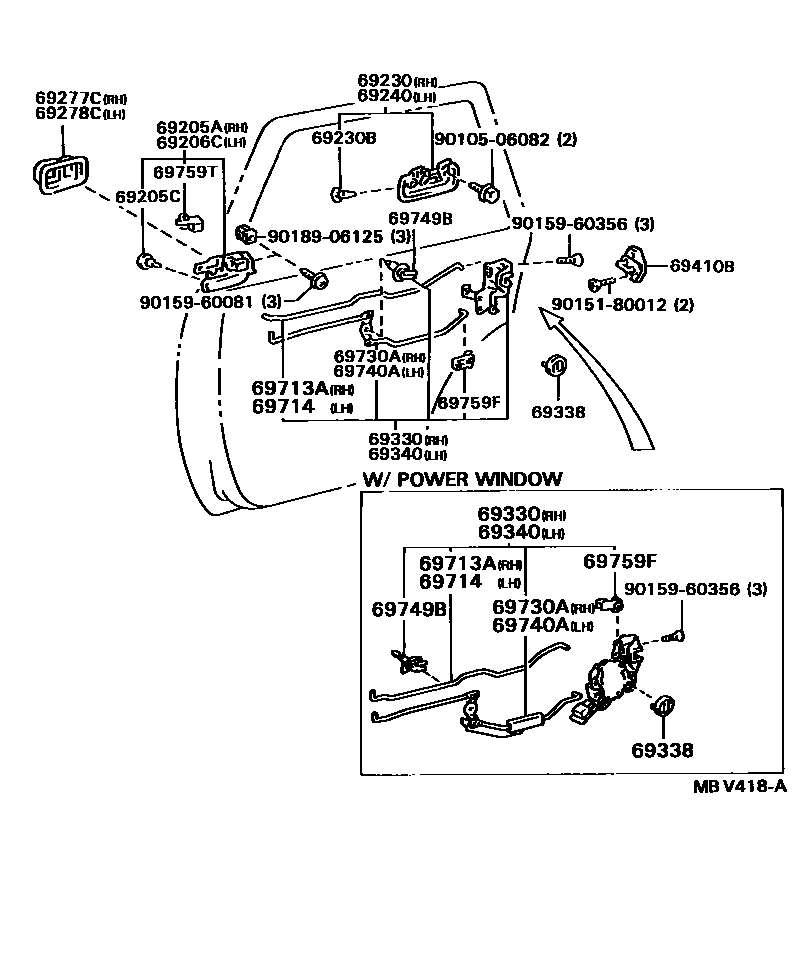

Toyota CAMRY 后门锁和后门把手 — Figure 6706
Toyota CAMRY EPC diagram 6706, 后门锁和后门把手, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69205C | Cushion pad (for rear door inner handle) | 90080-54005 · 90541-04014 |
| 69230 | Right rear door outer handle assembly | 69230-06010 · 69230-33010 |
| 69230B | Cushion pad (for rear door outer handle) | 90080-54005 · 90541-04014 |
| 69240 | Left rear door outer handle assembly | 69240-06010 · 69240-33010 |
| 69330 | Right rear door door lock assembly | 69050-06010 · 69330-06010 |
| 69338 | Child restraint lock lever knob | 69338-32010 |
| 69340 | Left rear door lock assembly | 69060-06010 · 69340-06010 |
| 69410B | Rear door lock plate assembly | 69410-87001 |
| 69713A | Right rear door lock remote control lever | 69713-06010 |
| 69714 | Left rear door lock remote control lever | 69714-06010 |
| 69730A | Right rear door door lock control link assembly | 69730-06010 |
| 69740A | Left rear door lock control link assembly | 69740-06010 |
| 69749B | Rear door lock link clamp | 69749-32030 |
| 69759F | Rear door lock control link buckle | 69759-24050 · 69759-24060 |
| 69759T | Rear door inner handle buckle | 69759-03020 · 69759-06030 · 69759-14050 · 69759-24070 |
